Woodworking Machinery Automatic 1325 Wood MDF Door Atc CNC Milling Drilling Cutting Carving Engraving Engraver Router Nesting Machine for Wood Cabinet Making
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- After-sales Service：Online
- Warranty：24 Months
- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：220V
Base Info
- Model NO.：LT-1325
- Model：1325
- Working Area：1300(X)*2500(Y)*200(Z)mm
- Machine Structure：Cast Iron Vertical Shafts and Steel Gantry
- Table Surface：Aluminum T-Slot Table with PVC,Vacuum Table
- Spindle：Water Cooling Spindle,Air Cooling Spindle
- Spindle Rotating Speed：0-24000rpm,Min
- Guide Rail：Hiwin Linear Square Guide Rail
- Power：3.0kw,4.5kw,5.5kw
- Driving Method：X, Y by Helicia Gear Rack ;Z by Ball Screw
- Motors：Servo,Stepper Motor
- Drivers：Leadshine Drivers Ma860h
- Control System：Ncstudio,Mach3,DSP
- Invert：Fuling Invert
- Standard Software：Artcam2010
- Optional：Rotary Axis

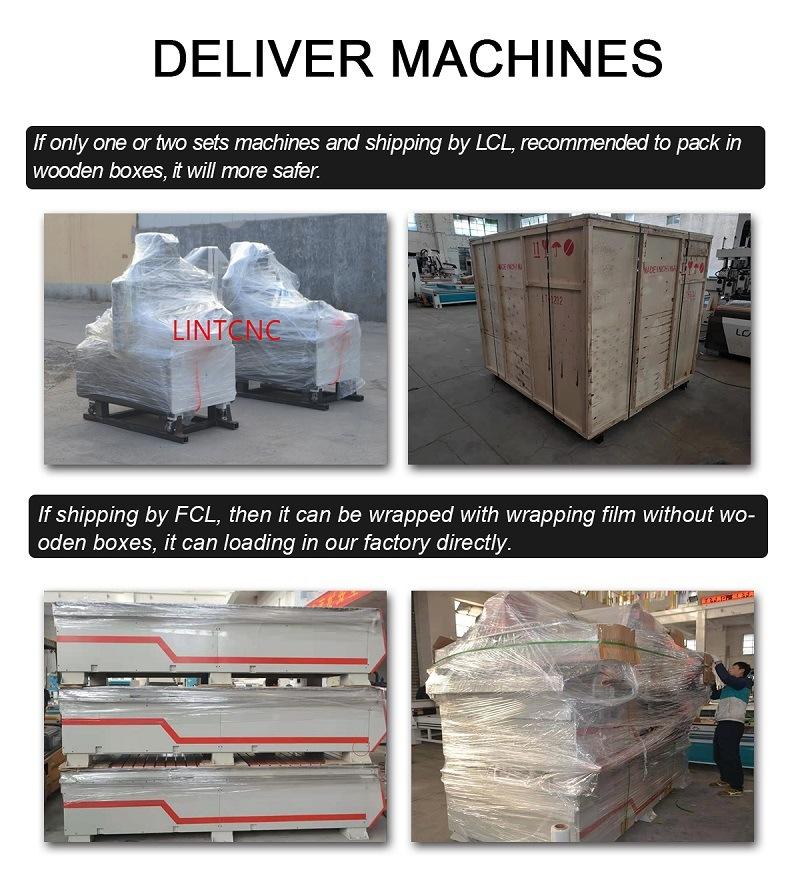

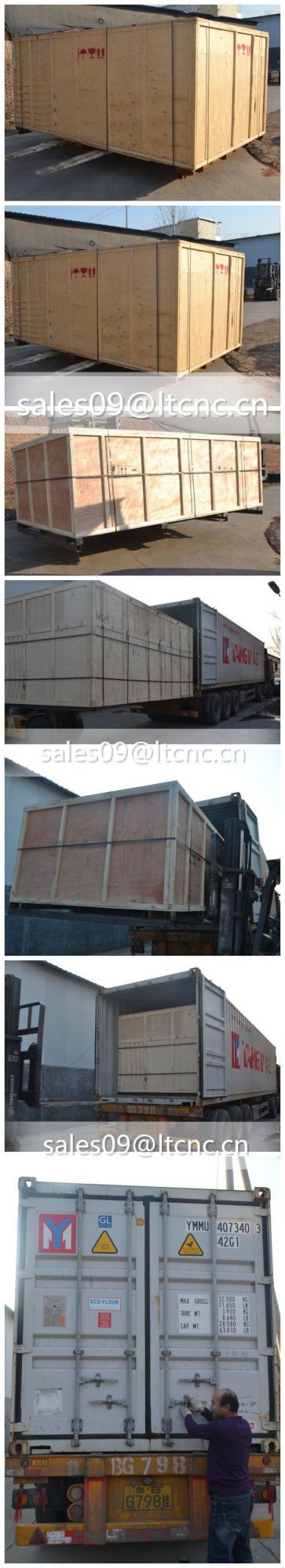

- Transport Package：One Plywood Case
- Specification：3300*1950*1950mm
- Trademark：LINTCNC
- Origin：China
- HS Code：8465990000
- Production Capacity：400
Description

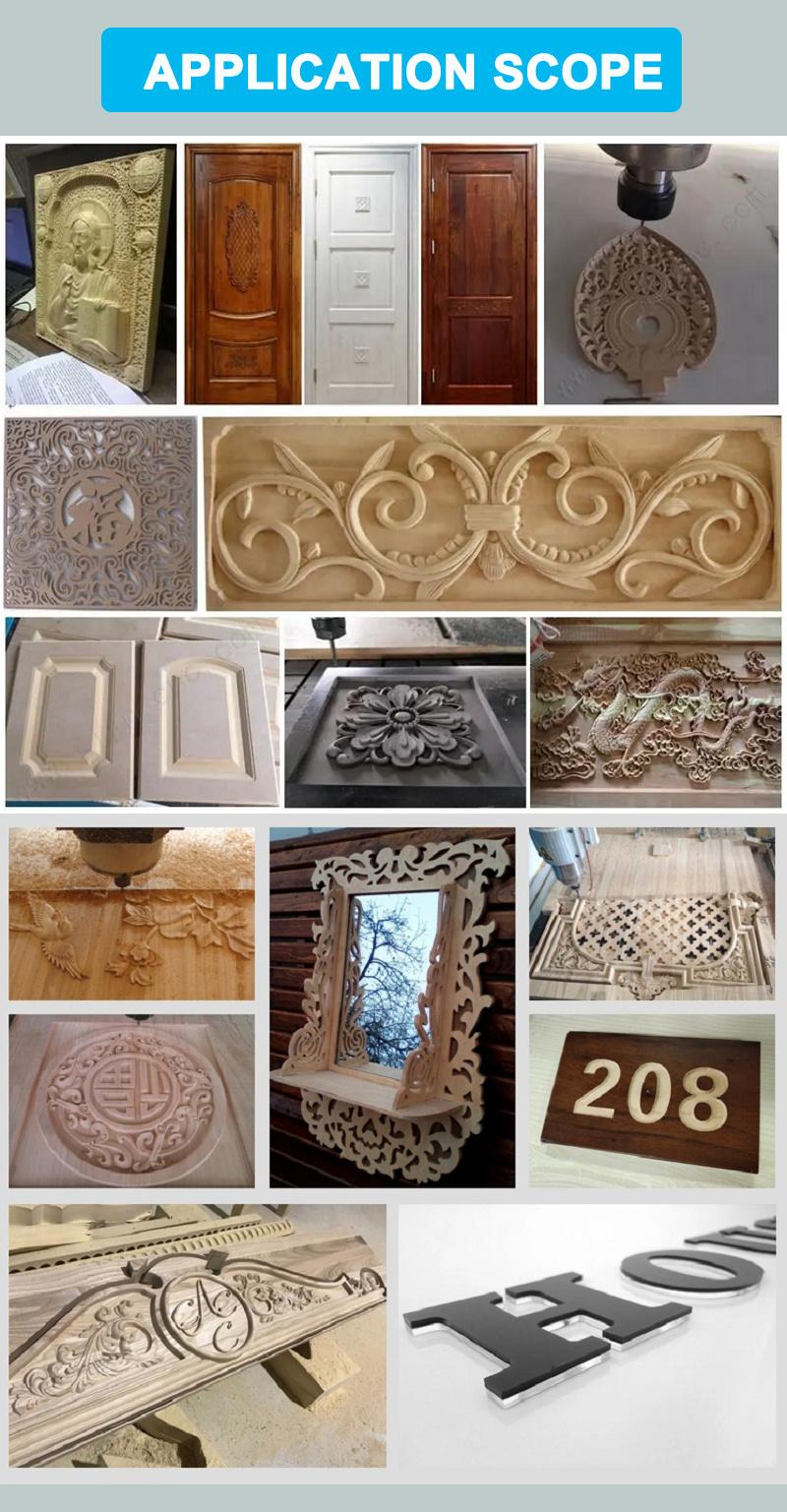

Application
Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on
Advertisement: engraving and cutting various labels and number plate. Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materialswood, aluminum bord, brass board, plastic, density board, MDF board, wave board, PVC,
acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Service for CNC Router
1.Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine.
3. 18 months warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our
technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are nglish manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or kype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, ls tell me the max working
area, materialsfor processing and the thickness for materials processing engraving
or cutting. Then perfect suitable router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine
have any problem.we will give you 24hours service from phone and kype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly,
please tell us your port name. There will be best shipping freight and machine price
send to you
5)Payment terms
a. 30% by T/T in advance,70% by T/T before shipping.
b. L/C is acceptable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
