• Model NO.：MZB73032
• Energy Saving：Energy Saving
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Transport Package：Wooden Box
• Specification：1700*850*1700mm
• Trademark：QDZD
• Origin：China
• Production Capacity：500sets,Year

Basic Info.

Model NO. MZB73032 Energy Saving Energy Saving Warranty 1 Year Customized Customized Condition New Transport Package Wooden Box Specification 1700*850*1700mm Trademark QDZD Origin China Production Capacity 500sets/Year

Product Description

hinge drilling machine wood boring machine for cabinet door



Specification

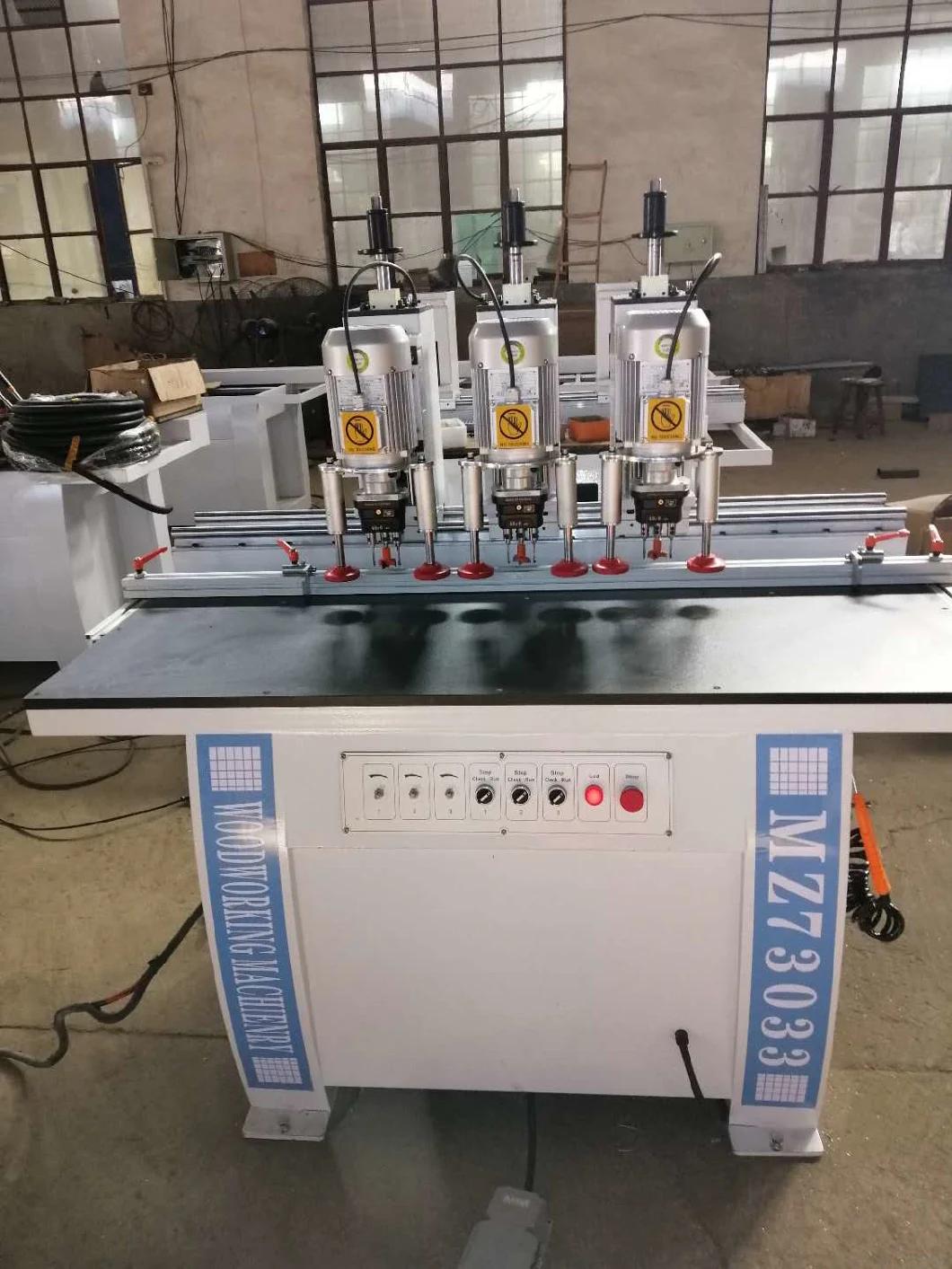

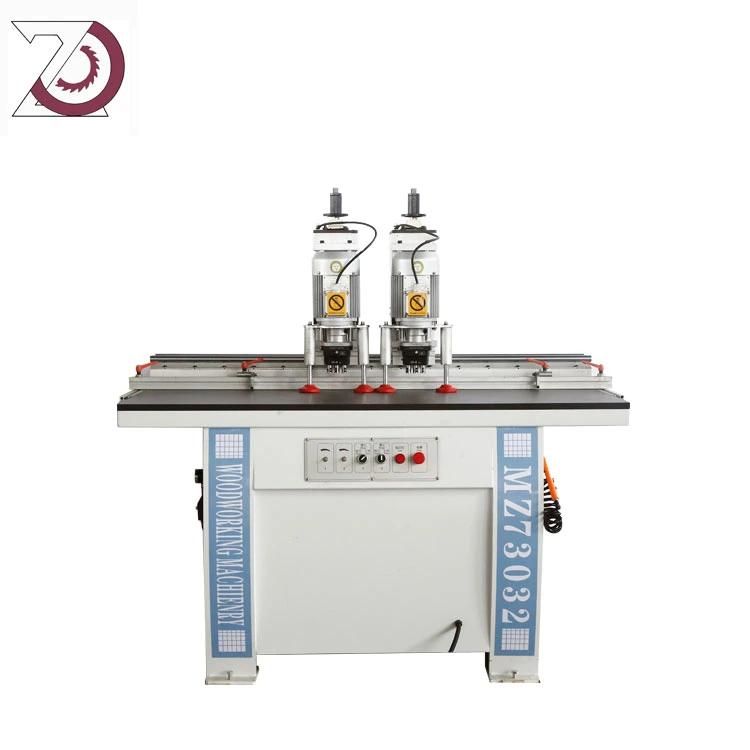

Type	MZB73032	MZB73033
Max drilling diameter	35 mm	35 mm
Max drilling depth	60 mm	60 mm
Distance between 2 heads	185-870 mm	185-1400 mm
Number of spindles	3spindle*2heads	3spindle*3heads
Rotating speed	2840 r/min	2840 r/m
Motor power	1.5kw * 2	1.5kw * 3
Pneumatic pressure	0.6-0.8 Mpa	0.6-0.8 Mpa
Overall dimension	1300*1100*1700mm	1600*900*1700mm
Weight	400 kg	450 kg

Our Services:
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
* Welcome to visit our factory.

(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.

(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
