• Model NO.：CF420B
• Transport Package：Plywood Box
• Specification：112*82*107cm
• Trademark：chengda
• Origin：Shandong
• HS Code：8479820090
• Production Capacity：1000,Month

Basic Info.

Model NO. CF420B Transport Package Plywood Box Specification 112*82*107cm Trademark chengda Origin Shandong HS Code 8479820090 Production Capacity 1000/Month

Product Description

Working principle

The hammer mill is fixed with an engine and a power of RP-driven all kinds of different power.

After the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step by step. Then the crushed materials will be leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge. Finally, the powder material will be discharged down below and the air will be discharged upper.

Specifications

Model	Power	Capacity	N/G weight	Packing size	Qty in 20' container
CF158	2.2kw/3kw	100-500 kg/h	75/95 kg	48*58*63 cm	140 sets
CF198A	7.5hp gasoline	200-700 kg/h	120/140 kg	96*62*105 cm	40 sets
CF198B	4kw 380v	200-700 kg/h	120/140 kg	90*58*102 cm	46 stes
CF420A	15hp diesel	500-1200 kg/h	330/360 kg	147*73*109 cm	20 sets
CF420A	22hp diesel	800-1600 kg/h	350/390 kg	147*74*111 cm	20 sets
CF420B	7.5kw 380v	500-1200 kg/h	300/320 kg	112*82*107 cm	24 sets
CF420C	11kw 380v	800-1600 kg/h	330/360 kg	113*75*108 cm	26 sets
CF500A	55hp diesel	1000-3000 kg/h	800/840 kg	149*146*121 cm	10 sets
CF500B	22kw 380v	1000-2500 kg/h	600/630 kg	124*97*106 cm	18 sets

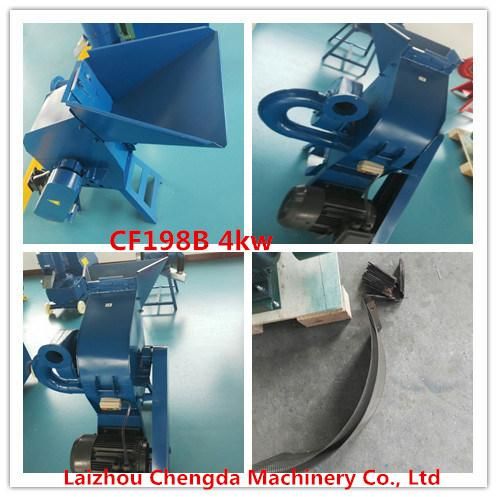

 Pictures of hammer mill
