• Model NO.：GN1200H
• Energy Saving：Energy Saving
• Warranty：2 Years
• Customized：Customized
• Condition：New
• Size：4800*2700*2000 mm
• Total Power：7.5kw
• Working Voltage：AC380,50Hz
• Workinig Pressure：0.6-0.8MPa
• Y Axis(Drill Left and Right)：95m,Min
• V Axis (Side Aligning)：60m,Min
• Bottom Drill Box：9(Vertical)
• Upper Vertical Drilling：12
• Cutter Handle Diameter：10mm
• X Axis(Clamp)：130m,Min
• Z Axis (Drill Top and Bottom)：35m,Min
• Drilling Set Motor Speed：4500 Rpm
• Pressure：0.6-0.8MPa
• Drill Unit Motor Power：2.2kw, 4000rpm
• Net Wiight：3500 Kg
• Transport Package：Plywood Case Package
• Specification：4800*2700*2000 mm
• Trademark：Mars
• Origin：China
• HS Code：8458110090
• Production Capacity：300,Month

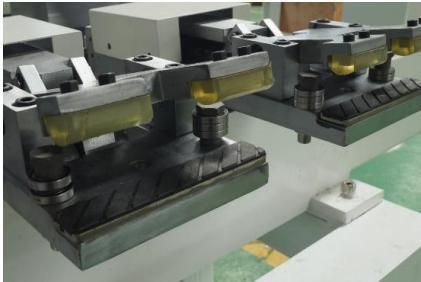

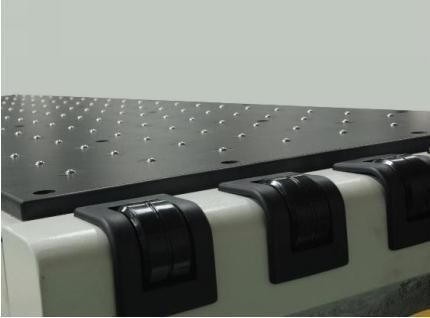

Pneumatic Double Clamp Feeding Device Precision Upper Drilling Bag Set Precision Down Side Drillling Bank Air Floating Feeding Platform

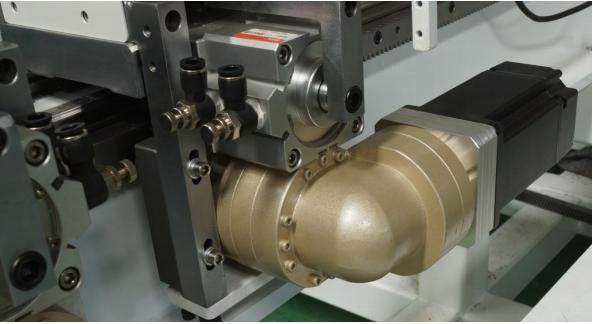

  Large Torsion Reducer


 Products ParameterWorking StrokeX/Y/A/Z Axis1250/ 1490/ 80/ 50 mmMax. Positioning SpeedX/Y/A/Z Axis80/ 60/ 30/ 30 m/minBorehole Combination DeviceVertical DrillsX-axis direction 7 groups, Y-axis direction 9 groups Horizontal Drills1 left + 1 right + 2 front + 2 rear Drill Unit Motor Power2.2kw, 4000rpmEngrave Milling SpindleSpindle CollectEr32 Tool HolderΦ10 Spindle Motor Power2.2kw Spindle Speed24000rpmProcessing Size RangeMini/ Max Sheet Width50mm/ 1200mm Mini Sheet Length200mm Max Sheet Thickness50mmOther ParamterTotal Power7.5kw Working VoltageAC380/50HZ Workinig Pressure0.6-0.8Mpa Machine Diemsnion3500*2100*1700mmApplication:

It's a powerful drilling machine, can accomplish all five sided holes and slots at one processing.It can completely substitute the traditional panel saw and gang drill, and discard the dependence of traditional punching mode on the technical workers. Combined with professional production design sooftware, it achieves really intelligent producction, with high precision and fast speed.

Certificate


Exhibition

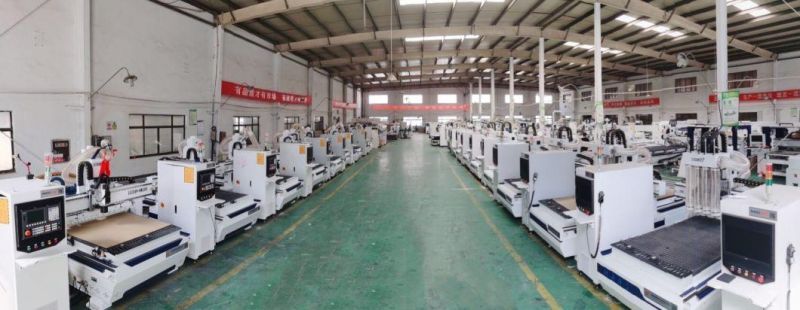

Factory Hall

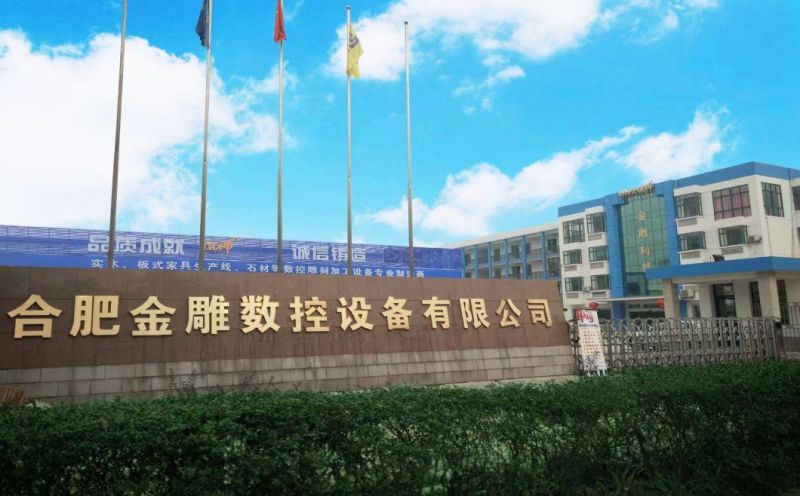

Our Manufaturer


( With 15 years experience of production)
Hefei Aquila CNC Equipment Co., Ltd local in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000 square meters, we specialize in the innovation, manufacturing and trading of Panel Furniture Production Line Equipment, Nesting CNC Machining Center, ATC CNC Machining Center, Woodworking CNC Router, Stone CNC Router, Jade CNC Router, 4- AXIS Rotary CNC Router, Mold-making CNC Router etc. numerical control technology.  With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc. Our company adheres to the principle of "Customer First" and "Win- win Cooperation". Pursuing excellence and keeping making progress, we devote to developing the landmark brand in the CNC industry. We are searching distributors all over the world. If you have any demands, welcome to contact us.


FAQ:

Q: Are you manufacturer?
A: Yes, we have our own R&D team and sales team, We provide you one-stop service.
Q: Do you have CE, ISO13485?
A: Yes, our products are approved by CE, ISO13485
Q: Is OEM &ODM available in your factory?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight
2.T/T: 30% deposit by T/T, 70% balance by T/T before shipment
3.Trade term: EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package, standard export packages
2.All of the productions are inspected carefully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 days after receiving the deposit.
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days,It depends on the quantity of order.
Q: What is your Min.order?
A: There's no minimum quantity.
