• Model NO.：SM-C1325
• Inverter：Fulling Inverter 3.7kw
• Spindle：3kw Air Cooling
• Rail：Taiwan Hiwin or PMI
• Transmission：Xy Axis Is Gear Rack, Z Axis Is Ballscrew
• Oil：Semi-Lubrication Oil
• Control System：DSP Control
• Table：Vacuum Table with T-Slot
• Structure：Heavy Sloid Thick Tube Welded
• Transport Package：Standard Export Plywood Case
• Specification：1300*2500*200mm
• Trademark：STARMAcnc
• Origin：China
• Production Capacity：100 Sets Per Month

NO.

Description

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

woodworking cnc router machine with rotary

2

X,Y,Z Traveling Positioning Accuracy

±0.05mm

3

X,Y,Z repositioning Accuracy

±0.05mm

4

Table Surface

T-shot table / Vacuum table optional

5

Frame

Heavy duty Square pipe Welded Structure

6

X, Y axis transmission

Precision gear rack



Z axis transmission

Tawain TBI ball screw

7

Max. Travalling speed

40000mm/min

8

Max. Working Speed

20000mm/min

9

Spindle Power Motor

4.5KW air cooled spindle / water cooling spindle optional

2.2kw, 3kw,5.5kw,7.5kw, 9kw optional

10

Spindle speed

0~18000RMP/MIN

11

Drive Motors

Stepper motor and leadshine driver

Japanese Yaskawa servo motor and driver 750W optional

12

Working Voltage

AC380v

13

Command Language

G code

14

Operating System

DSP A18 (support 4 axis)

15

Interface

USB

16

Flash Memory

128M( U Disk)

17

X,Y Resolution

<0.01mm

18

Software Compatibility

Artcam software

19

Running Environment

Temperature: 0ºC~45ºC
Relative humidity: 30%~75%

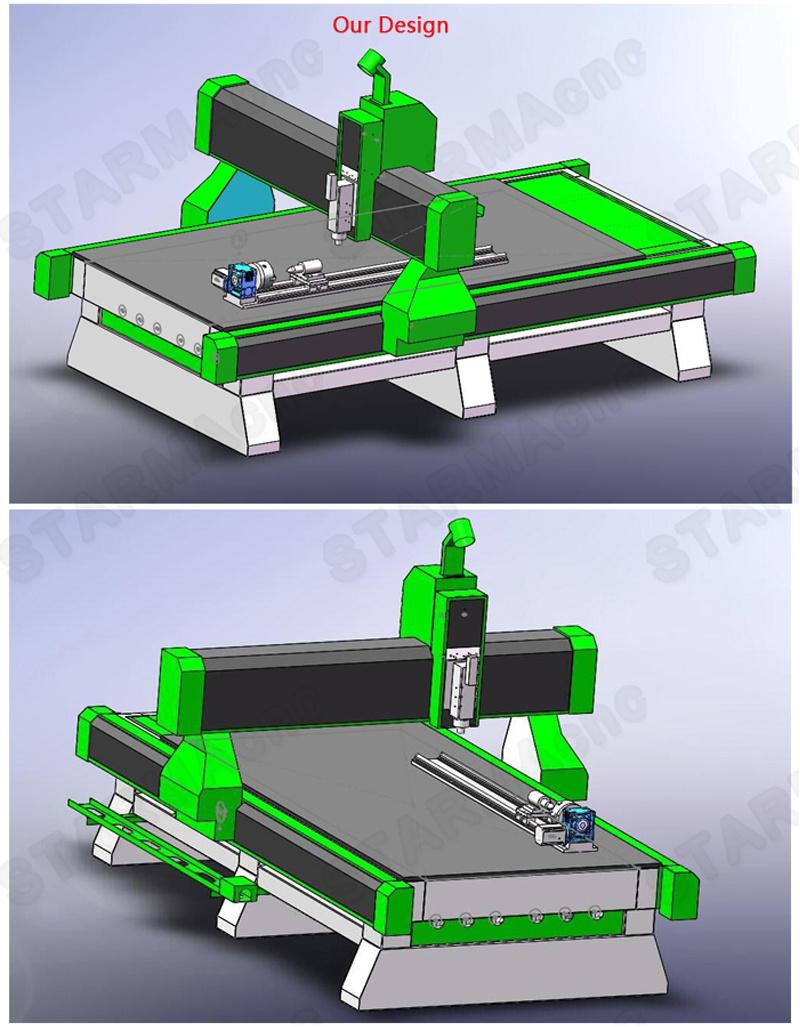

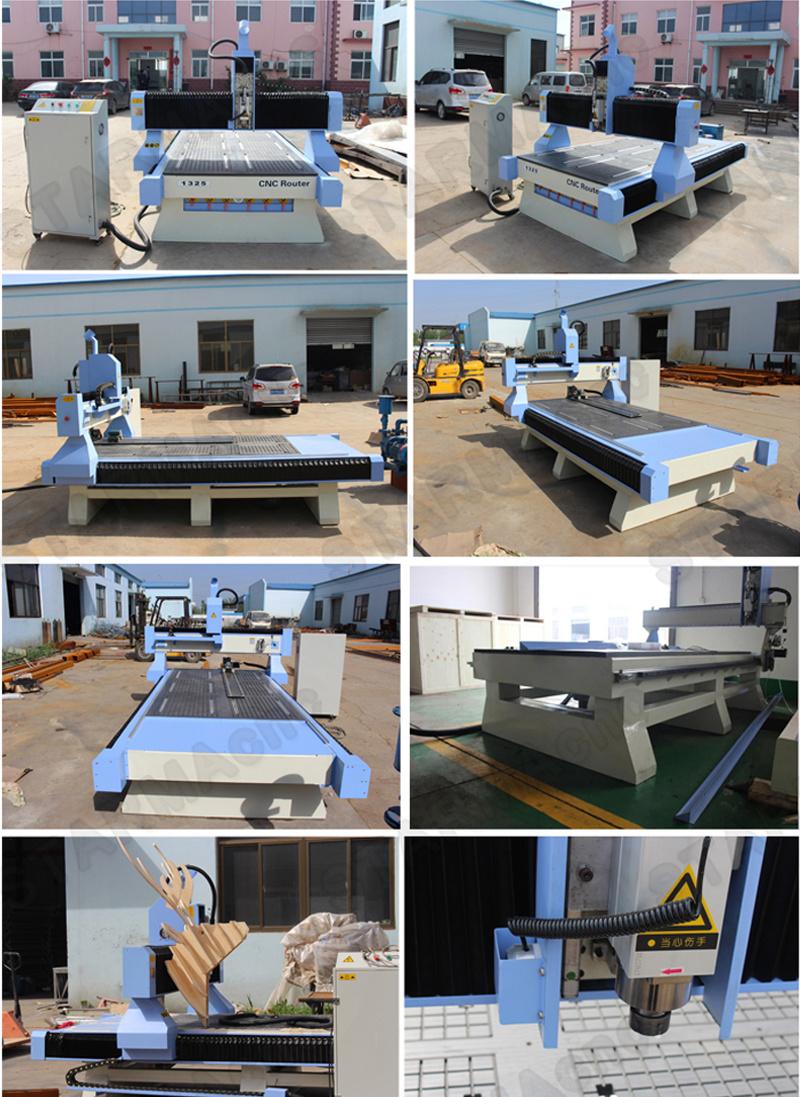

Details of cnc router:




Main applications of cnc router machine

1.Furniture industry: wooden doors, cabinet doors, board, office, solid wood furniture

2.Other wood products industry: speakers, game consoles cabinets, computer tables, sewing machine table, musical instruments, etc.

3.Board processing industry: insulation piece, plastic chemical products; PCB; fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious mixtures's milling process

4.Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo's processing.

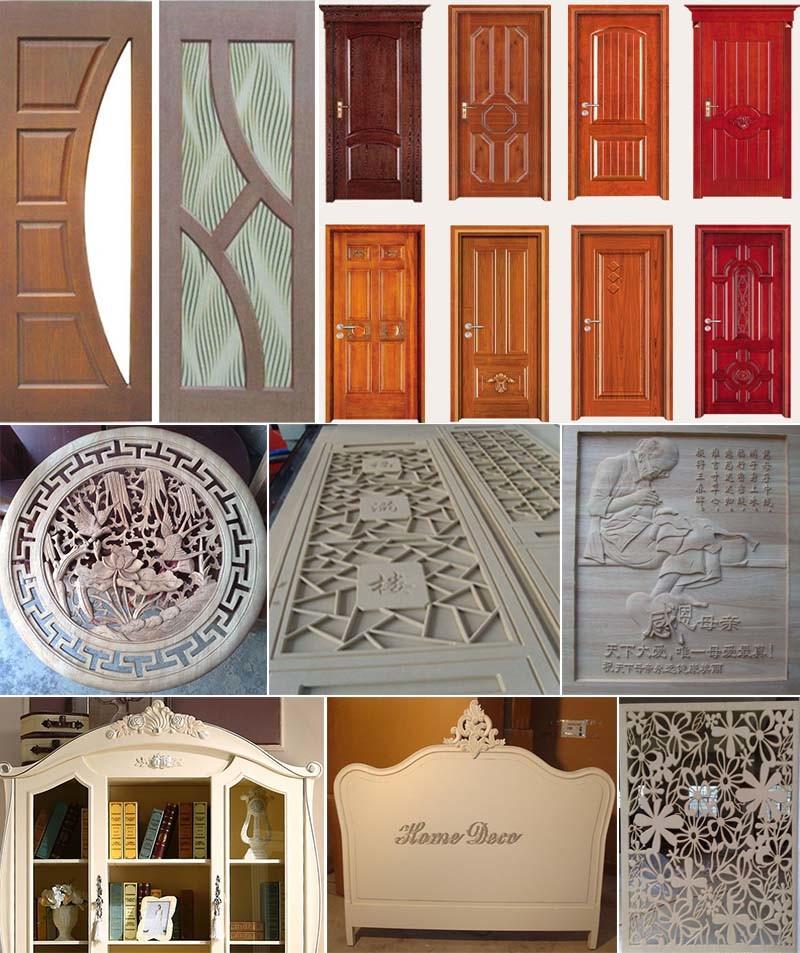

Samples:

Packing & shipment :

Save space as much as possible for container loading.

• Inside:Water-proof Plastic Film Package With Foam Protection
• Outside:Solid Seaworthy Wood Box Package
• Below: Steel Tube. 4x8 feet cnc machine

Hot Sale 1325 CNC Wood Router with 3kw Spindle from China

Our service:

Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here; 4x8 feet cnc machine
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!

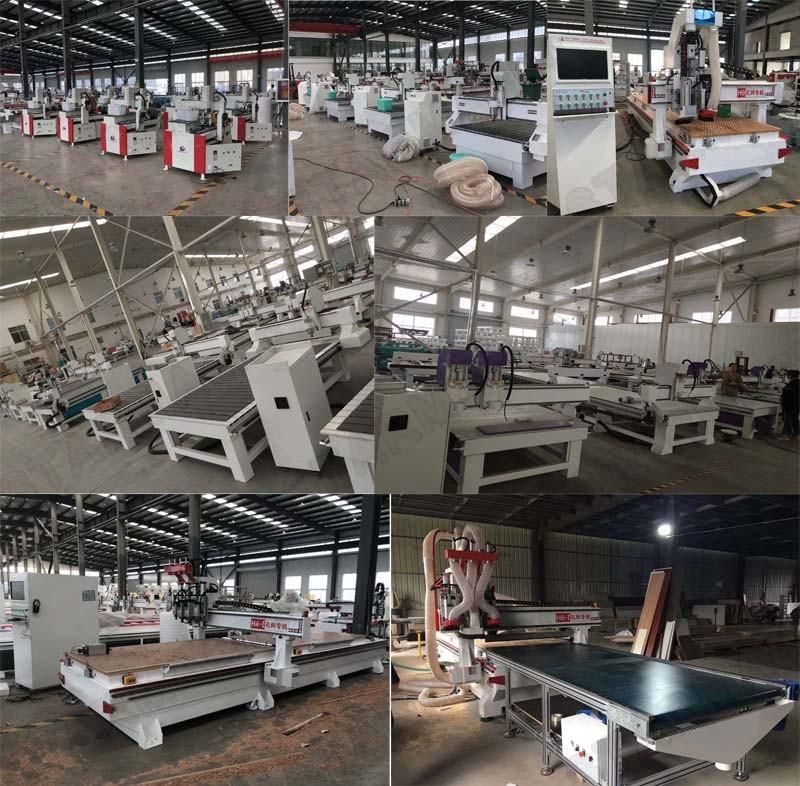

Our cnc router machine workshop:

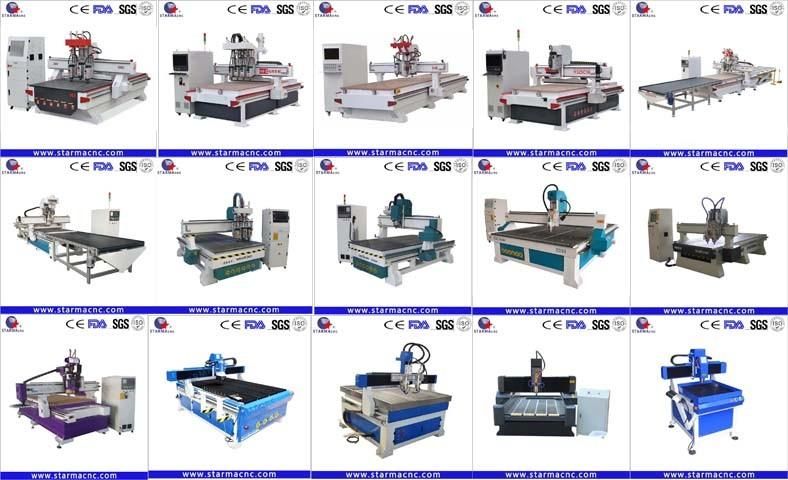

Our other type cnc router machine:

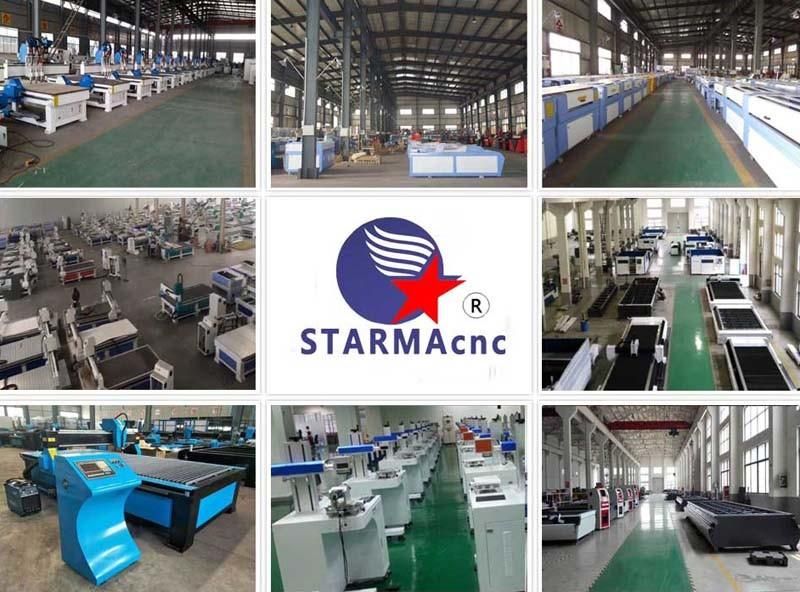

Our Company :

Jinan Starma Machinery Equipment Co.,Ltd. producing cnc router is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,wood cnc router, stone cnc router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.The aim of Jinan STARMA CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision cnc routers and cnc machines.

Hot Sale 1325 CNC Wood Router with 3kw Spindle from China

FAQ:

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is
covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by
thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have
full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry,
you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will
send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or
someone else. We will response within 24 hours as quick as we can to solve it for you.
