• Model NO.：S100
• Vacuum Pump：5.5kw
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：1800KG
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. S100 Vacuum Pump 5.5kw Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 1800KG Trademark Mars Origin China HS Code 8465990000 Production Capacity 300 Sets/Month

Product Description

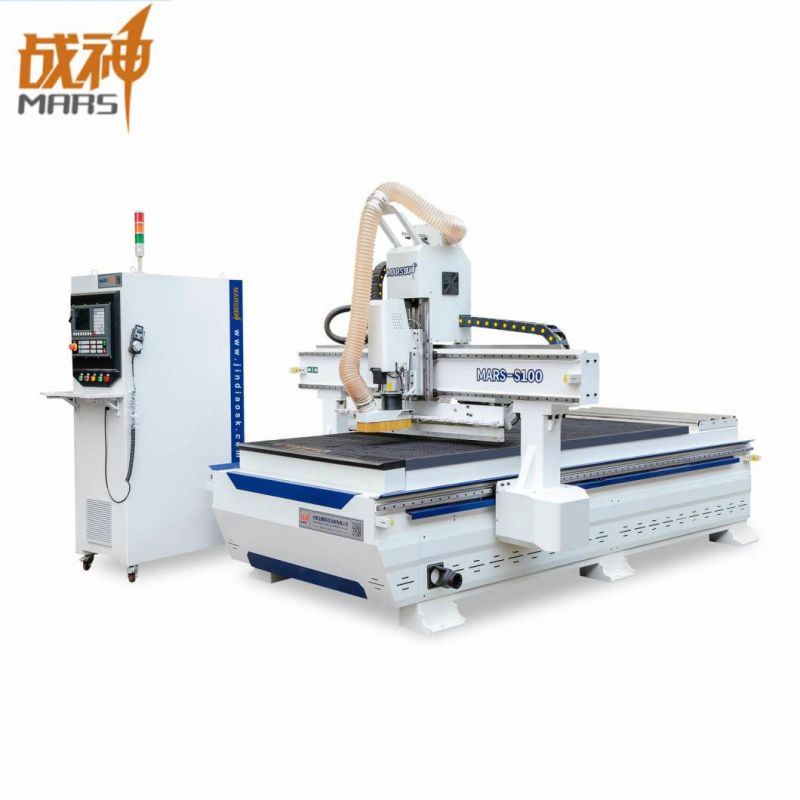

S100 Woodworking CNC Router Cutting Machine/CNC Router Engraving Machine
Keywords: 15 years experience of production
                       ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                       Three Brand: Mars, Golden Eagle,Borio



Parameters:

Model	Woodworking CNC Router Cutting Machine/CNC Router Engraving Machine
Working Stoke	1300*2500*100mm
Body Structure	Thick-walled steel tube welded
Spindle Power	HSD 9KW air cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Control System	Syntec/ Osai
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Vacuum Pump	5.5KW
Max Travelling Speed	25m/min
Max Processing Speed	15m/min
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Support Software	Professional cutting optimization software
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	1800KG
Machine Size	2200*3300*1800mm

Description:
Woodworking CNC Router Cutting Machine/CNC Router Engraving Machine is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include cutting,milling,drilling and slotting.

Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.



Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.



Accessories:


Performance Features:

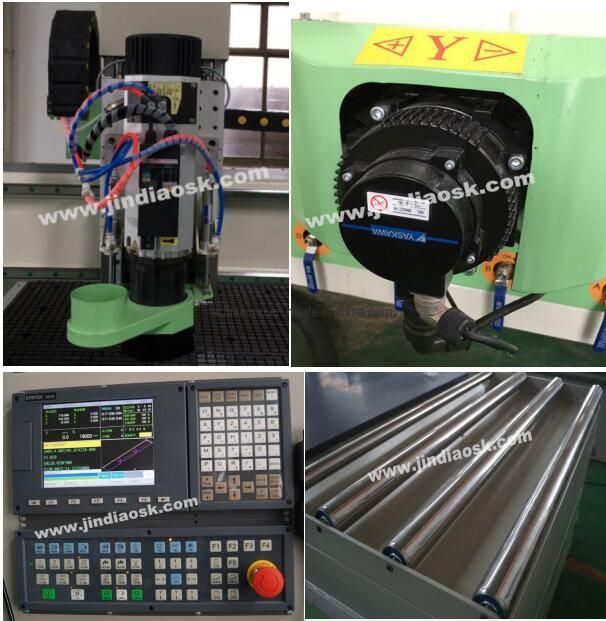

1. Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver.
2. Linear type tool magazines support automatic tool changer, improve processing efficiency.
3. Italy 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics.

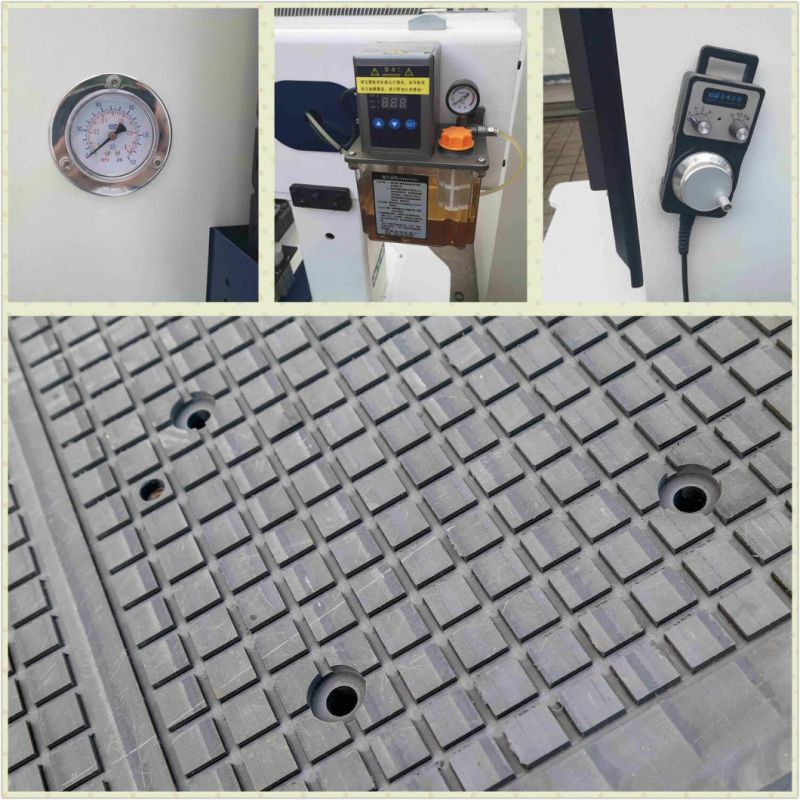

4. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.

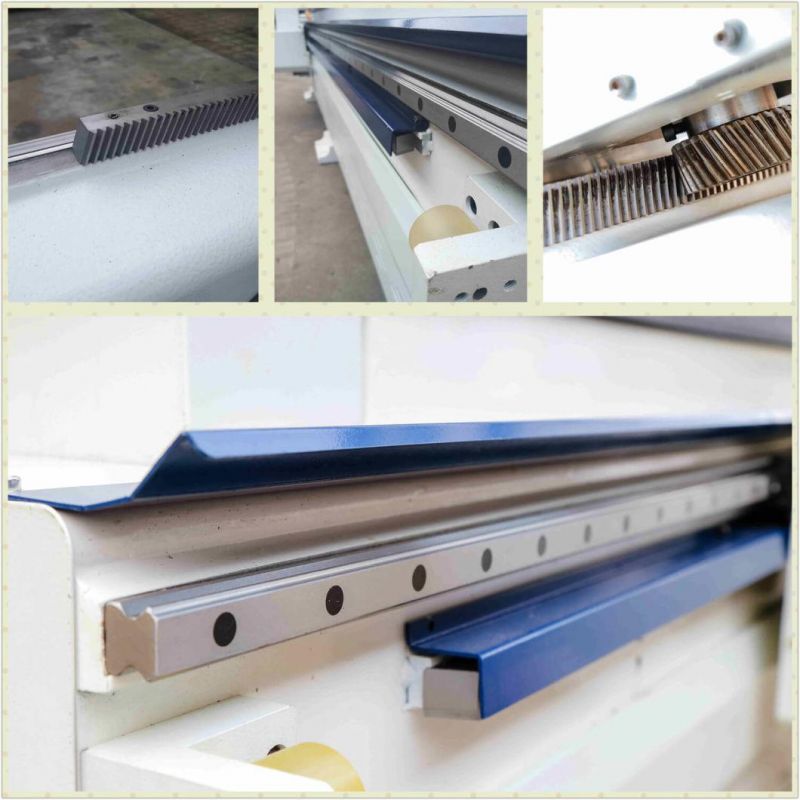

5. Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
6. Taiwan planetary reducer, small volume, withstand large torque, high transmission efficiency, wide range of deceleration.
7. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
8. Syntec CNC control system can automatically accomplish multi-layer 3D job. Easy to operate, fully support automatic production.

Samples:
