Auromatic 6 Line Boring Machine
Qingdao Samac International Trading Co., Ltd.- Structure:Deep Hole Boring Machine
- Precision:High Precision
- Controlling Mode:CNC
- Automation:Automatic
- Certification:CE, ISO
- Feeding Speed:60m,Min
Base Info
- Model NO.:RMZ8042,8142
- Transport Package:Wooden Case
- Specification:RMZ8042
- Trademark:SAMACH
- Origin:China
- HS Code:84659500
- Production Capacity:90sets,Month
Description
Basic Info.
Model NO. RMZ8042/8142 Transport Package Wooden Case Specification RMZ8042 Trademark SAMACH Origin China HS Code 84659500 Production Capacity 90sets/MonthProduct Description

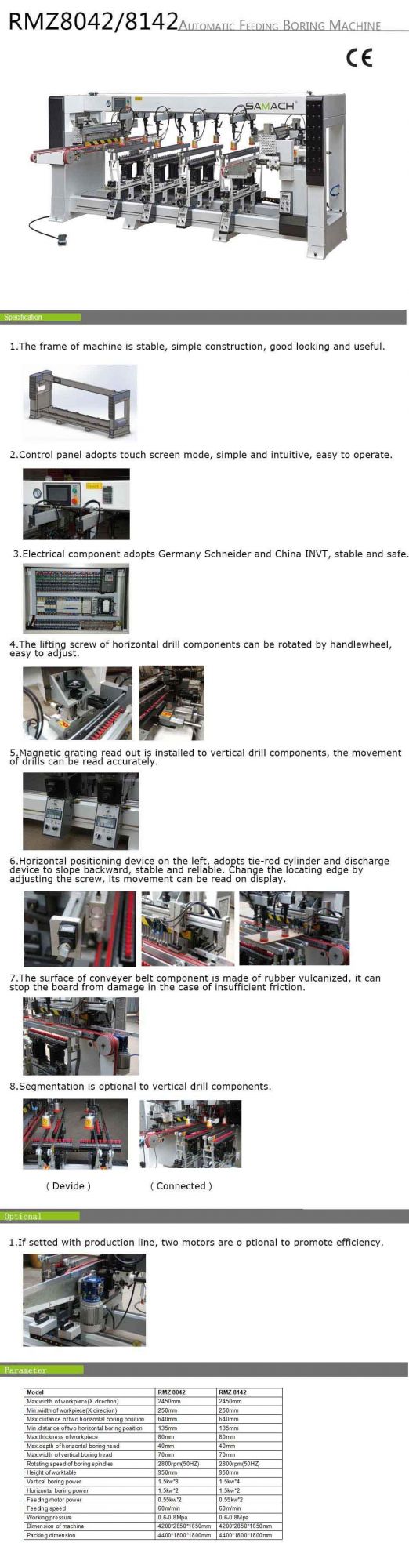

Auromatic Feeding Boring machine RMZ8042 6 lines boring machineAutomatic Feeding Boring Machine RMZ8042/8142
Specification:
1.The frame of machine is stable, simple construction, good looking and useful.
2.Control panel adopts touch screen mode, simple and intuitive, easy to operate.
3.Electrical component adopts Germany Schneider and China INVT, stable and safe.
4.The lifting screw of horizontal drill components can be rotated by handlewheel,easy to adjust.
5.Magnetic grating read out is installed to vertical drill components, the movement of drills can be read ccurately.
6.Horizontal positioning device on the left, adopts tie-rod cylinder and discharge device to slope backward, stable and reliable. Change the locating edge by adjusting the screw, its movement can be read on display.
7.The surface of conveyer belt component is made of rubber vulcanized, it can stop the board from damage in the case of insufficient friction.
8.Segmentation is optional to vertical drill components.
Optional:
1.If setted with production line, two motors are o ptional to promote efficiency.
Parameters:
Model | RMZ 8042 | RMZ 8142 |
Max.width of workpiece(X direction) | 2450mm | 2450mm |
Min.width of workpiece(X direction) | 250mm | 250mm |
Max.distance of two horizontal boring position | 640mm | 640mm |
Min.distance of two horizontal boring position | 135mm | 135mm |
Max.thickness of workpiece | 80mm | 80mm |
Max.depth of horizontal boring head | 40mm | 40mm |
Max.width of vertical boring head | 70mm | 70mm |
Rotating speed of boring spindles | 2800rpm(50HZ) | 2800rpm(50HZ) |
Height of worktable | 950mm | 950mm |
Vertical boring power | 1.5kw*8 | 1.5kw*4 |
Horizontal boring power | 1.5kw*2 | 1.5kw*2 |
Feeding motor power | 0.55kw*2 | 0.55kw*2 |
Feeding speed | 60m/min | 60m/min |
Working pressure | 0.6-0.8Mpa | 0.6-0.8Mpa |
Dimension of machine | 4200*2850*1650mm | 4200*2850*1650mm |
Packing dimension | 4400*1800*1800mm | 4400*1800*1800mm |
Reasons to choose Samach:
1: good resources with No.1 quality in China
2: quick delivery
3: excellent after-sale services
4: 24 hours technical support through email or calls.
5: friend partner relationship.
Get the maximum return on your investment with Samach's affordable, flexible and user-friendly machines, designed to help you succeed by delivering maximum performance!
