• Model NO.：2030
• Transport Package：Plywood
• Specification：1325
• Trademark：sea eagle
• Origin：China
• HS Code：84659900
• Production Capacity：1000

Working area

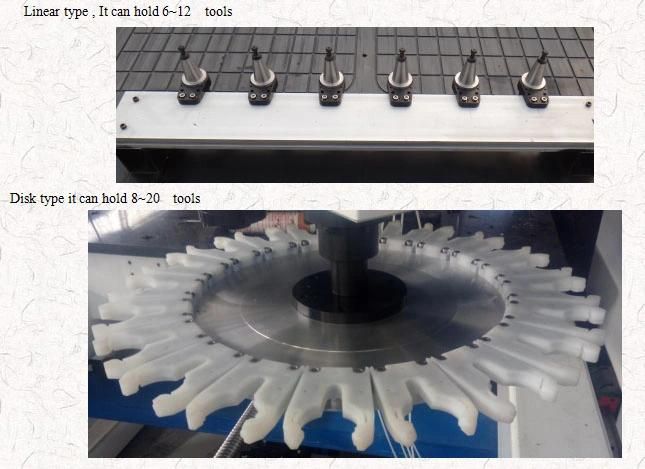

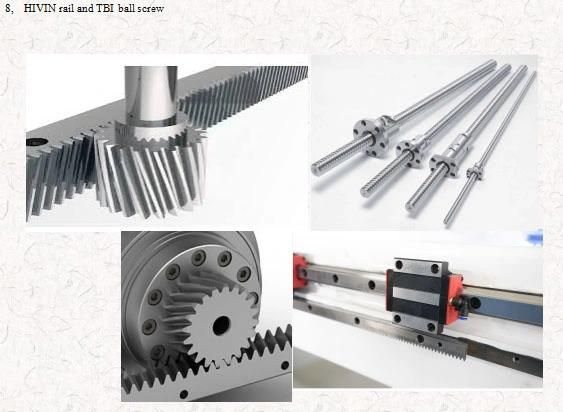

Working areaX1,300mmY2,500mmZ210 mmTransmission systemXHiwin square rail,-No.25, Helical - Rack & PinionYHiwin square rail,-No.25, Helical - Rack & PinionZball screw ,Hiwin square rail.SpindlePower9 kw CC Spindle with 12 pcs toolsInverterYASKAWARotating Speed24000rpmCooling Typewater- cooling pump  Drive systemsX,Y,ZYASKAWAPrecision<0.01mmPositioning accuracy<0.01mmidling speed0~24000mm/minMax speed90m/minWorking speed30m/min

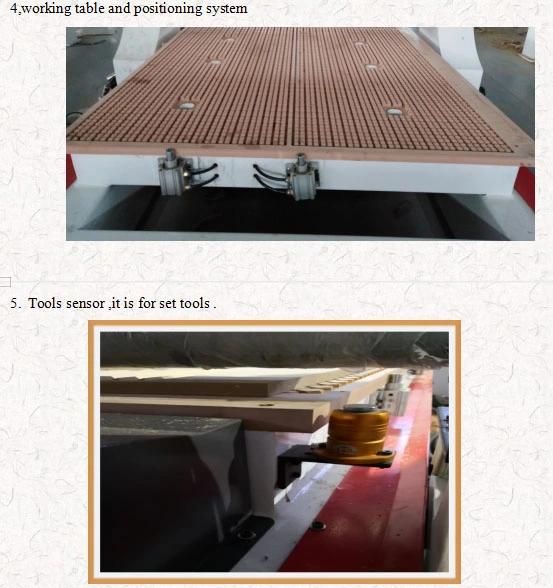

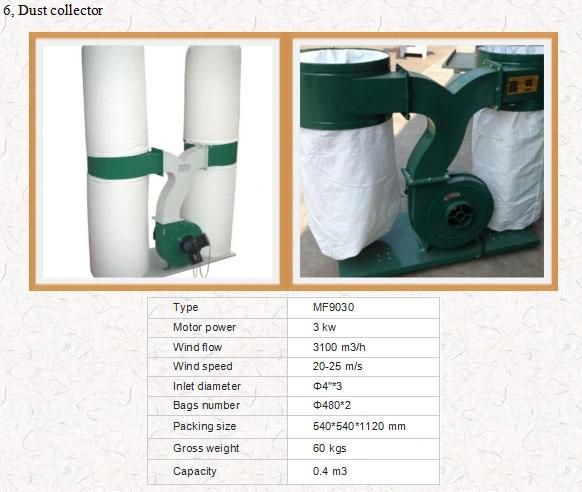

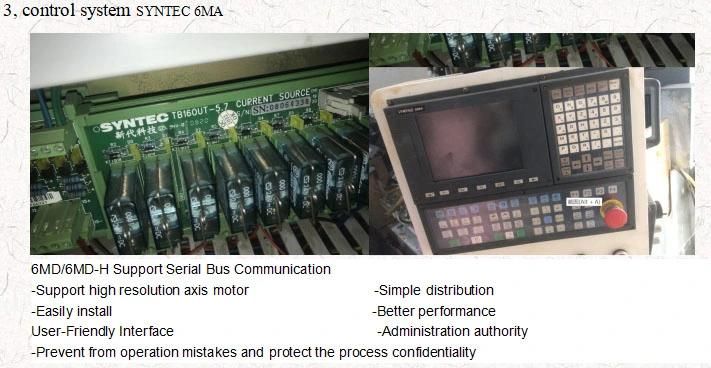

Machine bodySteel structure Table,Seamless welded steel structure / Lathe bed welded with thick square tube and slot steel,tablevacuum adsorption table.double tableControl SystemLNC control system, or SYNTEC system, mach3Working VoltageAC380V±30V, 50HZCommand CodeG Code, *.mmg, *.plt, *.engTool sensor systemAvailablePackingPlywood  caseNet Weight3600KGPacking Size4000*1970*1930(mm)Gross Weight2500KGdust collector4.0 kw  380VReducer systemTiming Pulley
Product Uses

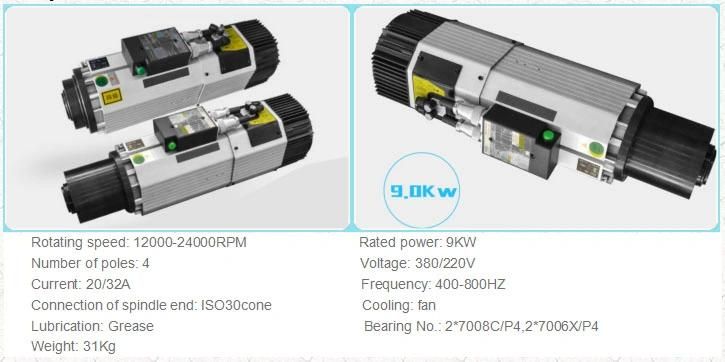

1, spindle









samples

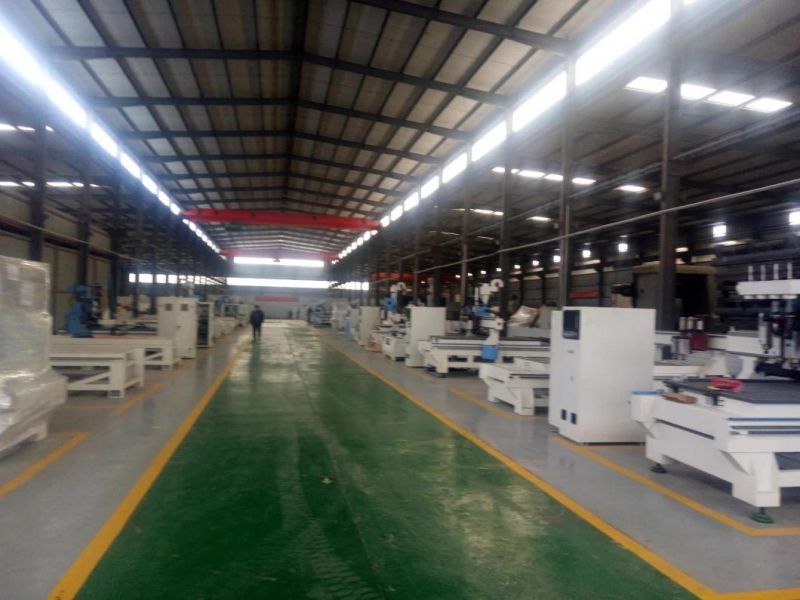

our workshop
