Woodworking Machinery

Full Auto Laminating Board Sanding Machine Disk Sander Woodworking Wooden Edge Chip Removing Sanding Machinery Polishing Roller for CNC Router Board

Qingdao Xinlihui Machinery Co., Ltd.
  • Type:Disc Wood Sander
  • Automatic Grade:Automatic
  • Variable Speed:Variable Speed
  • Certification:CE, ISO, FDA
  • Customized:Customized
  • Condition:New

Base Info

  • Model NO.:QDDR1000
  • Color:Customized
  • Machine Item:Laminating Board Sanding Machine Disk Sander
  • Machine Painting Color:Be Made According to Your Need
  • Package:Safe Wooden Box or Plastic Film Wrapping
  • Price:Our Most Favorable Price for You
  • Voltage:380V,50Hz 3phase Can Be Customized
  • Warranty:Offer Free Spare Parts and Service Within 12 Month
  • After-Sales Service Provided:Engineers Available to Service Machinery Overseas
  • Working Experience:Twenty Years′ Experience
  • Working Width:1000mm
  • Working Thickness:2-160mm
  • Transport Package:Standard Package, Be Made According Cutomer Need
  • Specification:3300*1500*1700
  • Trademark:XINLIHUI Woodworking Decorative Panel polishing
  • Origin:Qingdao City
  • HS Code:84659100
  • Production Capacity:100,Week

Description

Board Working width 1000MMBoard Working thickness 2-160MMBoard working length >=350MMConvey belt speed 2.5-12.5 M/min Continuouslv variable TransmissionMotor total power about 12.97 KWDish brush motor 1.5*1 KWRoller brush motor 2.2*2KWConvey belt motor 1.5*1 KWNumber of polishing units9 Disk + 4 Roller Working air pressure >0.65Mpa Vibrating Scope50/30/15MMOverall size3300*1500*1700
3  Sample Show :
Full Auto Laminating Board Sanding Machine Disk Sander Woodworking Wooden Edge Chip Removing Sanding Machinery Polishing Roller for CNC Router Board

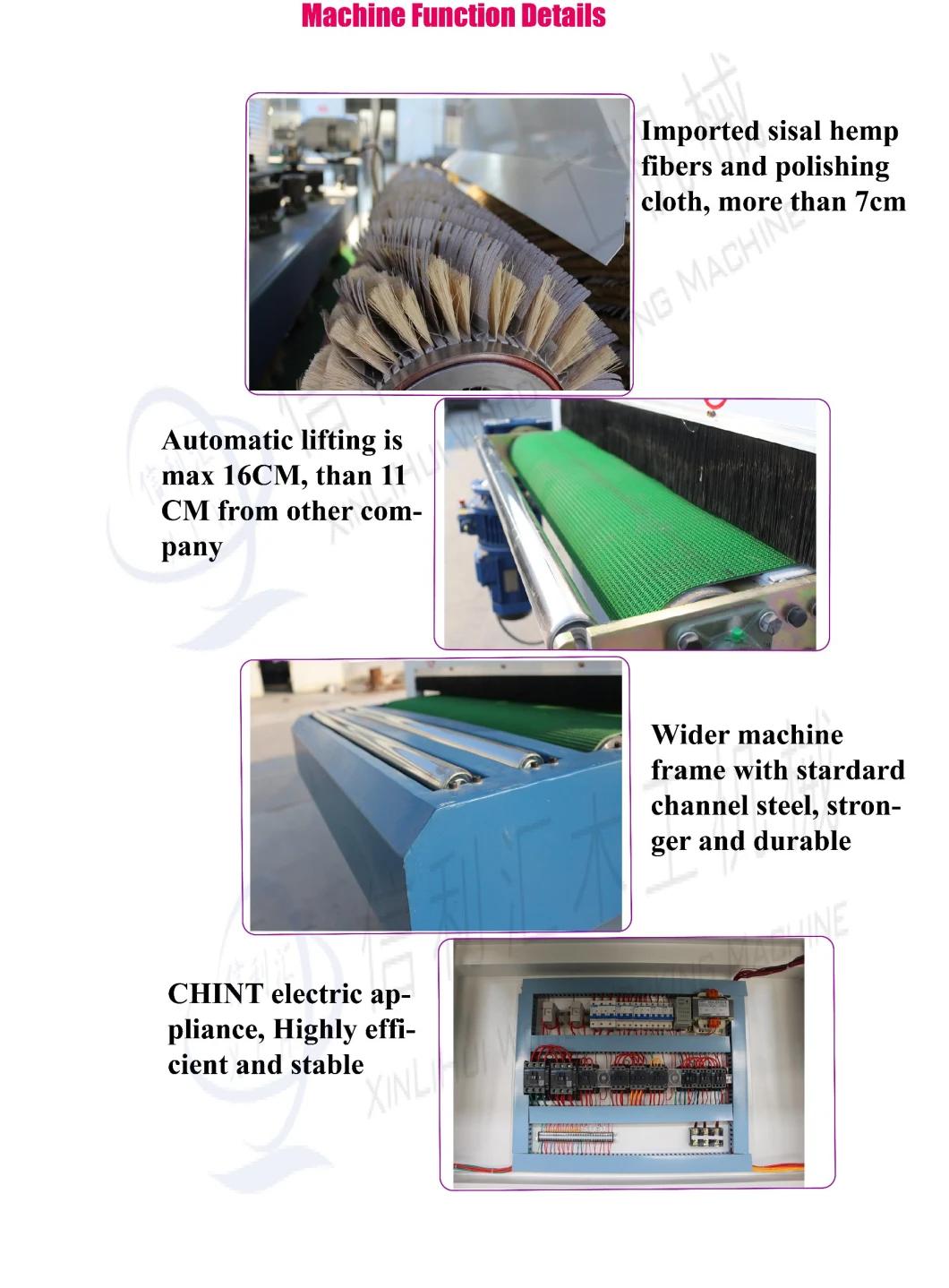

4, Technical Characteristics:

1.Range of use solid wood, embossed plate, carved plate, archaize floor, furniture, table board, handicraft.
2.Conveyor belt,drawing roller,polishing roller by motor,and feeding by frequency conversion.
3.Polishing roller can be easily removed or rearranged.
4.Disc brush have swing device, and each group of disc brush can independently up and down.
5.According the different board texture and model, with diffrent disc brush and polishing rollers.
Full Auto Laminating Board Sanding Machine Disk Sander Woodworking Wooden Edge Chip Removing Sanding Machinery Polishing Roller for CNC Router Board

Full Auto Laminating Board Sanding Machine Disk Sander Woodworking Wooden Edge Chip Removing Sanding Machinery Polishing Roller for CNC Router Board
