• Model NO.：3030
• Customized：Customized
• Condition：New
• Color：Customized
• Rail：Round Rail
• Inverter：Best Inverter
• Driver：Stepper Driver
• Transmission：Tbi Ball Screw
• Spindle Power：1.5,2.2kw
• Motor：Stepper Motor
• Table：Aluminum T-Slot
• Control System：Ncstudio Control System
• Spindle：Water Cooling Spindle
• Application：Advertising
• Transport Package：Exporting Plywood Package
• Specification：3030
• Trademark：ZK
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100set ,Month

Basic Info.

Model NO. 3030 Customized Customized Condition New Color Customized Rail Round Rail Inverter Best Inverter Driver Stepper Driver Transmission Tbi Ball Screw Spindle Power 1.5/2.2kw Motor Stepper Motor Table Aluminum T-Slot Control System Ncstudio Control System Spindle Water Cooling Spindle Application Advertising Transport Package Exporting Plywood Package Specification 3030 Trademark ZK Origin Shandong China HS Code 84659900 Production Capacity 100set /Month

Product Description

3030 Advertising Wood CNC Router Machine
Features:
1.Adopt high power water cooling spindle,which is suitable for longtime and high temperature working

2.The lathe is founded by high-quality casting iron that ensures the high stability

3.What ball screws ZK use are the Taiwan TBI ball screws with high precision and fast speed

4.Round rail with high accuracy and high efficiency

5.Large compatibility of software such as Type3,artcam and others

6.Our standard controller is Ncstudio,easy to operate(optional:DSP control system)

7.Aluminum T-slot surface with high strength raises stability and longtime working





Technical parameters:
Model                                                             ZK 3030 CNC router
X,Y,Z Working Area                                     300*300*100mm
X,Y,Z Traveling Positioning Accuracy         ±0.03/300mm
X,Y,Z repositioning Positioning Accuracy   ±0.02mm
Lathe Structure                                              Thick wall square tubes welding bed
X Structure                                                    Round rails
Y Structure                                                    Round rails
Z Structure                                                    Taiwan TBI ball screw
Max.Speed                                                    0-30000mm/min
Max.Working Speed                                     0-25000mm/min
Spindle                                                         1.5kw water cooling spindle
Spindle Speed                                               600-24000RPM
Working Mode                                              Stepper motor
Working Voltage                                           220V50HZ/60Hz for standard machine
Command Code                                           G code(*uoo,*nc,*mmg, *plt)
Operating System                                         Ncstudio control system
Interface                                                       USB
X,Y Working Delicacy                                 <0.01mm



Technical support:
1.Warranty is 1 year

2.24 hour technical support by email or calling

3.User-friendly english manual for machine using and maintaining

4.We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone or Whatsapp,Skype.

Payment terms:
You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.


Packing and shipping:

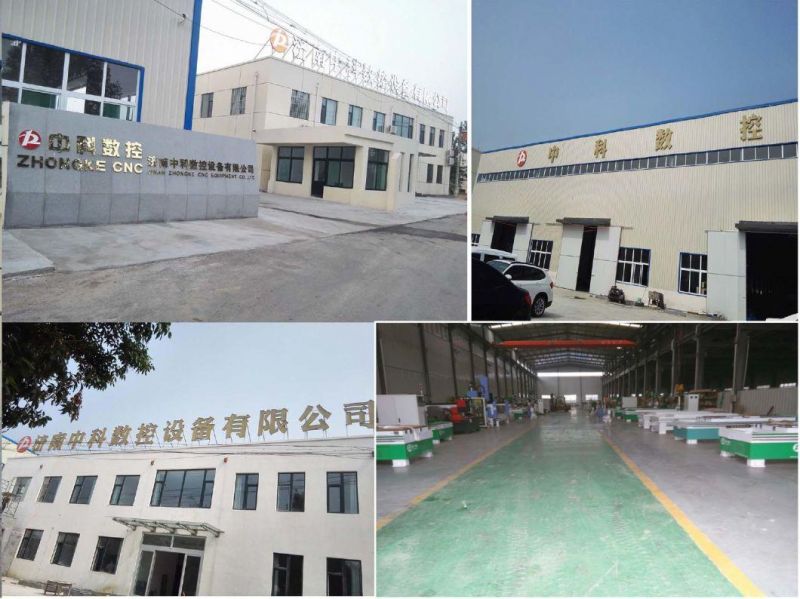

Our company:
