• Model NO.：LT-1212
• Product Keyword：1212 CNC Carving Machine
• Spindle：1.5kw,2.2kw,3kw Water Cooling Spindle
• Motors and Drivers：Stepper Motor 450b and Leadshine Drivers Ma860h
• Table Surface：Vacuum Table with Vacuum Pump
• Guide Rail：Hiwin Square Linear Guide Rail
• Control System：Ncstudio,Mach3 Control System
• Transmission：X, Y, Z Axis by Tbi Ball Screw
• Bed Structure：Welded Steel Tube Bed Structure
• Inverter：Fuling Inverter
• Working Area：1200*1200*200mm
• Software：Artcam,Type3
• Transport Package：Plywood Case
• Specification：1850*1900*1800mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：400sets,Year

Overview Product Description

1. The crafts cnc router adopts casting mechanical structure and imported linear orbit.big loading capacity,
gantry moving, good moving stability, high precision and long lifetime.
2. Optional DSP or NC control system ,easy to operate,it is able to continue engraving when the electricity
and with the function of forecasting process time.
3. CNC engraving machine adopts high frequency spindle ,ensure to well engrave and cut ,long lifetime.
4. Be compatible with several CAD/CAM designing software, Type3,ARTCAM .JD, Master CAM,UG,Castmate ,etc
5. The wood cnc router can be equipped with water cycle working table ,ensure to process many materials.
6. Adopts stepper motor and driver, high speed ,good moving and low noise(servo motor and driver is also available)
7. Optional rotation axis,expand the processing materials and improve the added value of products
Product ParametersModelLT-1212 advertising cnc router machine

Effective working area

1200*1200*200mm

Bed structure

Welded steel tube bed structure

Table style

Aluminum T-slot table with PVC or vacuum table with vacuum pump

Guide rail

Hiwin square linear guide rail

Driving method

Taiwan Original TBI Ball screw for X,Y,Z axis

Spindle

1.5KW water cooling spindle

Invert

Fuling invert

Collect size

ER16

Spindle speed

0-24000rpm

Motors and drivers

86BYG-450B stepper motors and MA860H Leadshine drivers

Control system

Ncstudio control system

Working Accuracy

<0.03/300mmWorking speed<7000mm/minTraveling speed 0-7000mm/min Instruction formatG code *.u00 *.mmg *.pltWorking voltageAC220V, Single Phase, 50-60HzStandard SoftwareArtcam 2010Compatible softwareType3/Castmate/Coreldraw/AutoCAD or other CAM/CAD softwareEnvironment temperature0-45ºCEnvironment humidity30%-75% No coagulate water Too sensorYesOthersEnglish manual,Tool box,Tool sensor,etc.Optional parts1,Rotary axis for engraving round wood:price depends on its diameter

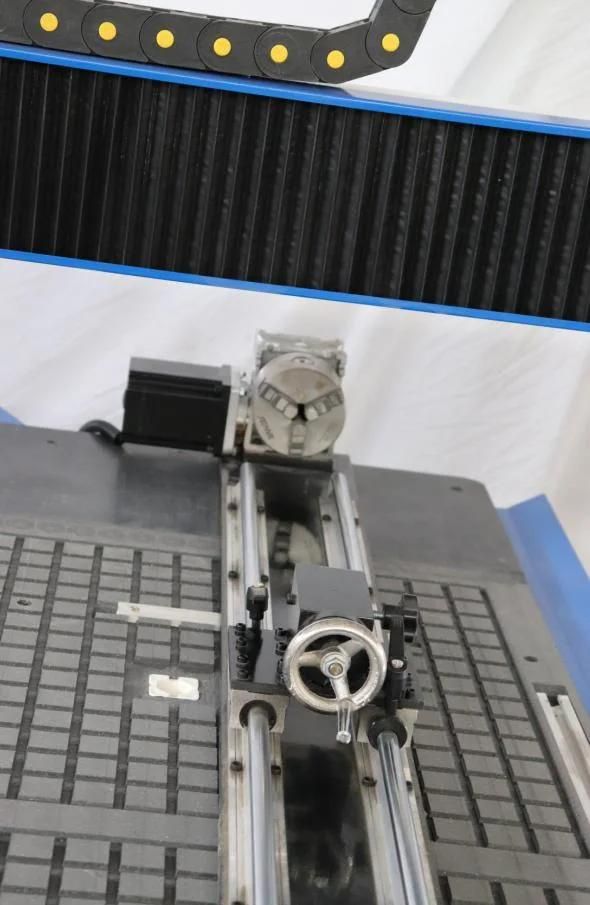

2,2.2kw water cooling spindle
3,Water tank for cutting soft metal
4,Mach3 USB control systemDetailed Photos

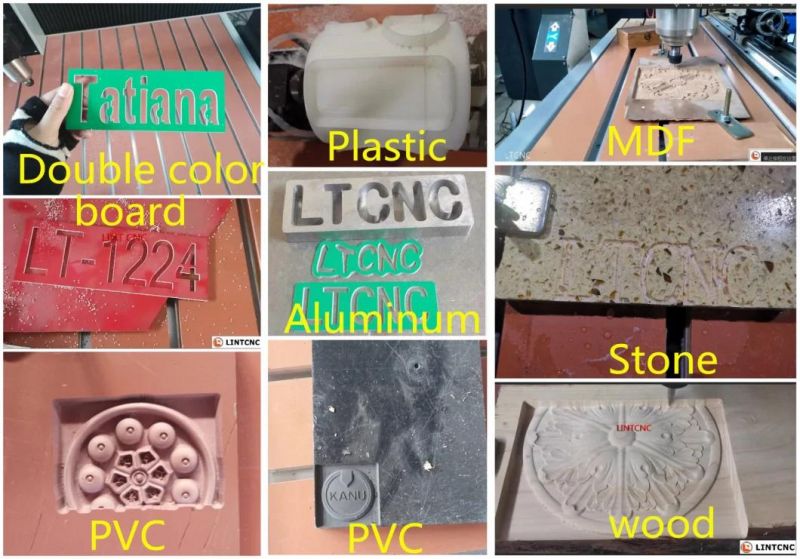

Application

1. Advertising Materials: such as acrylic, plastic, PVC, etc. The cnc router is used for cutting large characters,
shape of groove for LED and neon and making sign.
2. Metal: copper, aluminum, stainless steel etc.
3. Wood: all kinds of wood, MDF, plywood. etc.

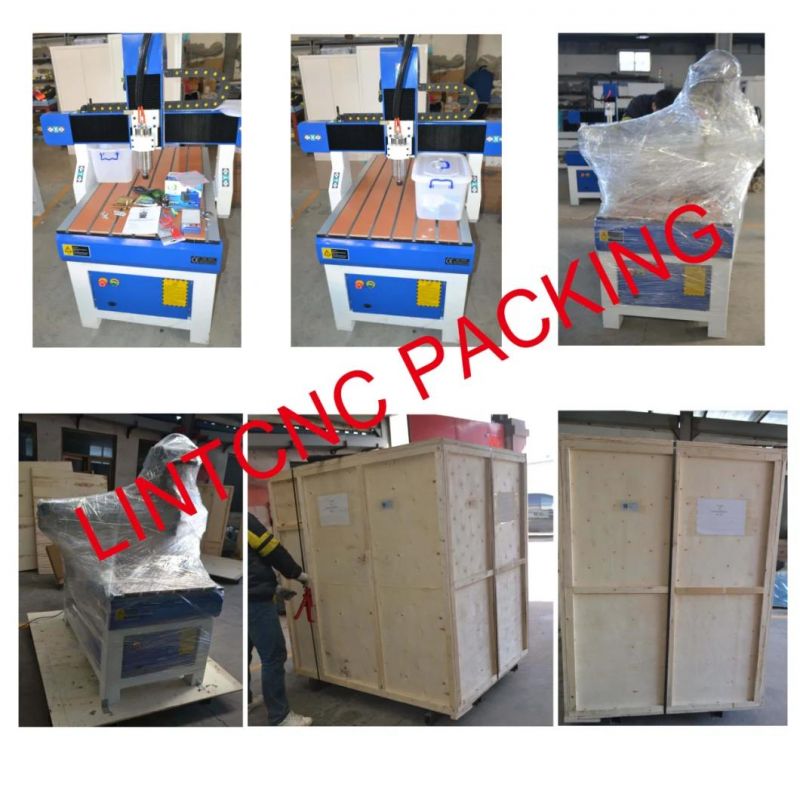

Packaging & Shipping

After Sales Service

1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.
