6090 4 Axis CNC Router Engraver Wood Machine 6040 9060 3D Wood Engraving Router CNC
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：220V
- Product Keyword：6090 CNC Router Machine
- Working Area：600*900*200mm
Base Info
- Model NO.：LT-6090
- Table Surface：T-Slot Table or Vacuum Table
- Control System：Ncstudio, Mach3 USB Control System
- Guide Rail：Hiwin Square Linear Guide Rail
- Bed Structure：Welded Steel Tube Bed Structure
- Spindle：1.5kw,2.2kw,3kw Water Cooling Spindle
- Motors and Drivers：Stepper Motor 450b and Leadshine Drivers Ma860h
- Inverter：Fuling Inverter
- Transmission：X, Y, Z Axis by Tbi Ball Screw
- Software：Artcam,Type3
- Instruction Format：G Code *.U00 *.Mmg *.Plt
- Collet Size：Er16,Er20
- Transport Package：Plywood Case
- Specification：1600*1300*1800mm
- Trademark：LINTCNC
- Origin：China
- HS Code：8465990000
- Production Capacity：400sets,Year
Description
Product Parameters
Effective working area
600*900mm
Max.feeding height of Z axis
200mm
Whole structure
Welded steel tube bed structure
Table style
Aluminum T-slot table with PVC
Guide rail
Hiwin square linear guide rail
Driving method
Taiwan Original TBI Ball screw
Spindle
1.5KW water cooling spindle
Invert
Fuling invert
Collect size
ER16
Spindle speed
0-24000rpm

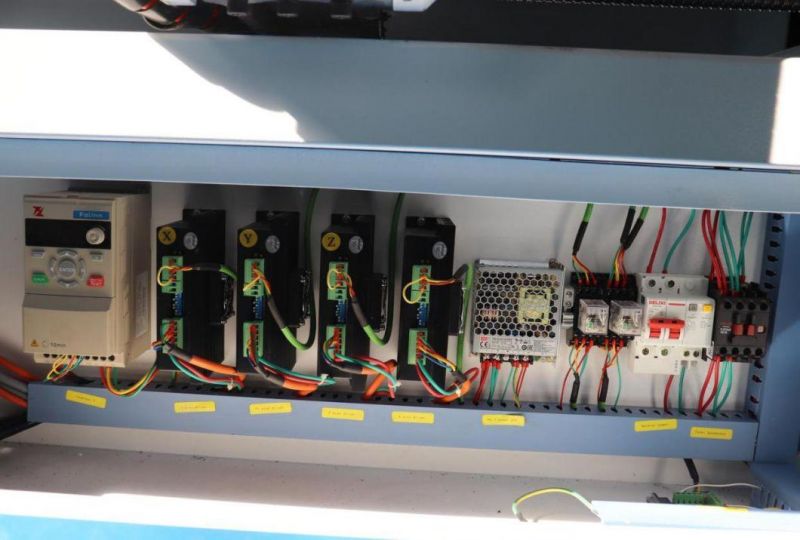

Motors and drivers
86BYG-450B stepper motors and MA860H Leadshine drivers
Control system
Ncstudio control system
Working Accuracy
2,2.2kw water cooling spindle
3,Water tank for cutting soft metal
4,Mach3 USB control system
1. Advertising Materials: such as acrylic, plastic, PVC, etc. The cnc router is used for cutting large characters,
shape of groove for LED and neon and making sign.
2. Metal: copper, aluminum, stainless steel etc.
3. Wood: all kinds of wood, MDF, plywood. etc.
After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.
1) This is the first time I use this kind of machine, is it easy operate?
There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
