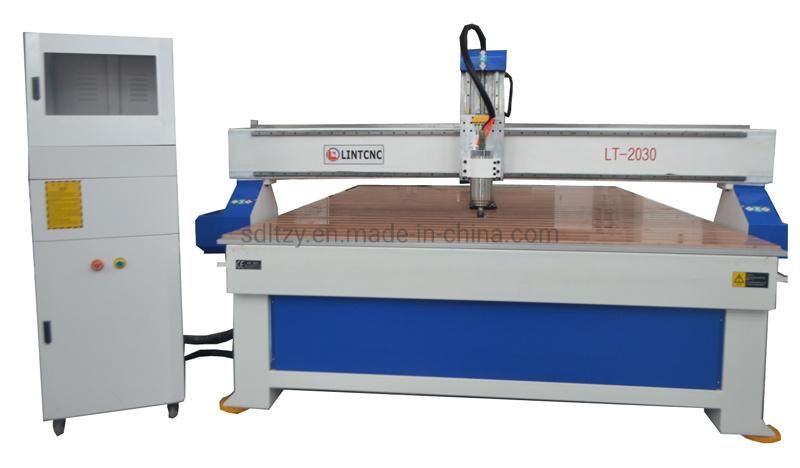

China 2030 CNC Router 4 Axis Price/Woodworking CNC Router Cutting Carving Machine 2030 for Woodworking Furniture
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- Condition：New
- Certification：CE
- CNC or Not：CNC
- Voltage：220V,380V
- Model：Lt-2030 CNC Router
- Working Area：2000X3000mm
Base Info
- Model NO.：LT-2030
- Z Axis Height：200mm
- Table Type：Aluminum T-Slot Table or Vacuum Table
- Spindle Power：3.0kw Water Cooling Spindle
- Collet：Er20
- Spindle Speed：0-24000rpm,Min
- Guide Rail：Hiwin Square Guide Rail
- Transmission：X, Y Axis by Gear Rack, Z Axis Ball Screw
- Motor：Stepper Motor 86byg-450b
- Driver：Leadshine Driver Ma860h
- Control System：Nc Studio,Mach3
- Software：Artcam
- Max. Traving Speed：25000mm,Min
- Tool Sensor：Yes
- Transport Package：Wooden Case
- Specification：3700x2200x1750mm
- Trademark：LINTCNC
- Origin：China
- HS Code：8465990000
- Production Capacity：300 Pieces,Year
Description
Overview
Model LT-2030 CNC Router Working Area 2000x3000mm Max. feeding height of Z axis 200mm Machine structure Welded steel tube, cast iron vertical shafts and steel gantry Table surface Aluminum T-slot table(Vacuum table and vacuum pump) Spindle power 3.0KW Water cooling spindle Collet ER20 Spindle speed 0-24000 rpm/min Guide rail Hiwin square guide rail Transmission X, Y axis by helicia gear rack and Z axis by TBI ball screw Motor and driver Stepper motor 86BYG-450B and Leadshine driver MA860H Control system NC studio/Mach3 with USB/DSP handle Software ArtCAM Max. working speed 12000mm.min Max. traving speed 25000mm/min Working Accuracy <0.05/300mm Instruction formate G code *.u00 *.mmg *.plt Other Tool Sensor; Oiling system; Water pump; Tool Box etc
