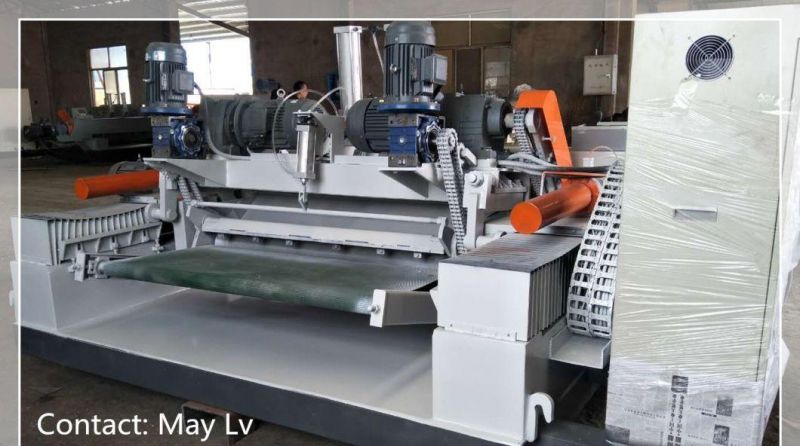

CNC Lead Top Cast Body Plywood Core Veneer Rotary Peeling-Clipping Lathe Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Type：Veneer Peeling Machine
- Automatic：Automatic
- Certification：CE, ISO, FDA
- Voltage：415V
- Max. Log Dia：380mm
- Min. Log Dia：30mm
Base Info
- Model NO.：BXQS1813NC,350B
- Knife Size：1400mm
- Customized：Yes

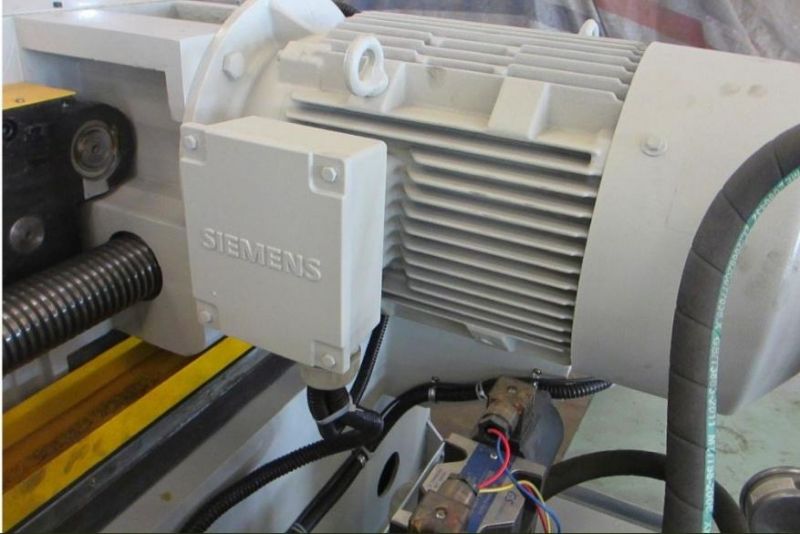

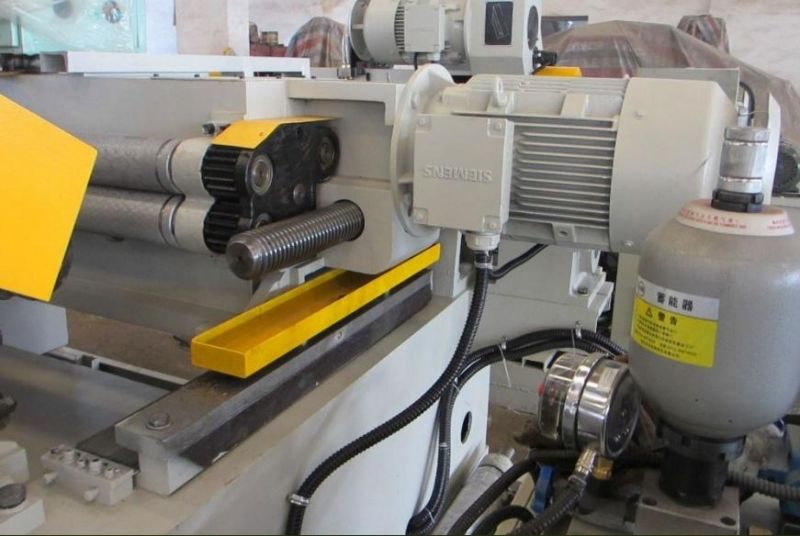

- Motor：Siemens

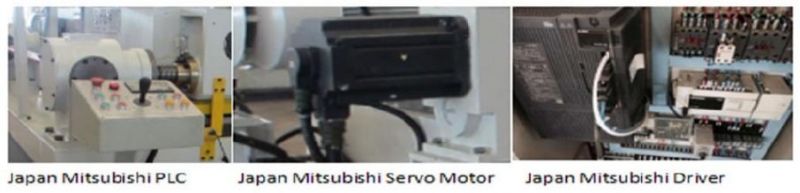

- Inverter：Mitsubishi Drive
- Mechanical Knife：Yes
- Setting Mode：Floor-Type
- Transport Package：Standard Export Packing
- Specification：1.4M VENEER PEELING
- Trademark：METRO MACH
- Origin：Shandong, China
- HS Code：8465960000
- Production Capacity：1000 Sets, Year
Description
Basic Info.
Model NO. BXQS1813NC/350B Knife Size 1400mm Customized Yes Motor Siemens Inverter Mitsubishi Drive Mechanical Knife Yes Setting Mode Floor-Type Transport Package Standard Export Packing Specification 1.4M VENEER PEELING Trademark METRO MACH Origin Shandong, China HS Code 8465960000 Production Capacity 1000 Sets/ YearProduct Description
Product DescriptionCast Iron Body Plywood Peeling MachineTechnical Parameters| Model. No | BXQS1813NC/350B |
| Max. Log Diameter | 380mm |
| Min. Log Diameter | 30mm |
| Knife Size | 1400mm |
| Veneer Thickness | 0.8-3mm |
| Output Speed | 55m/min |
| Voltage | 415v 50Hz |
Motor Powers | Double Roller 15kw Single Roller 7.5kw+7.5kw Feeding Motor 11kw (Servo motor 15kw MITSUBISHI Inverter ) Clipper motor 2.2kw( 3.7kw MITSUBISHI Inverter) Belt conveyor 2.2kw (2.2kw MITSUBISHI Inverter) |
| Mechanical Knife | Yes |
