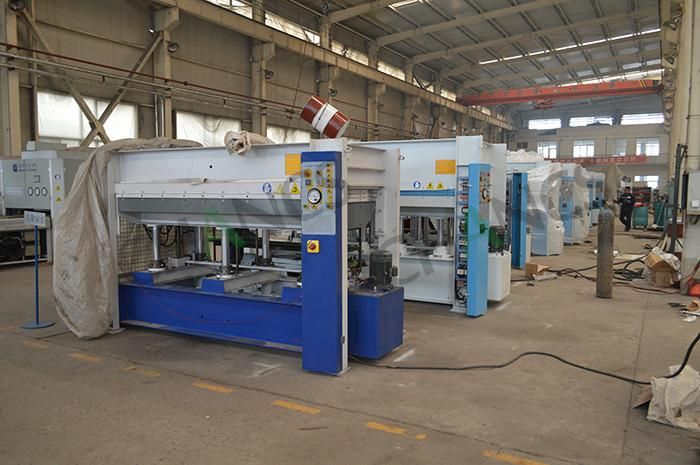

Hydraulic Press for Making MDF and Plywood
Shijiazhuang Chancsmac Machine Technology Co., Ltd.- Warranty：One Year
- Work Forms：Hydraulic Pressure
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：High Pressure
Base Info
- Model NO.：BY214x8,12(3)H1RC
- Pressing Layer：Multi Layer
- Work Mode：Continuous
- Controlling Mode：Artificial
- Automatic Grade：Semiautomatic
- Certification：CE
- After-sales Service：Free Service on Internet
- Condiation：Brand New
- Max Temp：120 Degree
- Multi Layers：Three Layers
- Heating Type：Electric
- Heating Medium：Thermal Oil
- Total Pressure：120t
- Power：52.75kw
- Voltage：3 Phase 380V, 50Hz, or Customized
- Delivery Time：20 Working Days
- Shipping：20 Feet Container
- Transport Package：PE Film
- Specification：2500x1300mm, 8.2′x4.26′
- Trademark：CHANCSMAC
- Origin：China
- Production Capacity：10 Sets, Month
Description
HOT PRESS MACHINEModel BY214×8/12(3)H1RC Total pressure 1200KN Working layer 3 Platen No.& Size 4-2500x1300x42mm(Covered with mylar) Max. Pressure 3.7kgf/m2 Platen opening 120mm Cylinder No.& Dia 8 pieces x φ85mm Max temperature 120ºC Heating way Electric heating with thermic oil Heating medium: Thermic oil Installation power 4+0.75+48KW Platen opening way Automatically Closing speed 30mm/s Loading way Length side, Manually Voltage 3PE 380V 50Hz Packing Bare but properly secured Gross Weight About 7500.00 kg Overall size L3650xW1710xH2110mm Container need 1X20'GP Delivery time 20 working days Gurantee 1 year for machine frame, 6 months for electrical parts
4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q:Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q:What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q:What is warranty time?
R: One year.
