• Model NO.：BB1332
• HS Code：846596000
• Production Capacity：20sets,Month

Basic Info.

Model NO. BB1332 HS Code 846596000 Production Capacity 20sets/Month

Product Description

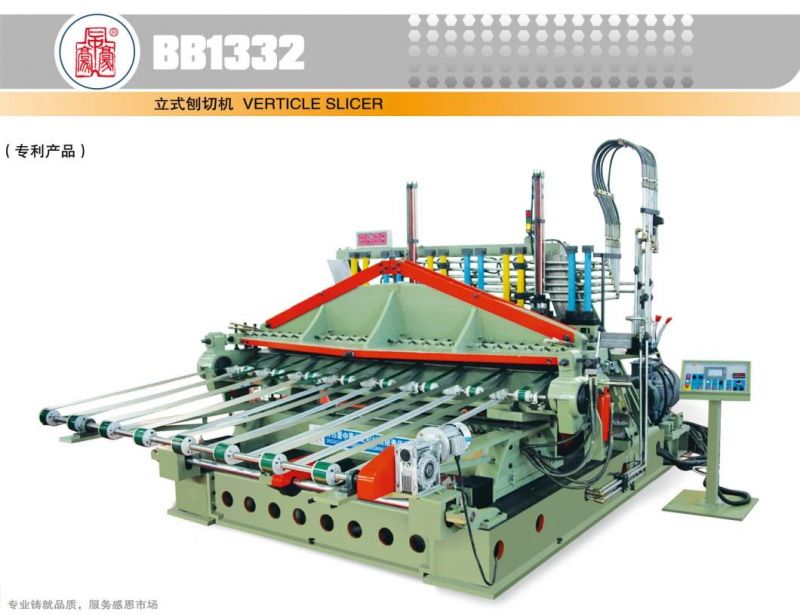

Efficient Safe High Cost Performance WoodWorking   Bertical Veneer Slicer Machine
 Efficient  Vertica lVeneer Slicer  Safe High Cost Performance Wood Working Machine

Description

MODEL	BB1332
Max allowed wood size	3000x450x500mm
size of the knife	3200x200x19mm
slicing thickness	0.2-3mm
slicing speed	max.80pcs/min
wood clamping method	Hydraulic control
Total power	41.25kw
Main motor	30kw
Hydraulic motor	5.5kw

Function
It is mainly for slicing solid wood, engineer wood and other composite board, working efficiency is high, and veneer thickness is uniform. It is widely adopt in decorative veneer of plywood, furniture, flooring, construction industry and so on.

Characteristic
1Main motor adopts direct current motor. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min
2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system
3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency

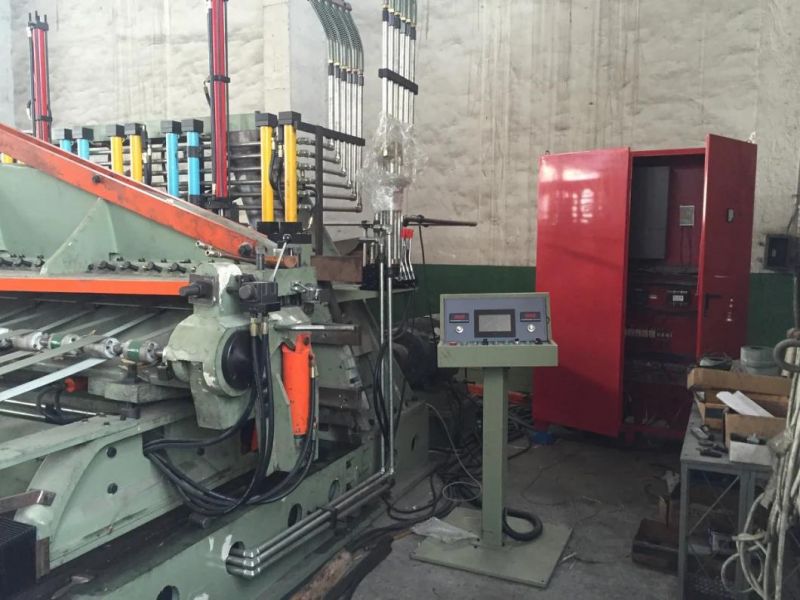

4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator
5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed
8 Self lubricating center can automatically apply lubricant regularly to every moving mechanism; guarantee movement normally smoothly and precisely.



Validity: 60 Days
Payment: 30% TT deposit as down payment, 70% balance by TT before shipment, or LC
Package:Bare package and fit in container directly.
Lead time: 60 days after receive the deposit.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Installation: If need to install, the buyer bear round-trip ticket from China to buyer site, Visa fee, food, accommodation and local transportation of seller's engineer, plus USD100.00 service fee per engineer per day.
