• Model NO.：1325D-1
• Trademark：GJH
• Origin：Shandong China
• HS Code：8465990000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. 1325D-1 Trademark GJH Origin Shandong China HS Code 8465990000 Production Capacity 100 PCS/Month

Product Description

Customized:

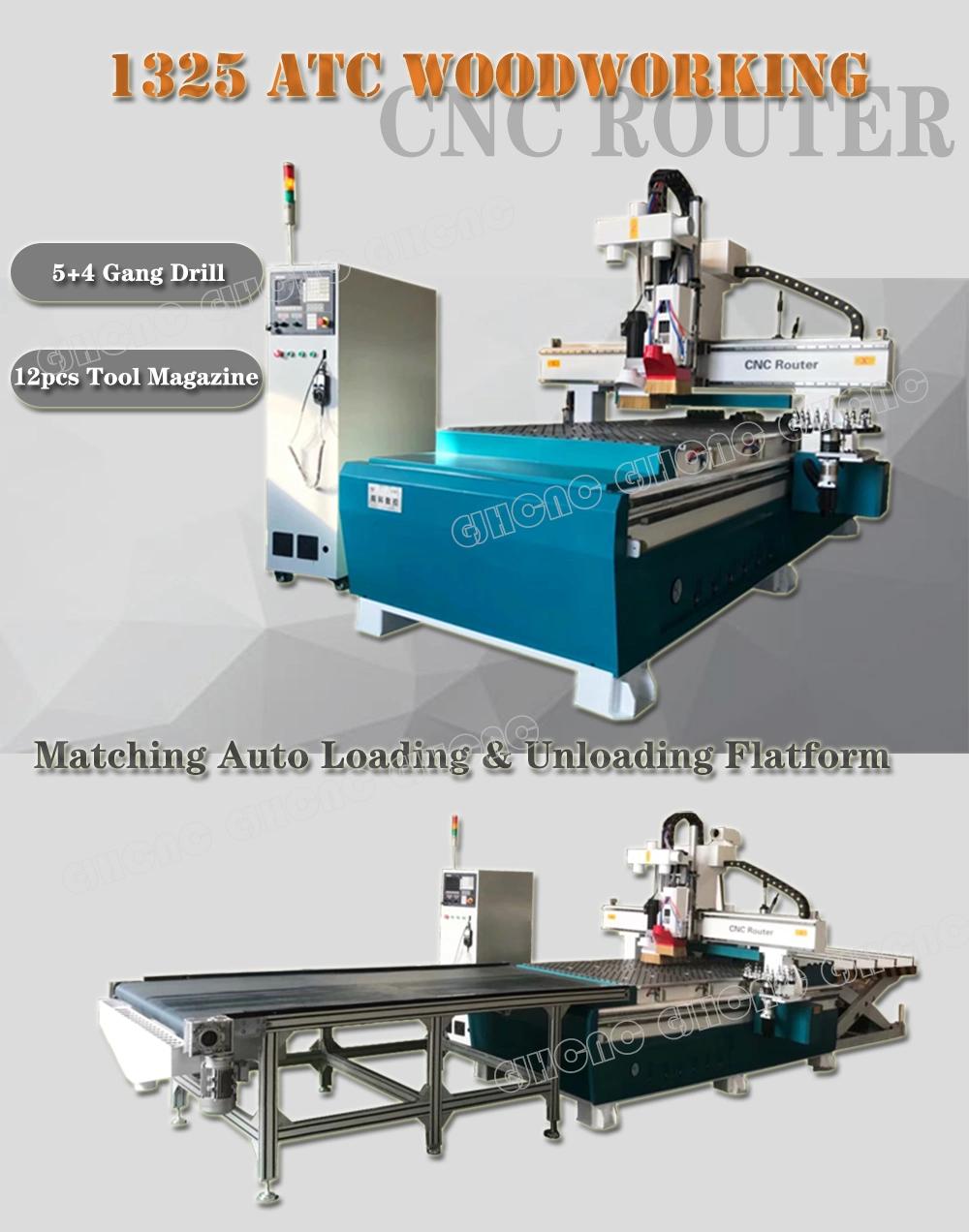

1325 ATC Matching with Gang Drill  Woodworking CNC Router Machine

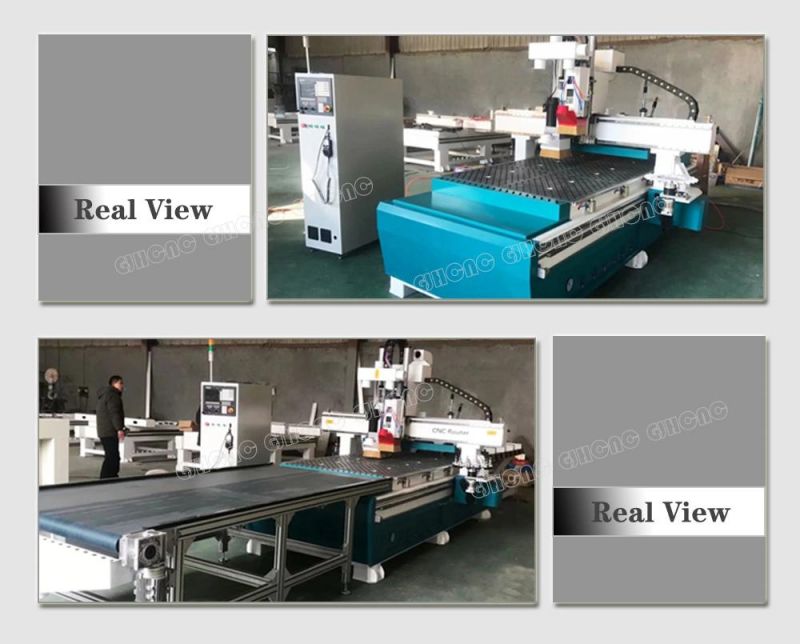

Could Match Auto Loading & Unloading Flatform

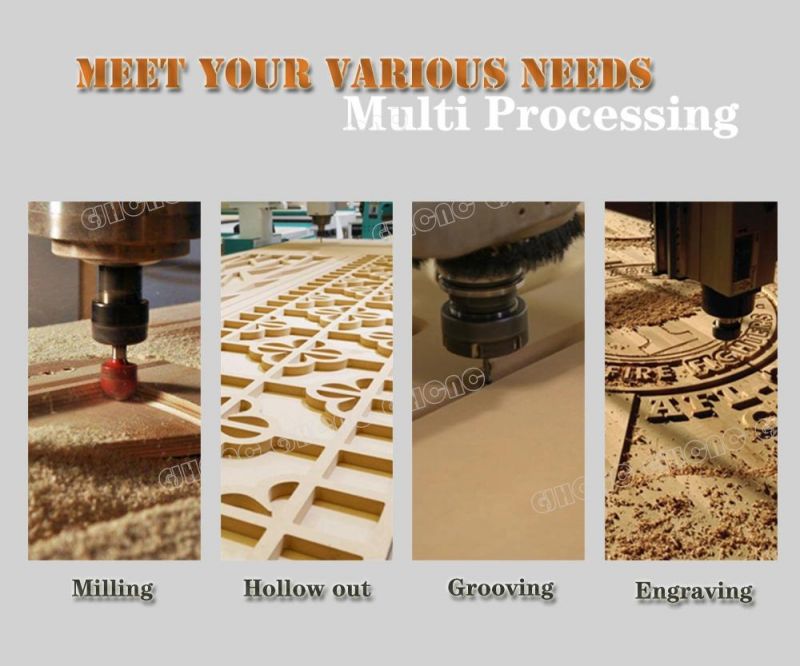

1.All IN ONESTEP-Automatic loading, cutting, drilling, slotting, automatic offloading.
2.Automatic loading and off-loading system matching with gang drilling
 The Suction Cup Loading Device and Integrated Vacuum Cleaning System is standard on the Full
  Line CNC Router. The Integrated Vacuum Cleaning System ensures that all dust and debris is
  removed from the machine table prior to loading the next sheet. The industrial strength vacuum
  cups will load and position sheet material onto the table top without scratching the surfaces and
  aligns them perfectly against the pop up pins.

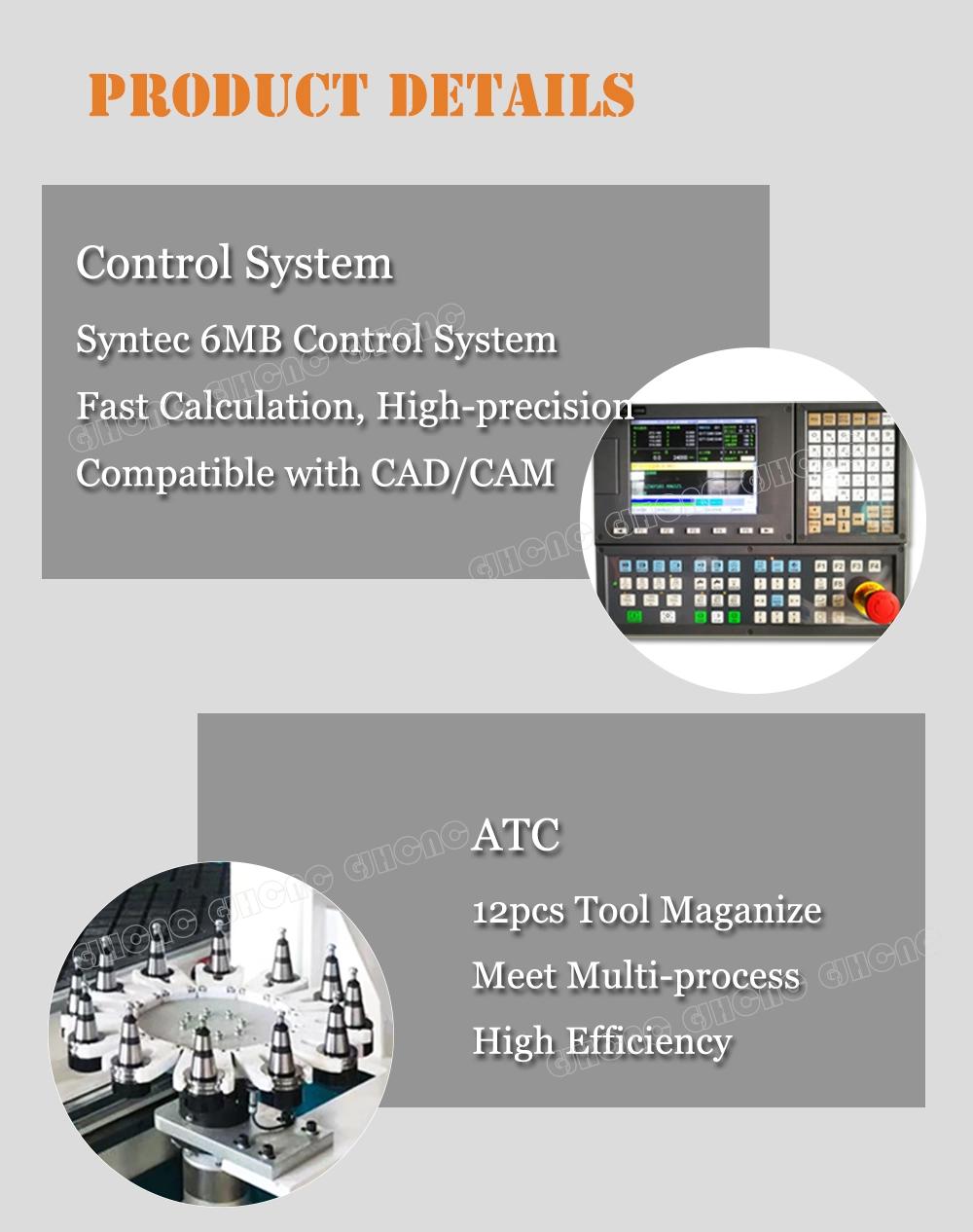

3.Syntec 6MB control system
   Humanizing design of the machine control interface,very simple to operate, requiring only minimal
   training of operator, do not need specialized operation technical personnel, high efficiency.

	Specification	Parameter
1	Working area	X axis	1300mm
		Y axis	2500mm
		Z axis	200mm
2	Working area		1300mm*2500mm
3	Accuracy	Processing precision	0.02mm
		Reposition precision	0.02mm
4	Drove mode	X axis	Helical rack and pinion
		Y axis	Helical rack and pinion
		Z axis	Ball screws
5	Speed	Max travel speed	45000mm/min
		Max engraving speed	30000mm/min

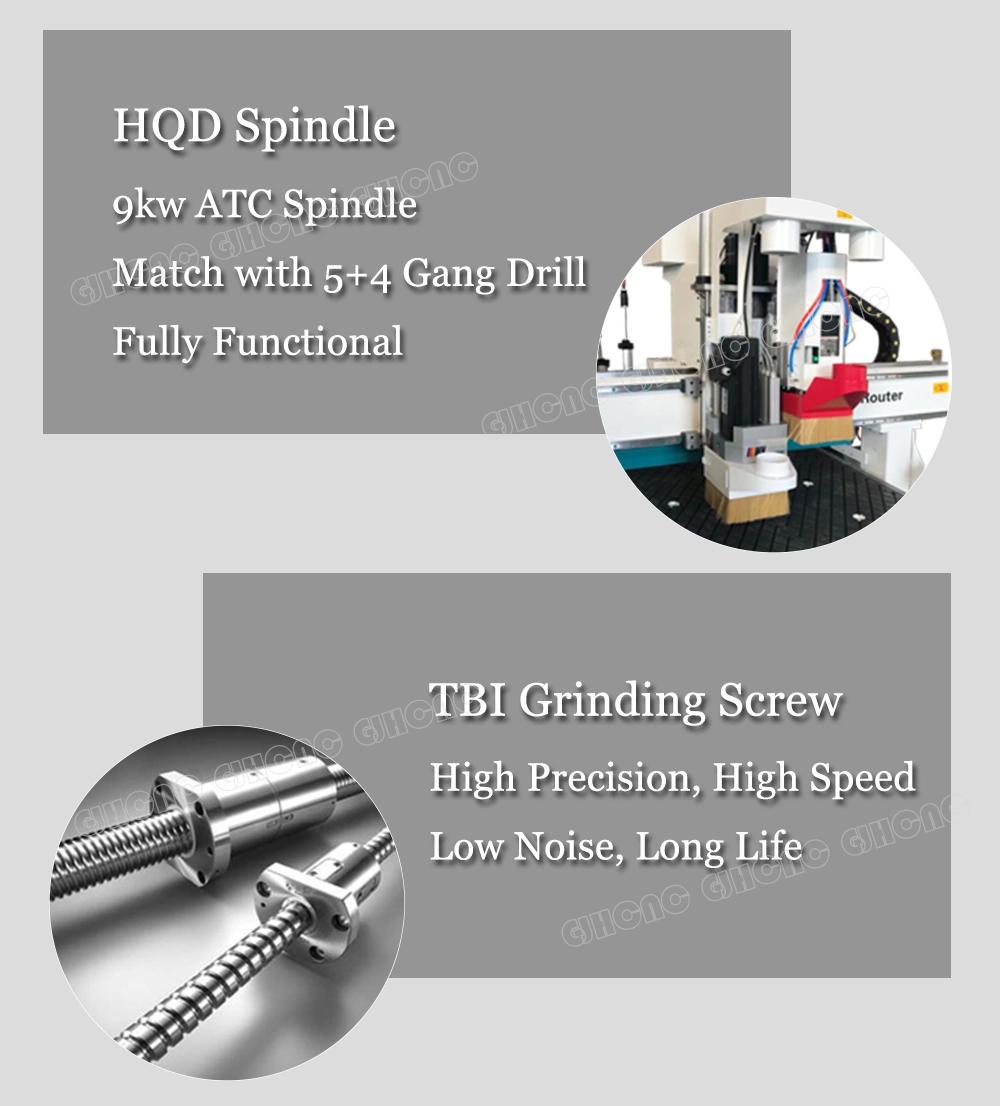

6	Spindle(Air-cooling)	Spindle power	9KW  HQD
		Spindle speed	0-24000r/min
7	Running mode		Yaskawa servo motor
8	Operating voltage		AC380V/50Hz
9	Command code		G code
10	Operating system		SYNTEC system
11	Table surface		Vacuum and T-slot combined
12	Computer surface		USB
13	Flash memory		128M
14	Collet		ER32
15	Frame		Welded structure
16	Packing size		5000mm*2250mm*1800mm

Automatic loading and unloading ATC CNC Router machining centre  for panel furniture. If you have any specific requirements , customization is available.
