• Model NO.：1325
• Ball Screw：PMI, Taiwan
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. 1325 Ball Screw PMI, Taiwan Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 PCS/Month

Product Description

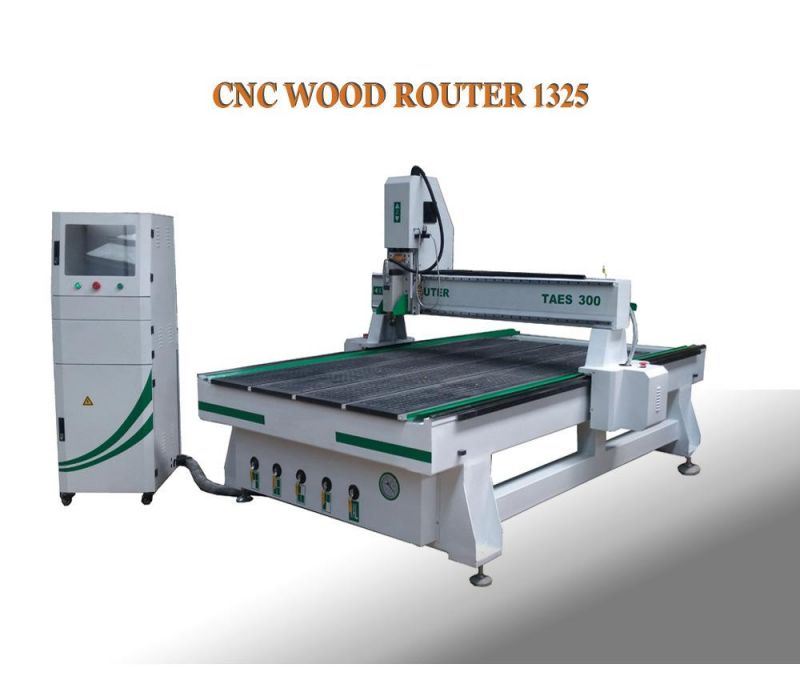

1325 CNC Router machine for engraving and cutting
Wood, Acrylic, Plastic, EPS, MDF
from professional cnc router manufacturer in China






Industries :  Processing various kinds of moulds and furniture such as door, window, cabinet, craft wooden door, screen and so on.
Materials:   Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.

1. Advanced control system: Taiwan SYNTEC or NC STUDIO
2. Compatible with software such as:TYPE3/ARTCAM/UG/PRO- E/UCANCAM/AUTOCAD/MASTERCAM
3. Functions of power-off recovery, continuation on break point, time anticipation.
4. Excellent components: HIWIN guild rail and ball screws, low noise spindle

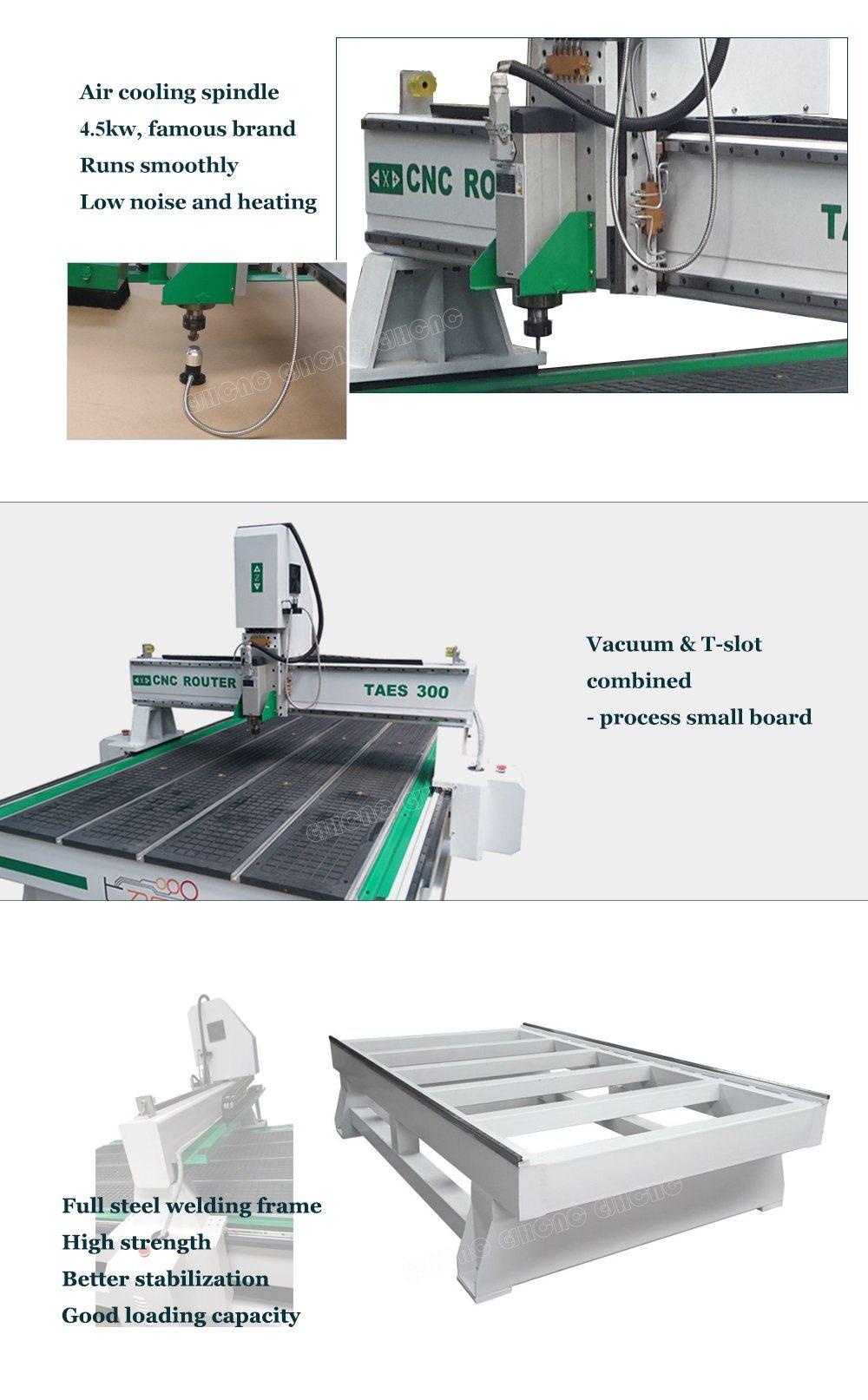

5. Welding steel structure and 10mm gantry
6. Powerful vacuum table divided to 6 zones, can adsorb different size materials.
7. 3 spindles work in turn as request,  save change tool time.
8. Two motors for Y axis, running steadily
3. Special configuration could be customer-oriented designing.


















NO	Performance index	Performance index	Parameter
1	Working area	X axis	1300mm
		Y axis	2500mm
		Z axis	200mm
2	Table size		1300mm*2500mm
3	Accuracy	Processing precision	0.05mm
		Reposition precision	0.05mm
4	Drove mode	X axis	Helical rack and pinion
		Y axis	Helical rack and pinion
		Z axis	Ball screws
5	Speed	Max travel speed	30000mm/min
		Max engraving speed	15000mm/min
6	Spindle(water-cooling)	Spindle power	5.5KW *3
		Spindle speed	0_24000r/min
7	Running mode		Servo motor
8	Operating voltage		AC220V/50HZ
9	Command code		G Code
10	Operating system		Nc Studio
11	Table		Vacuum + T-slot combinded
12	Machine's size		3100x2200x1800mm

Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.

After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in our factory.
4. Free suggestion and consulting, lifetime technical support and service


1325 Wood, Acrylic, MDF, Plastic, Rubber, soft metal, Engraving and Cutting machine
If you have specific requirement about cnc router for wood, mdf, pleast contact with us.
customization is available
