• Model NO.：1325
• Trademark：IGOLDENCNC
• Origin：China
• HS Code：84659900
• Production Capacity：2000 Per Year

NO.

Model

IG-1325

1

Working area

1300x2500x200mm

2

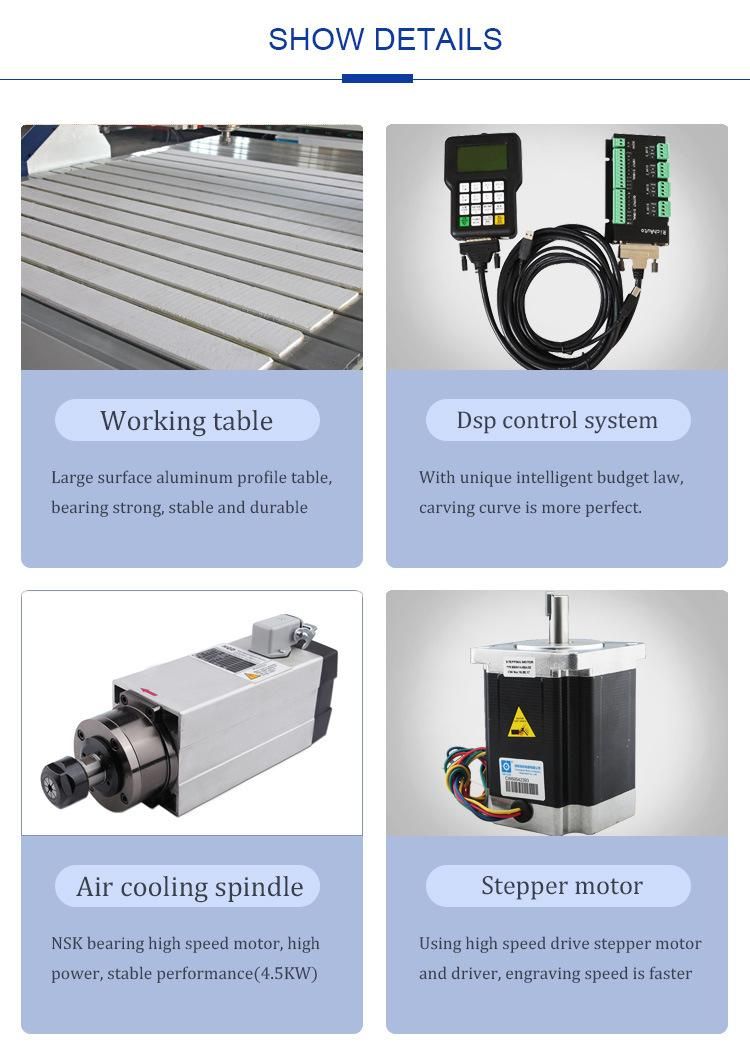

Working table

Vacuum absorb table with T-slot or Aluminum table

3

Spindle

3kw/4.5kw/5.5kw/6kw air cooling spindle

4

Cooling system

Air cooling

5

Control system

DSP or NC Studio

6

Inverter

Fuling inverter

7

Transmission

XY-axis Rack gear,Z-axis ball screw

8

Guide rail

Square HIWIN guide rail from Taiwai

9

Ball screw

Taiwan TBI ball screw

10

Drive system

Servo motor and driver

11

Machine body

Square tube welding body

12

Limit Switch

Japan Omron

13

Electrical components

France Schneider

14

Traveling speed

30m/min

15

Working speed

20m/min

16

Control software

Artcam/Type3,other CAD/CAM

17

Command code

G Code*.u00*.mmg*.plt

18

Voltage

AC220V/380V-50HZ/60HZ
