Surfacing and Thicknessing Planer---Double Side

Zhengzhou Invech Machinery Co., Limited
  • Type：Double-sided Pressure Planer
  • Working Depth：100-200mm
  • Working Width：200-400mm
  • Drivetrain：Worktable Elevating Drivetrain
  • Enter Method：Electrical
  • Motor Power：＞10Kw

Base Info

  • Cutter Shaft：8
  • Spindle Speed：＜5000rpm
  • Process Type：Heavy Processing
  • Certification：CE
  • Max. Planing Width mm：450mm
  • Max. Planing Thickness mm：180mm
  • Transport Package：Soft Film in Containers
  • Specification：20FT Container
  • Trademark：INVECH MACHINERY
  • Origin：China
  • Production Capacity：200PCS,Year

Description

Basic Info.

Cutter Shaft 8 Spindle Speed ＜5000rpm Process Type Heavy Processing Certification CE Max. Planing Width mm 450mm Max. Planing Thickness mm 180mm Transport Package Soft Film in Containers Specification 20FT Container Trademark INVECH MACHINERY Origin China Production Capacity 200PCS/Year

Product Description

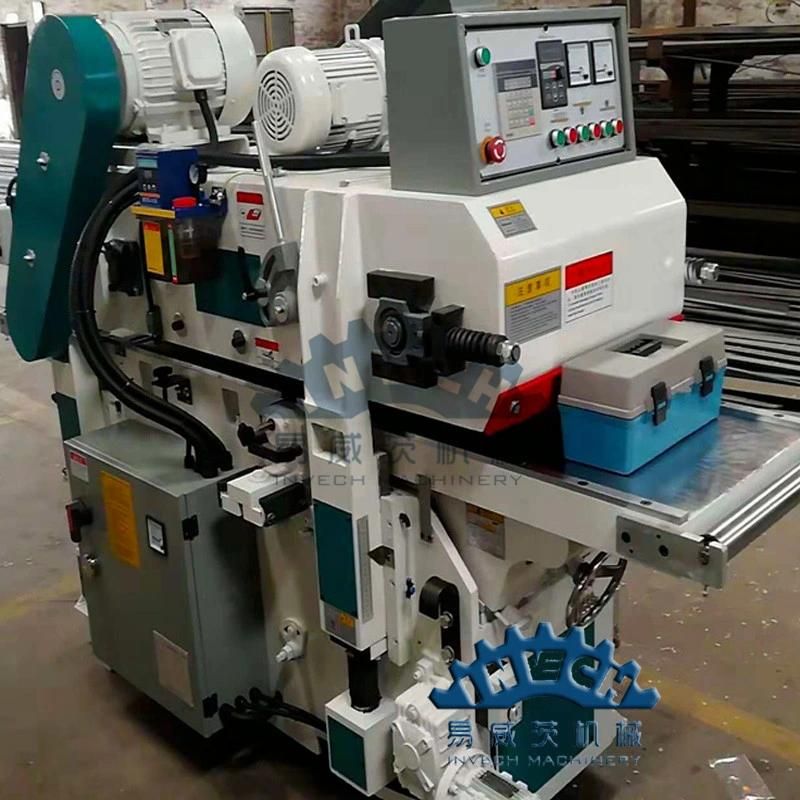

Surfacing and Thicknessing Planer---Double Side

For wood planks/wood beams planing.

Technical parameters
Technical SpecificationMB2045
Max. planing width mm450
Max. planing thickness mm180
Min. planing length mm260
Min. planing thickness mm10
Top cutter planing capacity mm4 max.
Bottom cutter planing capacity mm4 max.
Feeding speed m/min3-20
Spindle speed r/min5500
Planing spindle diameter mmØ101
Bottom horizontal cutter motor kW5.5
Top horizontal cutter motor kW7.5
Feed motor kW2.2
Lifting motor of feed mechanism kW0.37
Overall dimensions mm2500×1050×1750
Net.weight kg2500
