• Model NO.：RJ-1325
• Material：Aluminum, Iron
• Automatic：Automatic
• Transport Package：Standard Export Wooden Case
• Specification：1300x2500mm
• Trademark：Ruijie
• Origin：China
• HS Code：84609090
• Production Capacity：100 Set,Month

Basic Info.

Model NO. RJ-1325 Material Aluminum, Iron Automatic Automatic Transport Package Standard Export Wooden Case Specification 1300x2500mm Trademark Ruijie Origin China HS Code 84609090 Production Capacity 100 Set/Month

Product Description

Woodworking Center RJ-1325

Features

1.Welded structure by thick profiled steel,stabilized under high temperature,ensures minimmum distortion,excellent rigidity and powerful strength.

2.Double motors and drivers of Y axis ensure steady movement.

3.Rack gear transmission ensures fast speed and high accuracy.

4.Imported linear square guide rail ensures high accuracy and maximum work load-bearing.

5.Optimized mechanical and electrical desigh with well-selected brand parts minimizes breakdpwn rate.

6.High power spindle,working powerful with low noise,guarantees long time mass processing.

7.Function of continuous working at stop point by power failure.

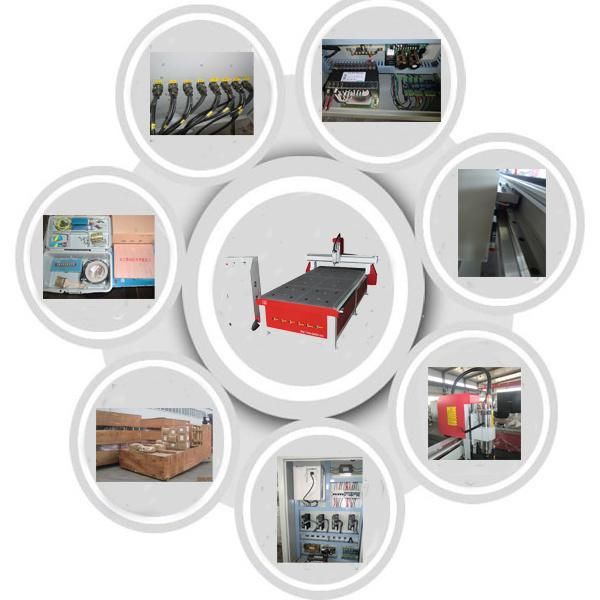

Pictures of Main Parts

Samples Pictures

Warranty and after sales service

1. One year warranty, free service if there is any problem during the warranty period.

2. 24 hours online service each day, free technical support.

Working travel	X axis 1300 mm  Y axis 2500 mm    Z axis 230 mm
Table size	1300 mm*2500 mm
Maximum speed	X Y axes 60m/min
Spindle	Voltage: AC380v  Frequency: 400Hz
Italy HSD	Speed: 24000r/min  Power: 8kw
Pressure	Air-blow pressure 0.4 MPa      Tool hold Pressure 0.7 MPa
Pressure protection	No less than 0.7
Dust collecting power	3.0kw
Vacuum power	5.0kw (phenol aldehyde laminated cloth board)
Total power	23.0kw
Mechanism size	Area: 1.8m*3.3m    Height: 1.5m  Weight: 850kg
Japanese servo motor	Large torque, which ensures stable operation, low noise, accurate position. The idle strake speed can be more than 60m/min.
Tool storage	8 tools
Diameter of cutter head	3.175mm, 6mm, 12.7mm.
Cubage	18.0 CBM
