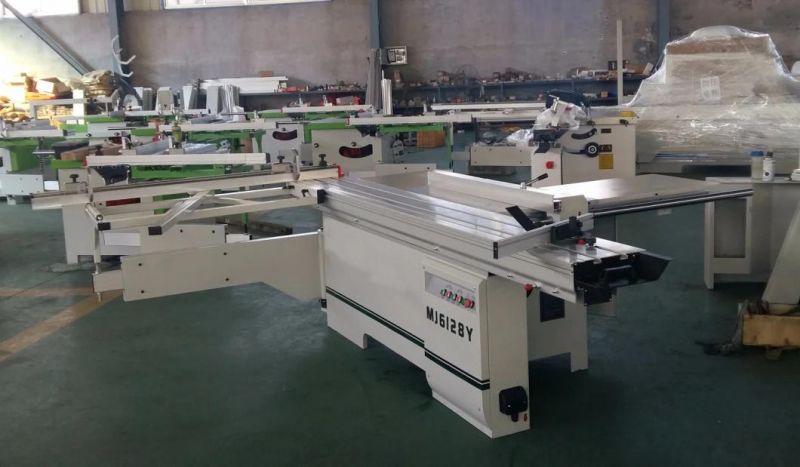

Mj6128y Horizontal Sliding Table Panel Saw Woodworking Machinery

Qingdao High-Class Service Import & Export Co., Ltd.
  • Type：Table Panel Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：CNC
  • Automatic Grade：Manual
  • Precision：Precision

Base Info

  • Model NO.：MJ6128Y
  • Customized：Customized
  • Condition：New
  • Color：White
  • Name：Sliding Table Saw
  • Max Sawing Length：2800mm
  • Max Sawing Width：1250mm
  • Saw Blade Diameter：300mm
  • Spindle Speed：4000,6000rpm
  • Tiling Saw Blade：90
  • Main Motor Power：4kw
  • Weight：700kg
  • Transport Package：as Customer′s Requirment.
  • Specification：2850x3150x900
  • Trademark：Fengkai
  • Origin：China
  • HS Code：84659100
  • Production Capacity：120sets,Month

Description

Basic Info.

Model NO. MJ6128Y Customized Customized Condition New Color White Name Sliding Table Saw Max Sawing Length 2800mm Max Sawing Width 1250mm Saw Blade Diameter 300mm Spindle Speed 4000/6000rpm Tiling Saw Blade 90 Main Motor Power 4kw Weight 700kg Transport Package as Customer′s Requirment. Specification 2850x3150x900 Trademark Fengkai Origin China HS Code 84659100 Production Capacity 120sets/Month

Product Description

MJ6128Y Horizontal Sliding Table Panel Saw Woodworking Machinery
Product Description
Mj6128y Horizontal Sliding Table Panel Saw Woodworking Machinery
Dimension sliding table2800*320mm
Maximum sawing length2800mm
Maximum sawing width1250mm
Saw blade diameter300mm(250-315)
Spindle speed4000/6000rpm
Spindle diameter30mm
Tiling saw blade0-90
Main motor power4kw(5.5kw)
Scribing blade specifications120mm
Scribing blade speed8000r/min
Shaft diameter20mm
Scoring power0.75kw(1.1kw)
Weight700kg
Wooden boxed weight750kg
Dimensions2850*3150*900mm

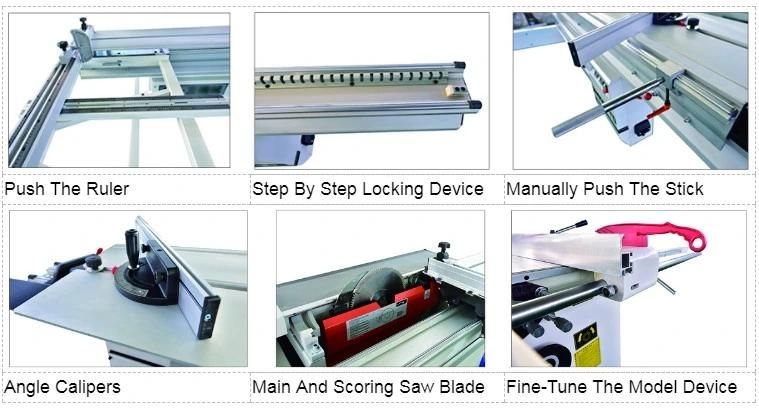

Details
Mj6128y Horizontal Sliding Table Panel Saw Woodworking Machinery
Applicable products: MDF,particleboard,wood-based panels,ABS panels,PVC panels,plexiglass,solid wood and other wood structure and hardness similar to the plate.
Working principle: Hand move the mobile workbench before and after the move to achieve the sawing process,scribe saw sawing in advance,the main saw blade can be used to carry out variable speed sawing.
Achieved effect: Manual and easy to feed when the labor-saving,high precision,access to good quality sawing.
Structure advantages: Mobile workbench guide rail with high strength extruded aluminum alloy,high strength,non-deformation,chrome rod structure,high positioning accuracy,table surface oxidation treatment,beautiful wear-resistant.

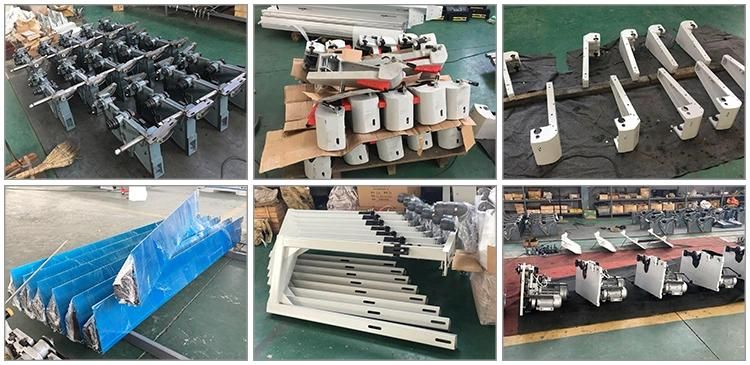

Spare Parts
Mj6128y Horizontal Sliding Table Panel Saw Woodworking Machinery
Packaging
Mj6128y Horizontal Sliding Table Panel Saw Woodworking Machinery
About Us
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
Mj6128y Horizontal Sliding Table Panel Saw Woodworking Machinery
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
   a. 12 months warranty for the whole machine
   b. Technical support by phone, email or WhatsApp/Skype around the clock.
   c. Friendly English version manual and operation video CD disk
   d. Engineer available to service machinery overseas.

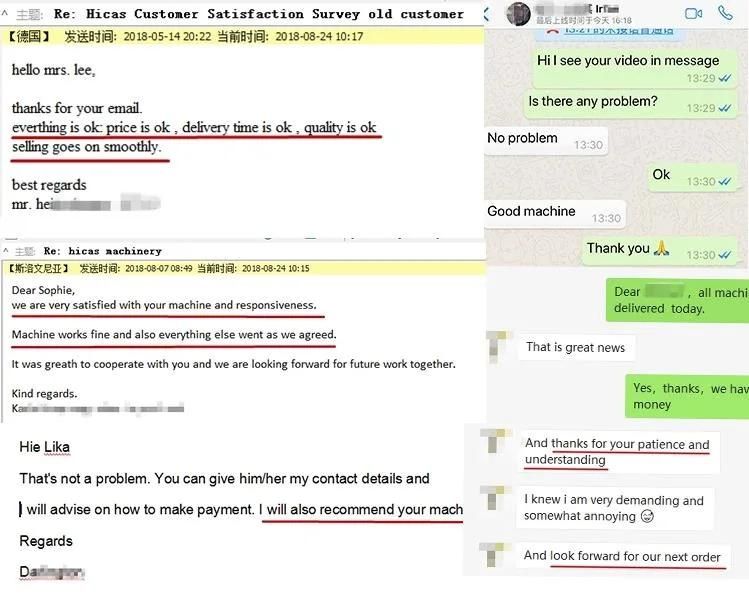

7. Customer feedbacks
