Atc Wood Engraving Carving Woodworking Cutting CNC Machine

Jinan Firm CNC Equipment Co., Ltd.
  • Type：Vertical Uniaxial Wood Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Single-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC
  • Certification：CE, ISO, FDA

Base Info

  • Model NO.：FM1325
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Product Name：Woodworking Cutting CNC Machine
  • Working Size：1300*2500*200mm
  • Spindle：4.5kw 6.0kw
  • Table：Vacuum Combined T-Slot Table
  • Guid Rail：Taiwan Hiwin Guid Rail
  • Transmission：X Y: Gear Transmission Z: Ball Screw
  • Inverter：Fuling,Delta Inverter
  • Driver System：Stepper,Servo Motor and Drivers
  • Contorl System：Weihong Nk105 DSP Control System
  • Reposition Accuracy：0.02mm
  • Transport Package：Standard Plywood Case
  • Specification：CE, SGS, ISO
  • Trademark：2500*1300mm
  • Origin：Jinan, China
  • HS Code：8465990000
  • Production Capacity：100 Sets,Month

Description

ItemModelFM13251Working area1300*2500*250mm2Feeding height250mm3X/Y/Z axis reposition accurancy+/- 0.02mm4Max running speed50m/min5Max working speed30m/min6X/Y axis transmission Gear and rack7Z axis transmission Ball screw8Guide railTaiwan HIWIN square guide rail 9Working tableVacuum and T-slot table10Spindle power4.5kw air cooled spindle * 4pcs11Max spindle speed18000 rpm/min12ColletER3013Control systemNK260 or Syntec control system14Motor Leadshine servo motor / Yaskawa servo motor 15Working voltage 380V/ 3P/ 50HZ -60HZ16G.W./ N.W.1800KG / 1600KG17Command G Gode18Computer interfaceUSB port19Limit switchJapan Omron

Main Parts of the machine can do some changes as your requirement

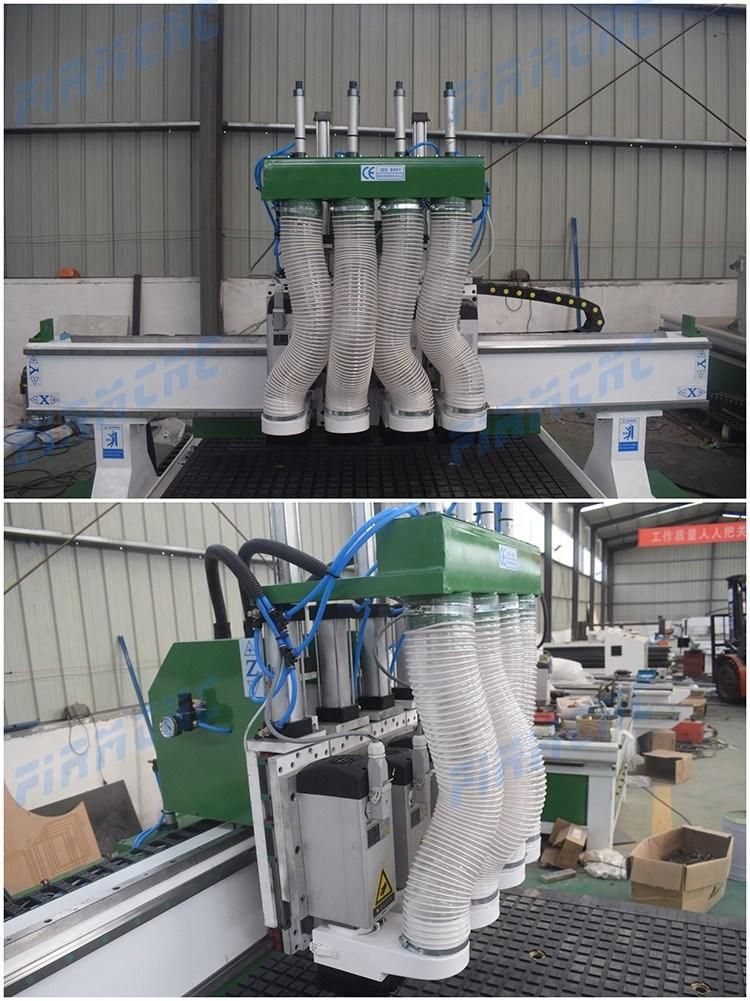

1> Water cooling spindle / air cooling spindle : Italian HSD spindle , 3kw, 4.5kw . 6 kw
2> Stepper and Servo motor
3> Rack and pinion , ball screw
4> Software: DSP. Ncstudio control
5> Square orbit / a circular orbit
6> Aluminum T-slot table / Vacuum table / T-slot & vacuum combined table
Atc Wood Engraving Carving Woodworking Cutting CNC Machine
Atc Wood Engraving Carving Woodworking Cutting CNC Machine

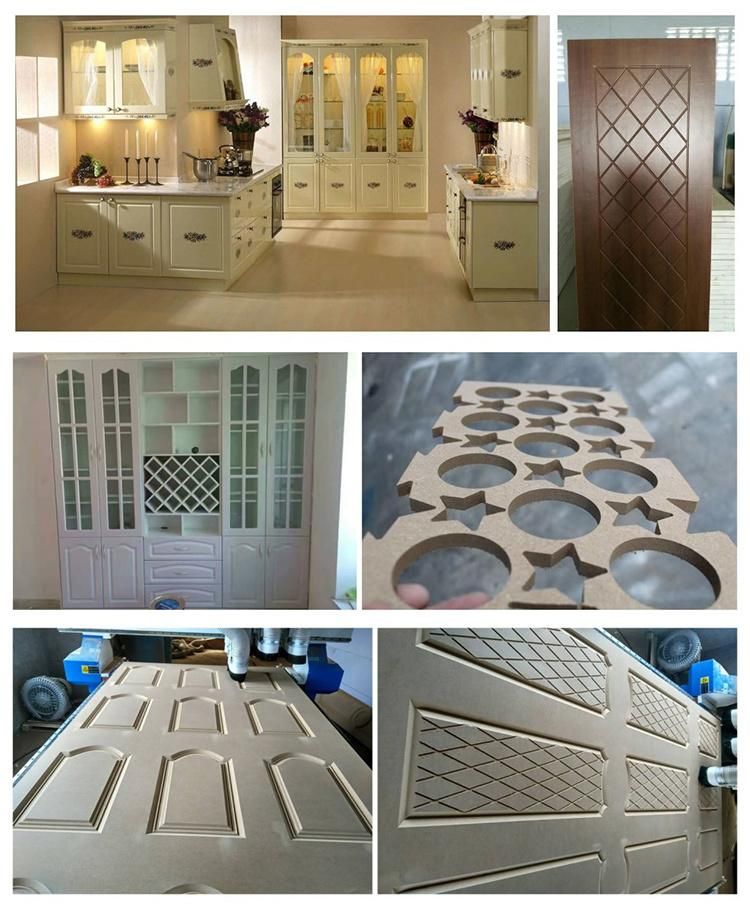

Application:
Furniture industry: wooden doors, windows, folding screens, tables, chairs, and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.Mainly for the production of cupboard door, real wooed, the furniture and so on, also can be used in the production of MDF cutting

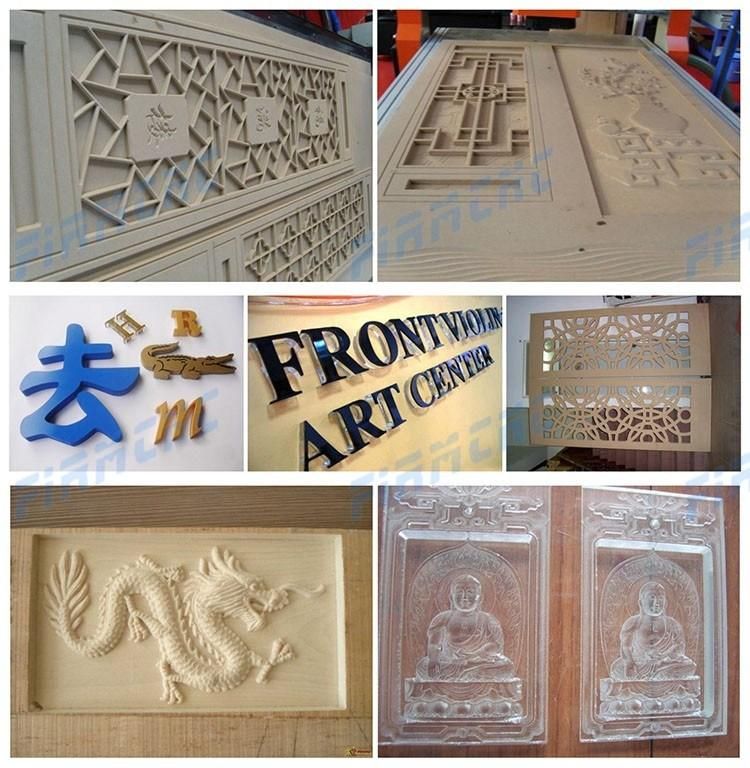

Samples:
Atc Wood Engraving Carving Woodworking Cutting CNC Machine
Atc Wood Engraving Carving Woodworking Cutting CNC Machine

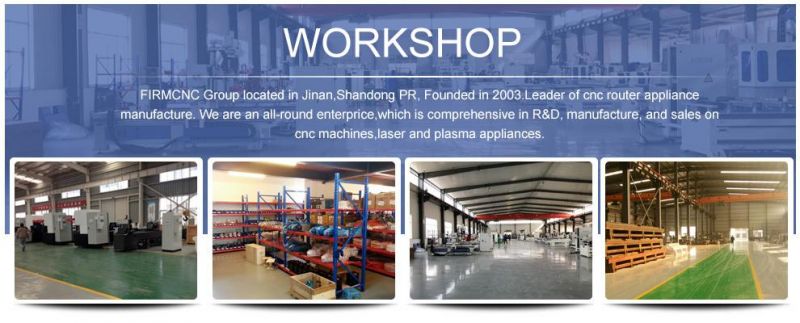

Jinan Firm CNC Equipment Co., Ltd is located in Jinan,Shandong PR, Founded in 2003. Loader of cnc router appliance manufacture.
We are an all-round enterprice, which is comprehensive in R&D, manufacture, and sales on cnc router appliances.
Atc Wood Engraving Carving Woodworking Cutting CNC Machine
Atc Wood Engraving Carving Woodworking Cutting CNC Machine
Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Atc Wood Engraving Carving Woodworking Cutting CNC Machine
Shipping and packaging:
Firstly, packed the woodworking cnc router machine with plastic sheet for clearing and damp proofing.
Secondly, then put the cnc router in the plywood case for safety and clashing.
Thirdly, transport the plywood case into the container.
Atc Wood Engraving Carving Woodworking Cutting CNC Machine
FAQ:
1.Can you recommend a cnc router to me ?
Yes, In order to give you a suitable cnc router,pls tell me your working area ? processing materials ?
Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working one year without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.
