• Model NO.：FM6090
• Customized：Customized
• Condition：New
• Color：Customized
• Working Size：600*900mm
• Spindle Rate：1.5kw,2.2kw
• Transmit Way：Taiwan Imported Ball Screw
• Working Voltage：AC380V,50Hz AV220,50Hz
• Working Software：Windows98,2000,XP
• Transport Package：Standard Export Woode Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：China
• HS Code：8521909090
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM6090 Customized Customized Condition New Color Customized Working Size 600*900mm Spindle Rate 1.5kw/2.2kw Transmit Way Taiwan Imported Ball Screw Working Voltage AC380V/50Hz AV220/50Hz Working Software Windows98/2000/XP Transport Package Standard Export Woode Case Specification CE, SGS, ISO Trademark FIRMCNC Origin China HS Code 8521909090 Production Capacity 30 Sets/Month

Product Description

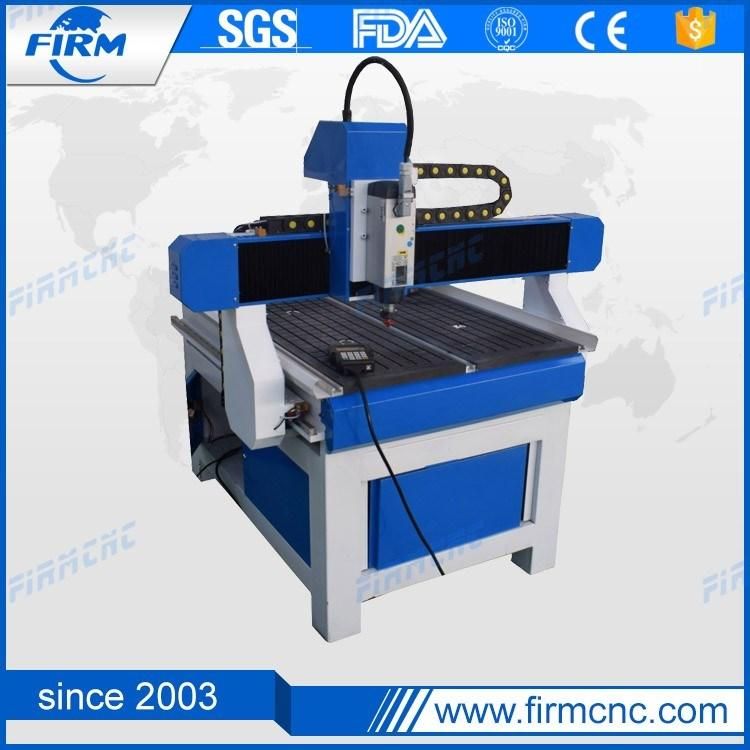

Best Style! Factory Price 6090 Advertising CNC Router



Main Feature

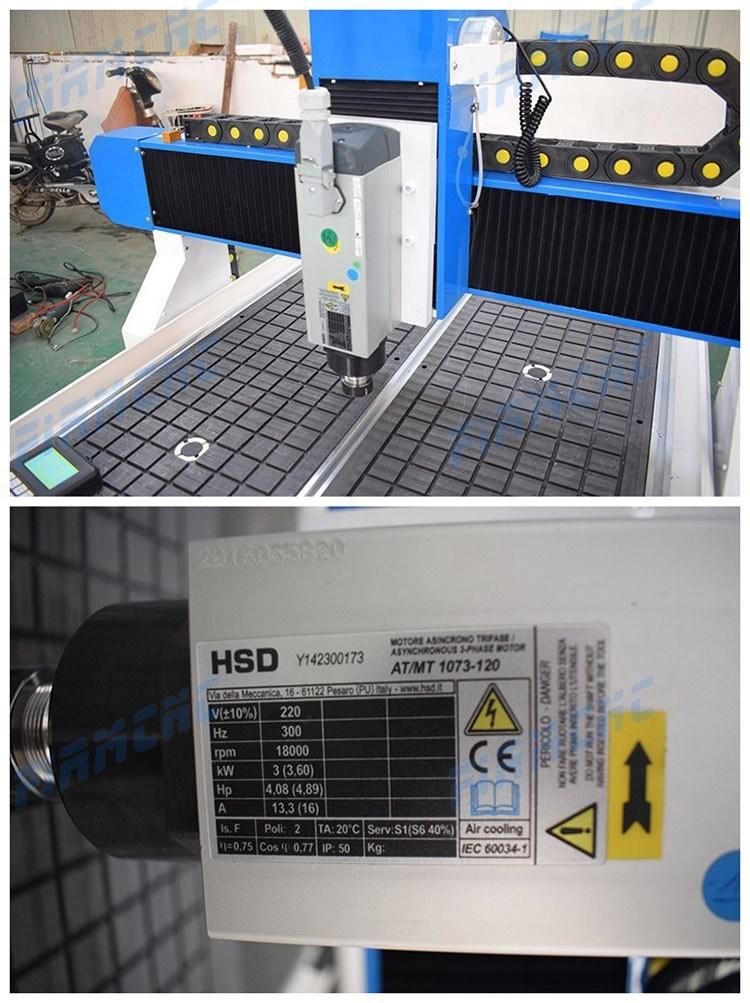

1.3.0KW HSD aircooling spindle(optional HQD or water cooling spindle), high precision, long life time, steady working, easy to start up.
2.Thicken square pipe structure, well welded,no distortion for whole structure.
3.Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
4.DSP controller system with USB interface, working without connecting with computer during working and easy to control.
5.This machine can engrave any design,support scanners,direct support ,Art CAM,Type3,Wen tai,carving and many other
G-code format generated by CAD/CAM
6.Adopt high speed step motor Max speed is 20M/MIN.
7.Taiwan HIWIN square guide rail, high precision rack gear, TBI ball screw.
8.Dust collector (contain dust collector pump and dust collector pipes), for sucking away the dusts, such as wood dusks and so on.

Technical Date

Brand	FIRMCNC
Model	FM6090
Engraving area	900*600*200mm
Working Form	Full-automatic
Spindle Power	3.0kw HSD air cooled spindle
Spindle Rotate (rpm)	18000rpm/min
Motor Driver	High speed step motor (optional servo motor )
Transmission System	Imported ball screw or high accuracy gear rack
Guide rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
EngravingSpeed (mm/min)	10-20m/min
Contorl system	DSP CONTROL (optional Mach3 NCstudio contol)
Tool Diameter (mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	380V/3P/50Hz
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	900Kg

 Main pars



Application
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,
shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.


Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

FAQ
Q1: How to get the most suitable model with competitive price?
Please tell me what's material you want to cutting or engraving
And what's MAX size of carved material ? Do you mainly engrave or cut? If cut,What is your Max.cutting thickness? would you mind showing me your sample pictures?
Q2: How about your company's control system?
We set up a special QUALITY CONTROL DEPARTMENT inside of the factory.Therefore there is a strict control for each process,
and we have regulated the standards for welding process, machining process, assembly process, manufacturing process and packaging process,etc.
Q3:  Does machine comes with software?
We offer Type3, ArtCAM software with machine.

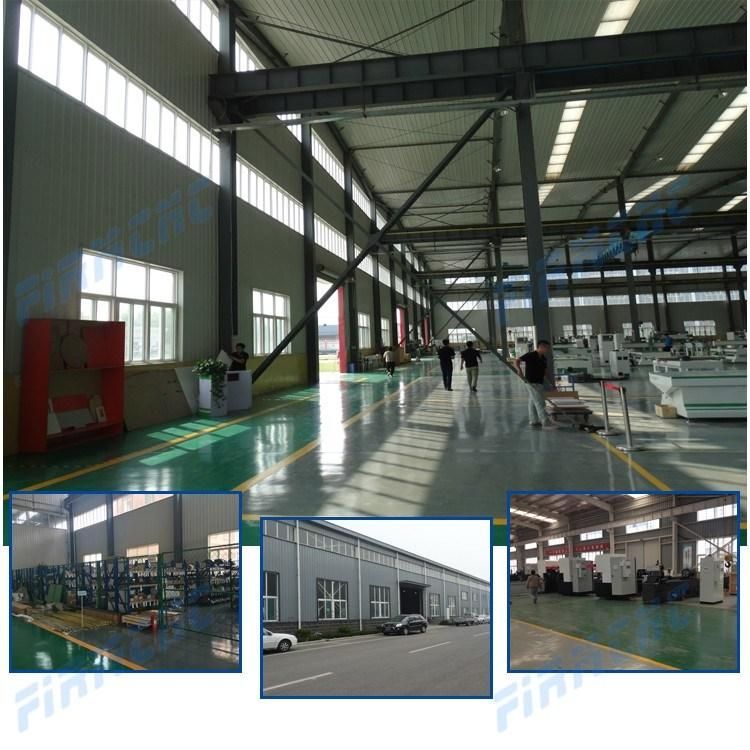

Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.

Customers visit factory

JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330        Fax : 0086-0531-69986330
Website:  http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-13954117091
