• Model NO.：MP-1530
• Customized：Customized
• Condition：New
• Color：Customized
• Machine Item：Automatic CNC Wood Lathe Wood Working Turning Lath
• Machine Painting Color：Be Made According to Your Need
• Package：Safe Wooden Box or Plastic Film Wrapping
• Price：More Competitive Price Than Other Competitors
• Delivery Detail：Quick Delivery in 7 Days
• After-Sales Service：24 Hours Technical Support by Email, Call, Video
• Voltage：380V, 220V 50herz, Can Be Customized
• Total Weight：1700kgs
• Max Diameter：300mm(Custom Model 400mm Specifications)
• Working Length：1500mm
• Transport Package：Customized
• Specification：2000*1300*1350mm
• Trademark：XINLIHUI
• Origin：Qingdao
• HS Code：8419320000
• Production Capacity：100,Week

Basic Info.

Model NO. MP-1530 Customized Customized Condition New Color Customized Machine Item Automatic CNC Wood Lathe Wood Working Turning Lath Machine Painting Color Be Made According to Your Need Package Safe Wooden Box or Plastic Film Wrapping Price More Competitive Price Than Other Competitors Delivery Detail Quick Delivery in 7 Days After-Sales Service 24 Hours Technical Support by Email, Call, Video Voltage 380V, 220V 50herz, Can Be Customized Total Weight 1700kgs Max Diameter 300mm(Custom Model 400mm Specifications) Working Length 1500mm Transport Package Customized Specification 2000*1300*1350mm Trademark XINLIHUI Origin Qingdao HS Code 8419320000 Production Capacity 100/Week

Product Description

1 Product Description
The CNC Wood Lathe is a fully functional two-dimension processing wood lathe that can turn wood stock into a variety of cylindrical bumps, grooves, and hollows. One machine can make 2 products at the same time. Also, with simple program, short operation, one-click conversion product style and stable performance, even a green hand can control 2-3 machines at the same time. Time saving and no high-salary technician anymore will absolutely lower the manufacture cost dramatically.
2 Parameter:

Machine material	Cast iron
Max diameter	300mm(Custom model 400mm specifications)
Max length	1500mm(Custom model 2000mm specifications)
Rotary spindle motor speed	0-3000r/min
Drive system	stepper motors 450C/450B and Yako 2811 drives
Guide rail	Taiwan HIWIN linear square guide rail 25mm
Transmission	Rack and pinion, Taiwan TBI rolling ball screw
Air pressure	0.6-0.8Mpa
Control system	DSP system
Software compatiliby	Type3/Artcam/Artcut/Ucancam/JDpaint etc.
Command language	G-code
Computer interface	USB
Working voltage	380V, 50/60HZ
Maintainance	Oil lubricating system
Environment temperature	0-45 centigrade
Relative humidity	30%-75%
Machine size	2000*1300*1350mm
Machine Weight	1700kgs

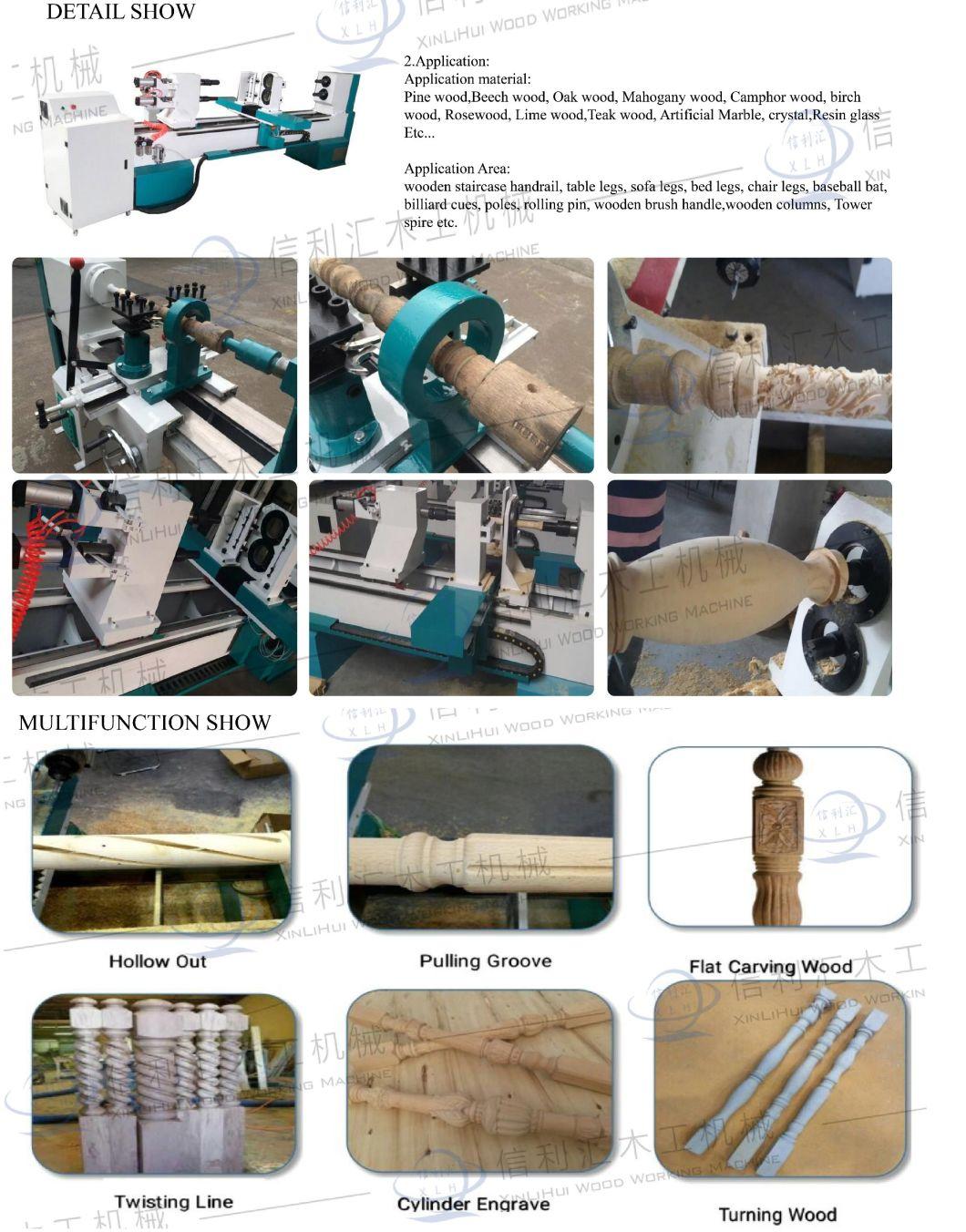

3,Some details of pictures for you:

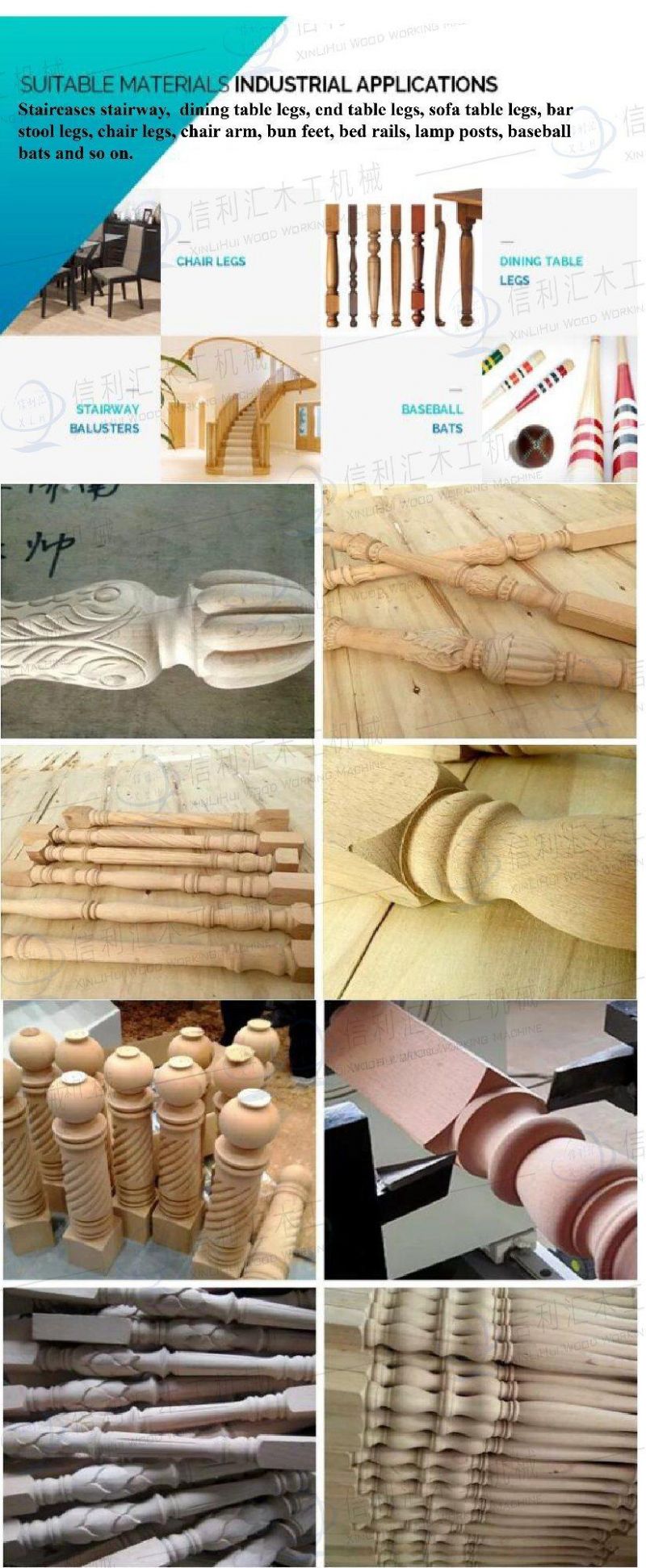

4 Sample Show


5, MAIN CHARACTERS

1. Whole machine is welded with seamless steel structure, which is high temperature annealing

and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body

stabilized and never deformed.

2. Special used for wood turning and wooden cylinder engraving, for table legs,

 stair railing (banisters), etc.

3.Adopting advanced handheld DSP system with USB port which is easy for operating even without a computer

4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision

and longevity.

5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.

6. Rotating speed can be adjusted by inverter also you can see speed on control cabinet pane

7. One time tool setting to finish the whole work piece.

8.Turning,broaching and engraving can be done with one machine by high speed
