• Model NO.：ET-MJ6130TY
• Controlling Mode：Artificial
• Automatic Grade：Semiautomatic
• Precision：Precision
• Customized：Customized
• Condition：New
• Color：Customized
• Usage：MDF, PVC, ABS Board, Particleboards etc
• Diamension：3200*380 mm
• Max. Cutting Length：3000 mm
• Max. Cutting Width：1250 mm
• Max. Cutting Height：80mm
• Guide Shaft Diameter：50 mm
• Main Saw Spindle Speed：4000,6000rpm
• Main Spindle Diameter：30mm
• Saw Blade Angle：0-45 Degree
• Main Motor：5.5kw
• Transport Package：Plywood Box
• Specification：3050*3150*900 mm
• Trademark：ET
• Origin：China
• HS Code：846591000
• Production Capacity：50000 Year
• Package size per unit product：3000.00cm * 1200.00cm * 1200.00cm
• Gross weight per unit product：650.000kg

Basic Info.

Model NO. ET-MJ6130TY Controlling Mode Artificial Automatic Grade Semiautomatic Precision Precision Customized Customized Condition New Color Customized Usage MDF, PVC, ABS Board, Particleboards etc Diamension 3200*380 mm Max. Cutting Length 3000 mm Max. Cutting Width 1250 mm Max. Cutting Height 80mm Guide Shaft Diameter 50 mm Main Saw Spindle Speed 4000/6000rpm Main Spindle Diameter 30mm Saw Blade Angle 0-45 Degree Main Motor 5.5kw Transport Package Plywood Box Specification 3050*3150*900 mm Trademark ET Origin China HS Code 846591000 Production Capacity 50000 Year

Packaging & Delivery

Package size per unit product 3000.00cm * 1200.00cm * 1200.00cm Gross weight per unit product 650.000kg

Product Description

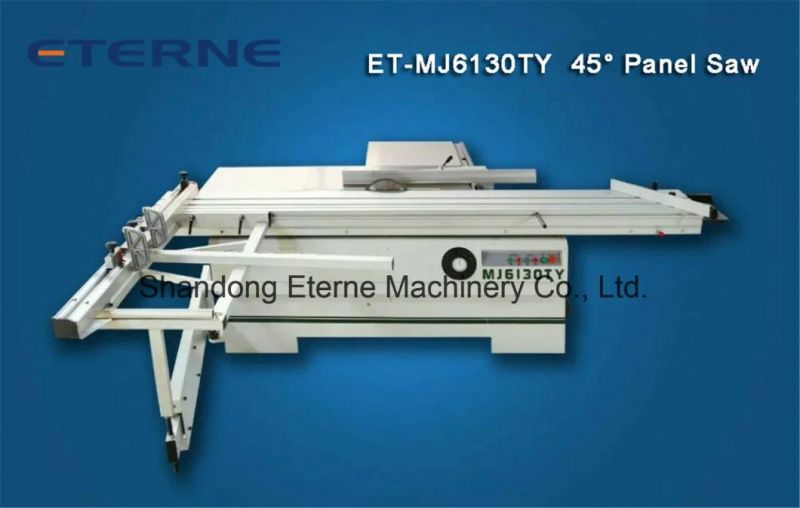

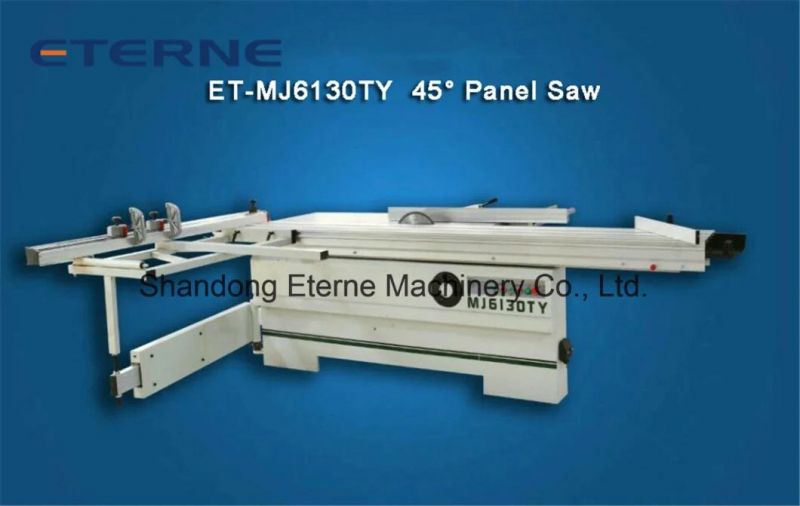

3000 mm woodworking sliding table plate panel saw with 45 degree
(ET-MJ6130TY)
1. Features:

1) Used for different plate: MDF, block board, particle board, solid wood board, polywood, polymer plate, fire board etc.

2) Can save lots of labors and cost, especially suitable for suitable for medium and large scale users.

3) Concentrated modern design for automatic woodworking production line.

4) Sliding table guide track is plating chromium steel bars structure, precision and durable work.

5) Sliding table have multi-point locking, can improve working efficiency greatly.

6) With oxidation treatment, movable table surface is beautiful and hard wearing
Blade up&down movement by electric control, tilting 0-45 degree and digital readout.


2. Specification


Model	ET-MJ6130TY
Dimension	3200×380 mm
Max. Cutting length	3000 mm
Max. Cutting width	1250 mm
Saw blade diameter	φ300mm(φ250-φ315)
Max. Cutting height when 45 °	80 mm
Guide shaft diameter	φ50 mm
Main saw spindle speed	4000/6000 rpm
Main spindle diameter	φ30 mm
Saw blade angle	0-45°
Main motor	5.5 KW
Scoring saw blade diameter	φ120 mm
Scoring saw blade speed	8000 r/min
Auxiliary Scoring spindle diameter	φ20 mm
Scoring motor	1.1 kw
Net weight	680 kg
Overall dimensions	3050×3150×900 mm

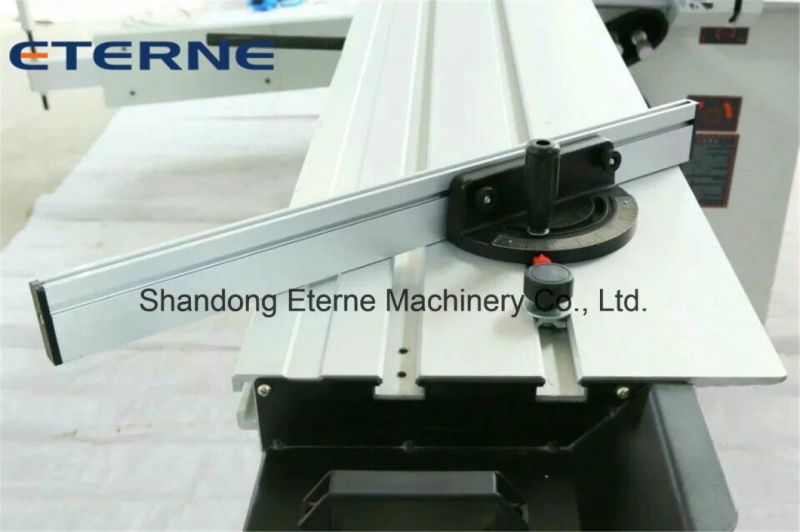

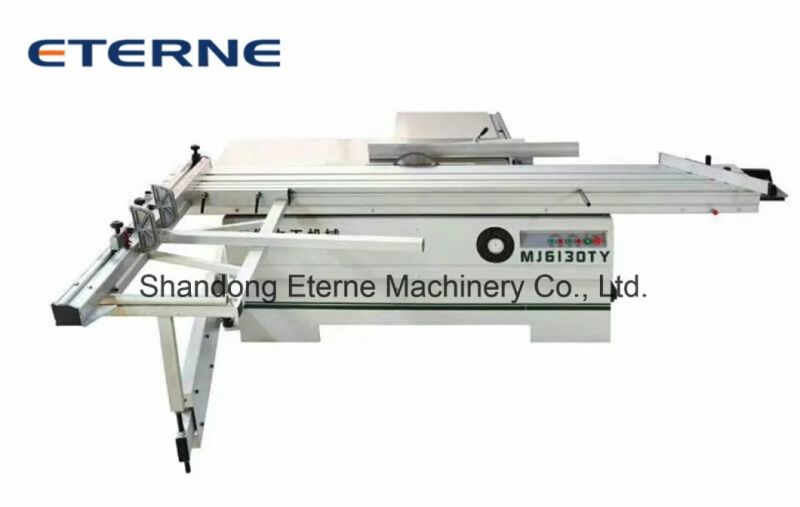

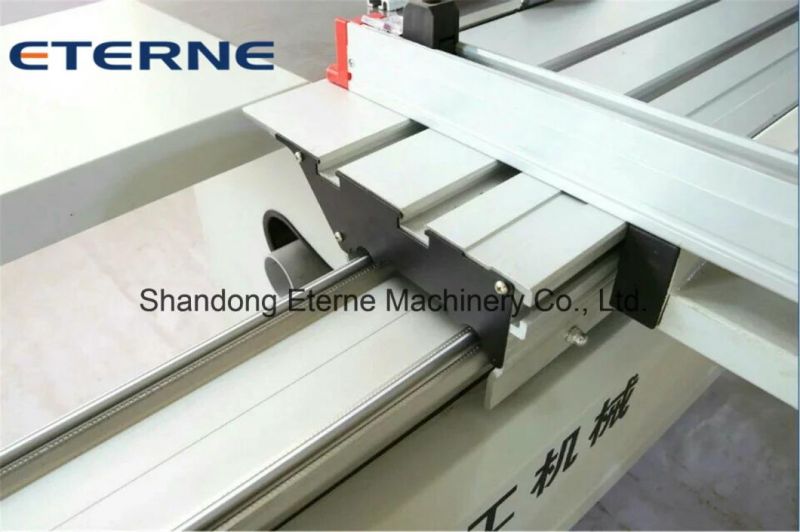

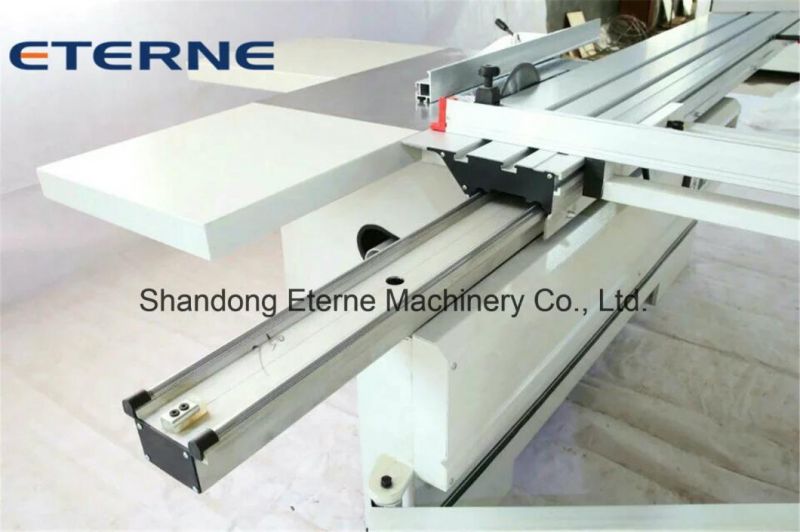

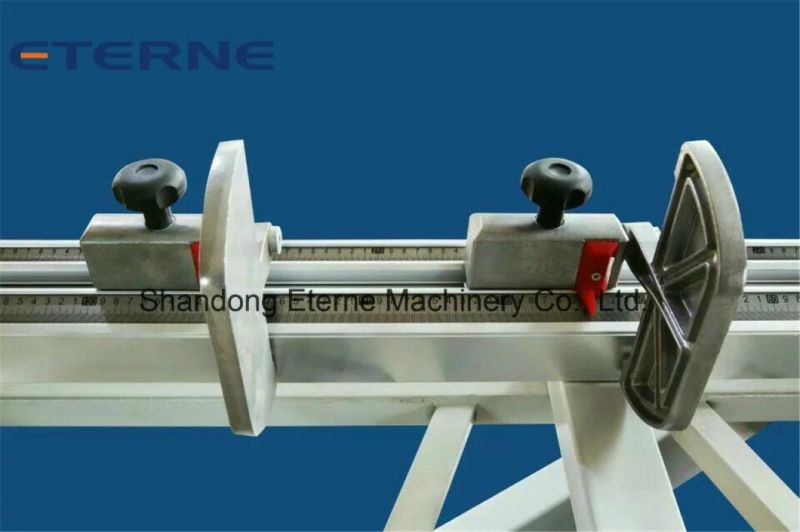

3. Pictures and Details










4. Why Choose Us:

1. Factory direct, with more than 10 years woodworking machinery production experience.
2. Can do OEM/ODM according to your request.
3. Engineer is available to help commissioning overseas.
4. Within 24 hours response if any enquiry and quick after-sales service system.
5. With own R&D strength.

5. RFQ:
 1) Are you factory or trading company?
 We are factory with more than 10 years manufacturing experience, located in Dezhou city, shandong province with very convenient fast train, air plane transporation, the exporting port is Qingdao Port, China.
 2) What is the warranty?
  Warranty time is 12 months if any quality problem after shipping and life long service / maintaince.
Quick wear parts are availale at any time if necessary can be delivered to your side within 5 days.

6. Delivery and Shipping

1) LCL shipping with strength film and plywood box packaged.
2) Container shipping cooperated with famous shipping company and shipping insurance.


7. Contact



You are welcome to inquiry and looking forward to cooperating with you in the near future.")
