Factory! 3D Wood Metal Acrylic EVA Engraving Cutting Carving Milling Router Atc CNC Machine for Door Furniture Cabinet MDF Plywood Working Engraving Machinery
Jinan Chanke Mechanical Equipment Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
Base Info
- Model NO.:CK1325
- Spindle Number:Single-Spindle
- Feed Mode:Manual
- Controlling Mode:CNC
- Certification:CE, ISO, FDA
- Customized:Customized
- Condition:New
- Color:Customized
- After-sales Service:3 Years
- Working Size:1300X2500mm
- Cooling Mode:Water Cooling Spindle
- Spindle Power:7.5kw ,9.0kw
- Air Cooling Is Ok:Yes
- Machine Colour:as Customers Choice, We Are White and Blue
- Conrol System:DSP or Nc Studio or March3 as Your Option
- Rotary:Yes:500mm ,200mm 80mm
- Transmission:Z Axis : Ball Screw, Xy : Gear and Rack Rail
- Rail:Taiwan Hiwin Square Rail
- Working Table:Vacum Pump or Materails Holders
- Motor:Full Servo Motor
- Transport Package:Plywood Packing
- Specification:iso ,SGS,FDA,CE
- Trademark:chanke
- Origin:China
- HS Code:847989999
- Production Capacity:50sets,Months
- Package size per unit product:319.00cm * 220.00cm * 190.00cm
- Gross weight per unit product:1650.000kg
Description
Model

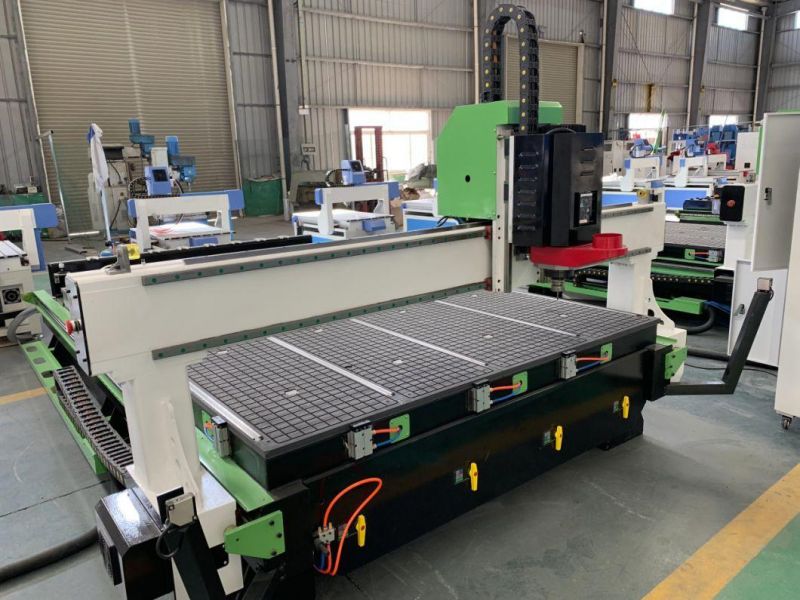

chanke-1325 ATC cnc router
X, Y Working size
1300*2500mm
Z feed Height
200mm
Table Surface

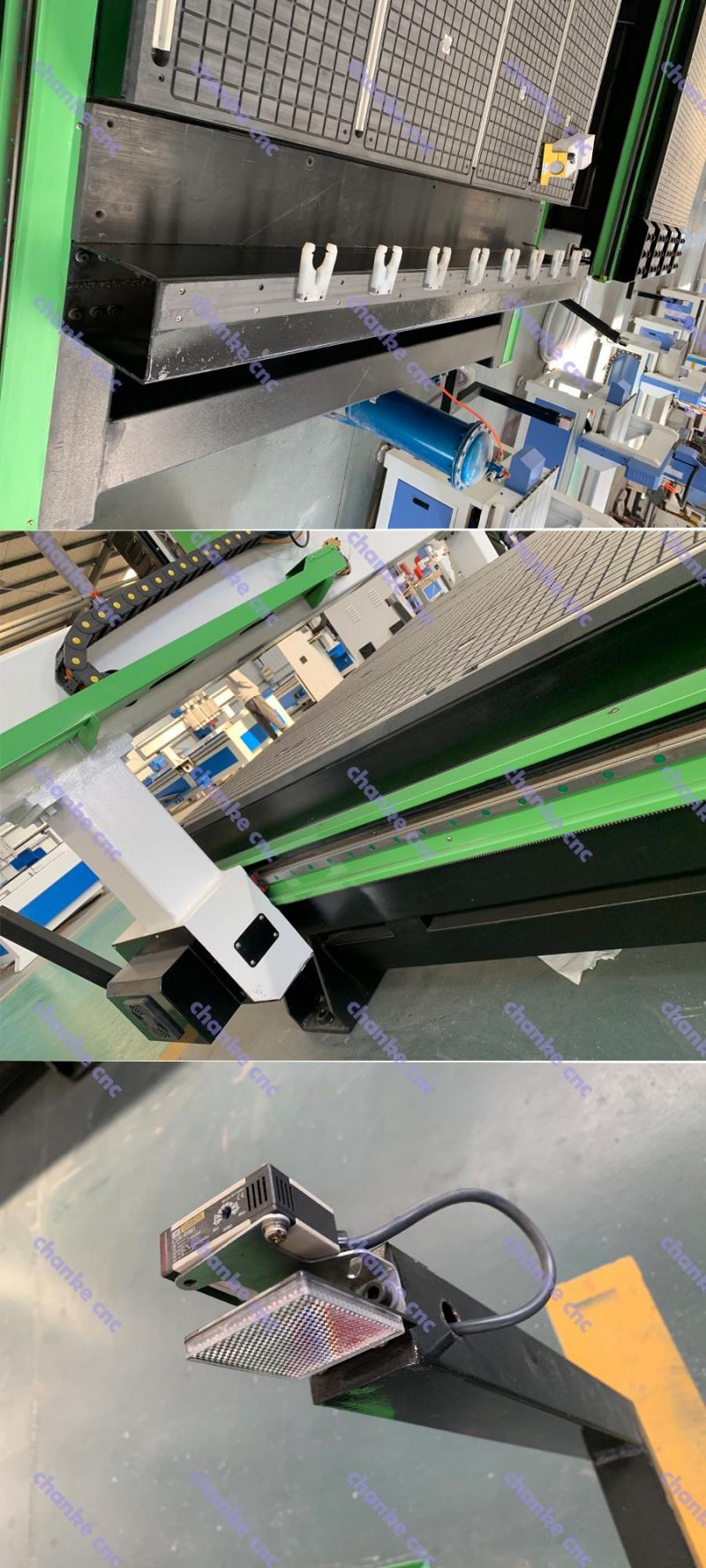

Vacuum table with 8 pacs of tools changer
X, Y Structure
Rack and Pinion, Taiwan 25 Linear Square Guide Rail
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
35000mm/min
Max. Working Speed
25000mm/min
Spindle Power

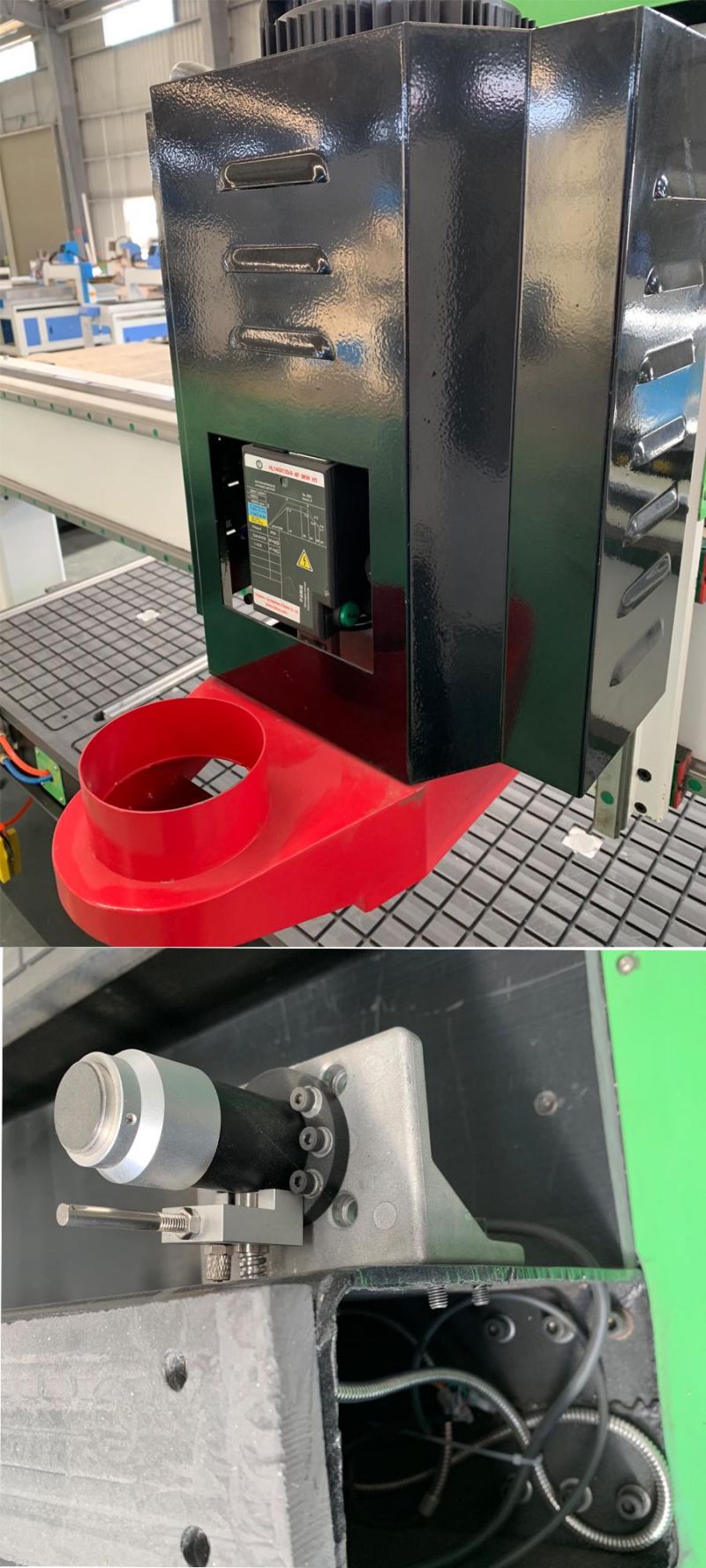

9 KW HQD air cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
Working Voltage:
AC 380V /50/60Hz
Command Language
G code
Control System
SYNTEC 11MA
X,Y,Z repositioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
Artcam
Running Temperature
0 degree - 45 degree
Relative Humidity
30% - 75%
Application materials and industries
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.Applicable Materials:
Applicable Industry:
Wood furniture Industry, Furniture decoration, music instrument, wooden arts and crafts, large scale board engraving, solid wood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, advertising industry, Die industry .
