Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)

Shandong Eterne Machinery Co., Ltd.
  • Type:Linear Edge Banding Machine
  • Edging thickness:0.4-3mm

Base Info

  • Model NO.:ET-360B
  • Automatic Grade:Automatic
  • Panel Feeding Speed:13m,min
  • Panel Thinkness:10-60mm
  • Min.length panel:120mm
  • Min.width panel:60mm
  • Manufacturing Principles:Glue Tank Underneath
  • Customized:Customized
  • Application:All Kinds of Wood, MDF Panels
  • Brand:Eterne (Manufacturer)
  • Total Function:3-8 Functions According to Request
  • Design:Can Be Customized
  • Color:Customized
  • PLC System:Delta Brand-Taiwan
  • Guide Rail:Hiwin-Taiwan
  • Electric Element:Airtac-Taiwan
  • Bearing:NSK or SKF
  • Voltage:380V or 220V
  • Heavy Duty Machine:Available
  • Exporting Experience:10 Years
  • Related Machine:Saw, Drilling Machine, CNC Router
  • Motor:Famous High Frequency
  • Transport Package:Plywood Box with Strength Film
  • Specification:4080,925,1560 mm
  • Trademark:ET
  • Origin:China
  • HS Code:8465940000
  • Production Capacity:10000,Year
  • Package size per unit product:4100.00cm * 800.00cm * 1600.00cm
  • Gross weight per unit product:1200.000kg

Description

Basic Info.

Model NO. ET-360B Automatic Grade Automatic Panel Feeding Speed 13m/min Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 60mm Manufacturing Principles Glue Tank Underneath Customized Customized Application All Kinds of Wood, MDF Panels Brand Eterne (Manufacturer) Total Function 3-8 Functions According to Request Design Can Be Customized Color Customized PLC System Delta Brand-Taiwan Guide Rail Hiwin-Taiwan Electric Element Airtac-Taiwan Bearing NSK or SKF Voltage 380V or 220V Heavy Duty Machine Available Exporting Experience 10 Years Related Machine Saw, Drilling Machine, CNC Router Motor Famous High Frequency Transport Package Plywood Box with Strength Film Specification 4080/925/1560 mm Trademark ET Origin China HS Code 8465940000 Production Capacity 10000/Year

Packaging & Delivery

Package size per unit product 4100.00cm * 800.00cm * 1600.00cm Gross weight per unit product 1200.000kg

Product Description

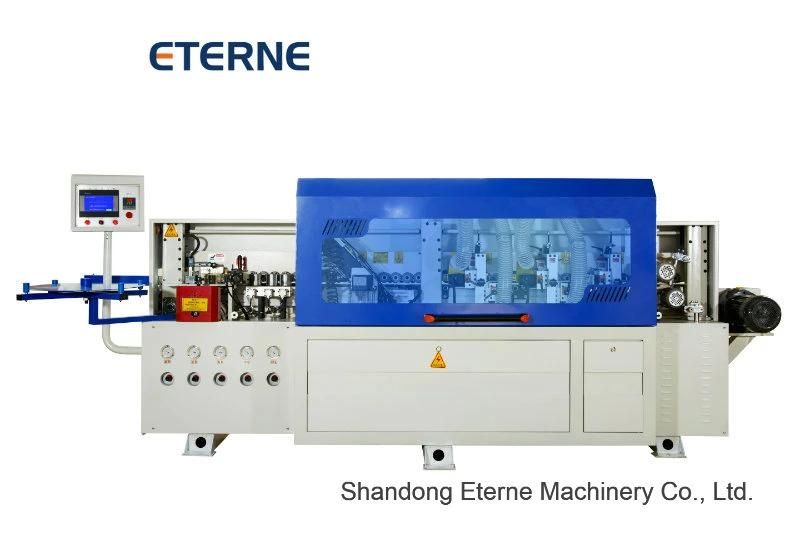

Factory Automatic Carpenter Woodworking Edge Banding Equipment  (ET-360B)
1. Brief Introduction:

1) Used for different plate: MDF, block board, particle board, solid wood board, polywood, polymer plate, fire board etc.

2) Banding edge for desks,carbinet,wardrobe and stright line furniture.

3)
Tape material can be PVC,melamine, veneer etc.

4) Can save lots of labors and cost, especially suitable for suitable for medium and large scale users.

5) Concentrated modern design for automatic woodworking production line.

6) Factory direct produce and supplying

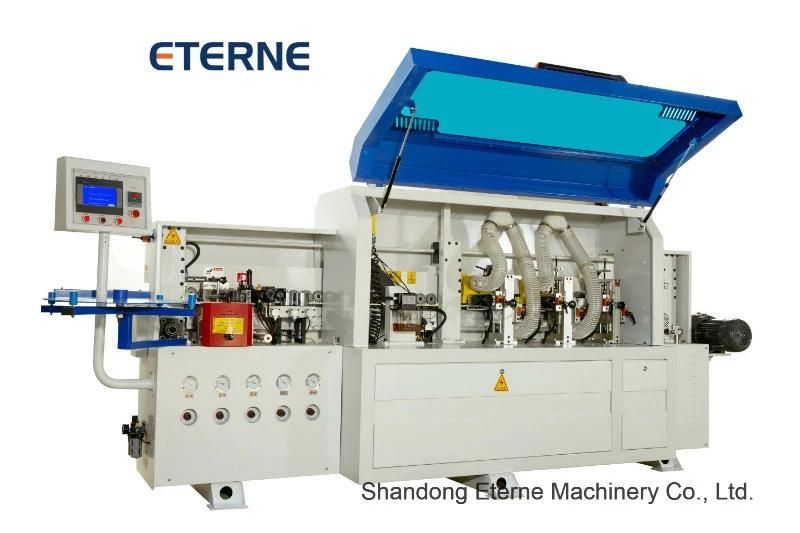

Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)



Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)
Color and design can be customized
Painting is baking paint after steel plate sanding.
Strong frame and heavy duty machine, the designed life is 15 years.


2. Specification: ( can be customized)
ModelET360B
Input Voltage 380 V(220V,400V,415V,440V etc)
Edge Thickness 0.4-3 mm
Edge Width 10-60 mm
Panel Length Min.120 mm
Panel Width Min.60 mm
Panel Thickness 10-50 mm
Transport Motor 1.5 kw
Glue Post Motor 0.37 kw
End-trimming Motor Power0.37 kw*2
Rough-trimming motor power0.75 kw*2
Fine-trimming Motor Power0.75 kw*2
Polishing Motor0.18 kw*2
Total Power 8.5 kw
Scraping Blade model R2*2 or R3*2
Dimension4080/925/1560 mm
Net Weight 1350kg
3. Features :

1) Multi-Fuction: Linear edge banding machine with Gluing--Edge banding-end trimming--rough trimming--fine trimming--scrapping--buffing.

Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)
Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)

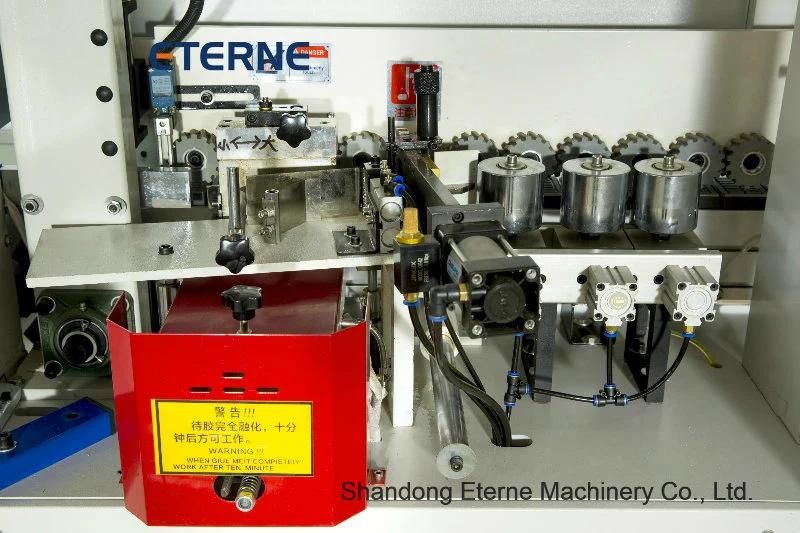

 2) Gluing and edge banding: mechanism adopts glue melting device to gelatinize the plates and tape uniformly, meanwhile make sure they can be conglutinated firmly.

3) End-trimming mechanism is to cut the forward and rear tape after gluing and press process by the movement of the precise guide track, it is with automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.

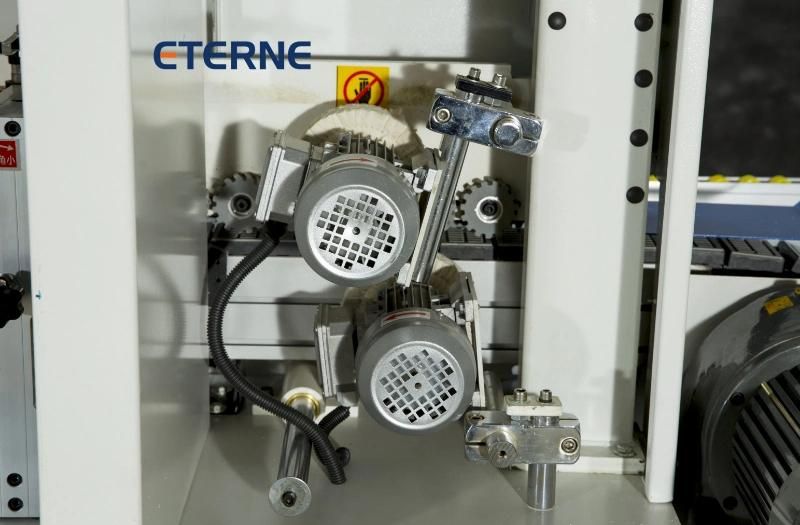

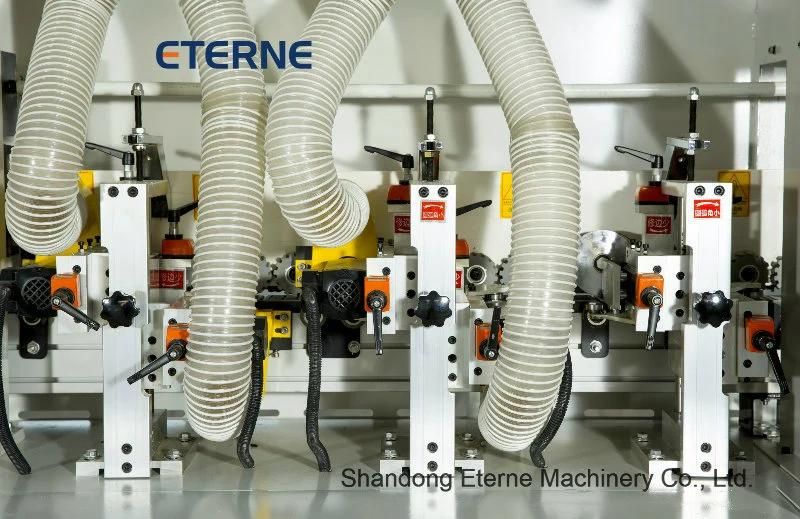

4) Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure both sides of the edge smooth and even.

5) Scraping unit for a perfect finishing of the applied edge.

6) Buffing unit is equipped with cotton polishing wheels to make smooth surface by end-polishing.

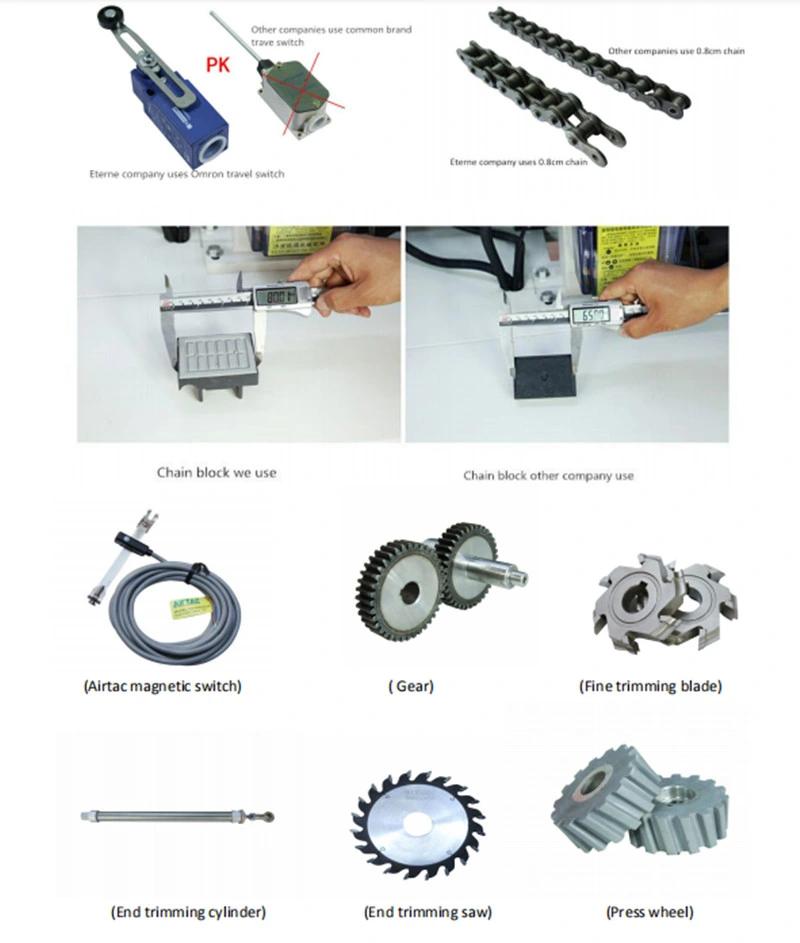

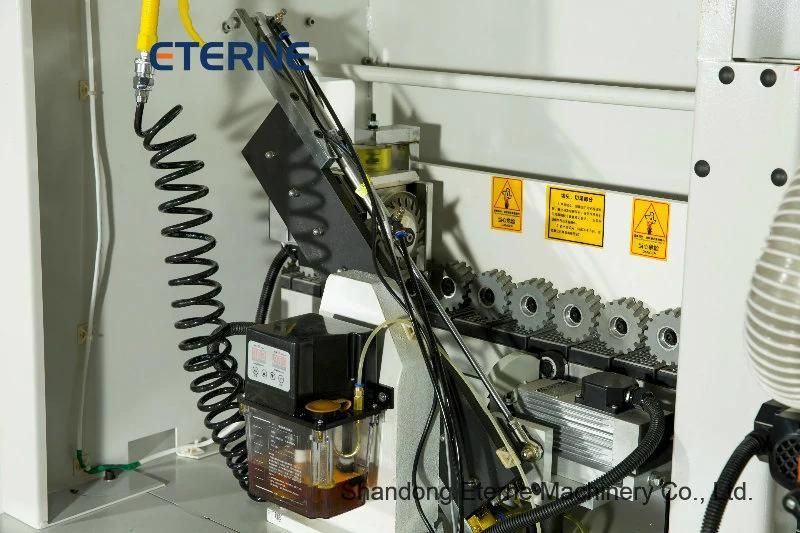

4. Pictures and details


Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)
Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)

Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)
Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)
5.Delivery and Package

Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)


1) No matter container shipping or LCL shipping, the machine will be packaged with standard plywood case and plastic flim rolling all around the machine for anti-dust.

2) Usually, If have machine in stock, it can deliver 2 days after deposit, if no, can be deliver within 7 days after deposit.


6. Why Choose Us
  1. Factory direct, with more than 10 years woodworking machinery production experience.
  2. Can do OEM/ODM according to your request.
  3. Engineer is available to help commissioning overseas.
  4. Within 24 hours response if any enquiry and quick after-sales service system.
  5. With own R&D strength .Factory Automatic Carpenter Woodworking Edge Banding Equipment (ET-360B)



Thanks for your time and welcome to send enquiry.
