• Model NO.：MY624X8,16
• Pressing Layer：Single Layer
• Work Mode：Period
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE
• After-sales Service：Mainframe One Year,Electrical 6 Months
• Model：My624X8,16
• Total Pressure：1600kn
• Working Layers：1
• Unit Pressure：5kgf,Cm2
• No.& Size of Hot Platen：2-2500X1300X42mm
• Opening：150mm
• No.& Diameter of Cylinder：10-85mm,2-85mm
• Heating Method：Electric Heated with Thermal Oil
• Hot Platen Opening Way：Automatic
• Installed Power：54.95kw
• Transport Package：Knocked Down
• Specification：CE
• Trademark：variopress
• Origin：Foshan City, Guangdong Province, China
• HS Code：8465990000
• Production Capacity：20PCS,Month

Basic Info.

Model NO. MY624X8/16 Pressing Layer Single Layer Work Mode Period Controlling Mode CNC Automatic Grade Automatic Certification CE After-sales Service Mainframe One Year,Electrical 6 Months Model My624X8/16 Total Pressure 1600kn Working Layers 1 Unit Pressure 5kgf/Cm2 No.& Size of Hot Platen 2-2500X1300X42mm Opening 150mm No.& Diameter of Cylinder 10-85mm,2-85mm Heating Method Electric Heated with Thermal Oil Hot Platen Opening Way Automatic Installed Power 54.95kw Transport Package Knocked Down Specification CE Trademark variopress Origin Foshan City, Guangdong Province, China HS Code 8465990000 Production Capacity 20PCS/Month

Product Description

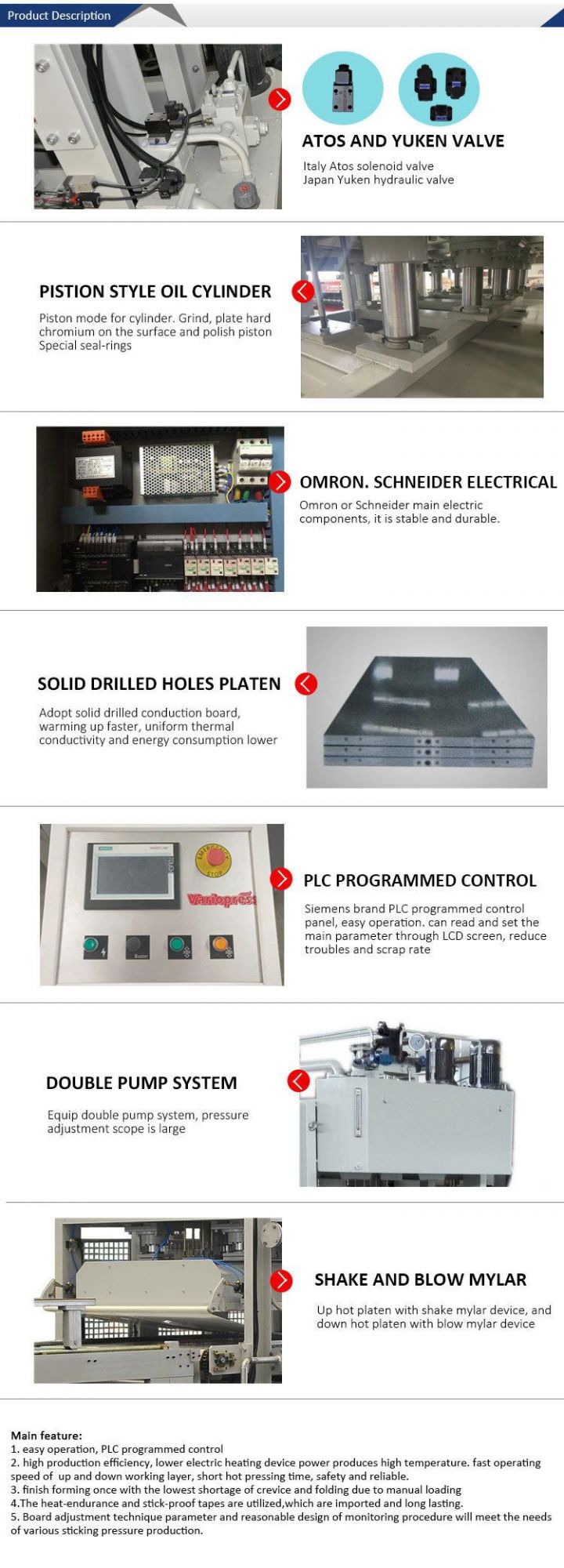

Main features:

1.easy operation, PLC programmed control
2.high production efficiency, lower electric heating device power produces high temperature. fast operating speed of  up and down working layer, short hot pressing time, safety and reliable.
3. finish forming once with the lowest shortage of crevice and folding due to manual loading
4.The heat-endurance and stick-proof tapes are utilized,which are imported and long lasting.
5. Board adjustment technique parameter and reasonable design of monitoring procedure will meet the needs of various sticking pressure production.6. Hydraulic valves: Japan YUKEN valve and Italy's ATOS electromagnetic valve.7. Hot platen: solid drilling deep hole technology, fast heating-up rate, uniform heat conduction and low heat consumption.8. Hydraulic system: Adopt double-pump system, it can quickly close and open, and can adjust according to required pressure of the product.



  Technical parameter:

Model	MY624X8/16
Total pressure	1600kN
No.& size of hot platen	2-2500x1300x42mm
Opening	150mm
No.& diameter of main cylinder	10-φ85mm
No.& diameter of raising cylinder	2-φ85mm
Heating way	electric heated with thermal oil
Opening way of hot platen	automatic
Installed power	54.95kw
Closed speed	50mm/s
