• Model NO.：USM1325
• Table Structure：Vacuum Table
• Spindle Power：Hqd 9kw Tool Changer Air Cooling
• Inverter：Shanghai Fuling Inverter11kw
• Control System：Taiwan Syntec Control System
• Drive System：Japan Yaskawa Servo Motor and Drive
• Rails Guide：Taiwan Hiwin Square Linear Rail
• Oil Cooling System：Automatic
• Reducer：Japan Shimpo
• Positioning Cylinder：X Axis 2 Pieces, Y Axis 3 Pieces
• Spindle Speed：24000r,Min
• Max Working Speed：18m,S
• Max Travelling Speed：25m,S
• Warranty Time：2 Years
• Transport Package：Strong Plywood Case Packing
• Specification：1300mm*2500mm*200mm
• Trademark：UNISTAR
• Origin：China
• HS Code：8465990000
• Production Capacity：3000pieces,Year

Model

USM-1325

Working size

1300mm*2500mm*200mm

Spindle

HQD 9 KW air cooling spindle

Table type

Vacuum table with vacuum pump

Controlllor

Taiwan syntec  control system

Transmission

X,Y Rack and pinion, Z Ball Screws

Rail Guide

Taiwan Hinwin  Square Rail Guide

Drive system

 Janpan Yaskawa servo

Inverter

Shanghai Fuling Inverter

Dust collect

Auto dust collect system with two bags

Oil injection

Automatic

Max. Spindle speed

24000r/min

Max. traveling speed

25m/s

Max. working Speed

18m/s

Processing Accuracy

±0.025mm

Reposition Accuracy

≤0.025mm

Command language

HPGL, G code

Working voltage

AC380V /50HZ

Interface

USB

Command

G code*.u00*.mmg*plt

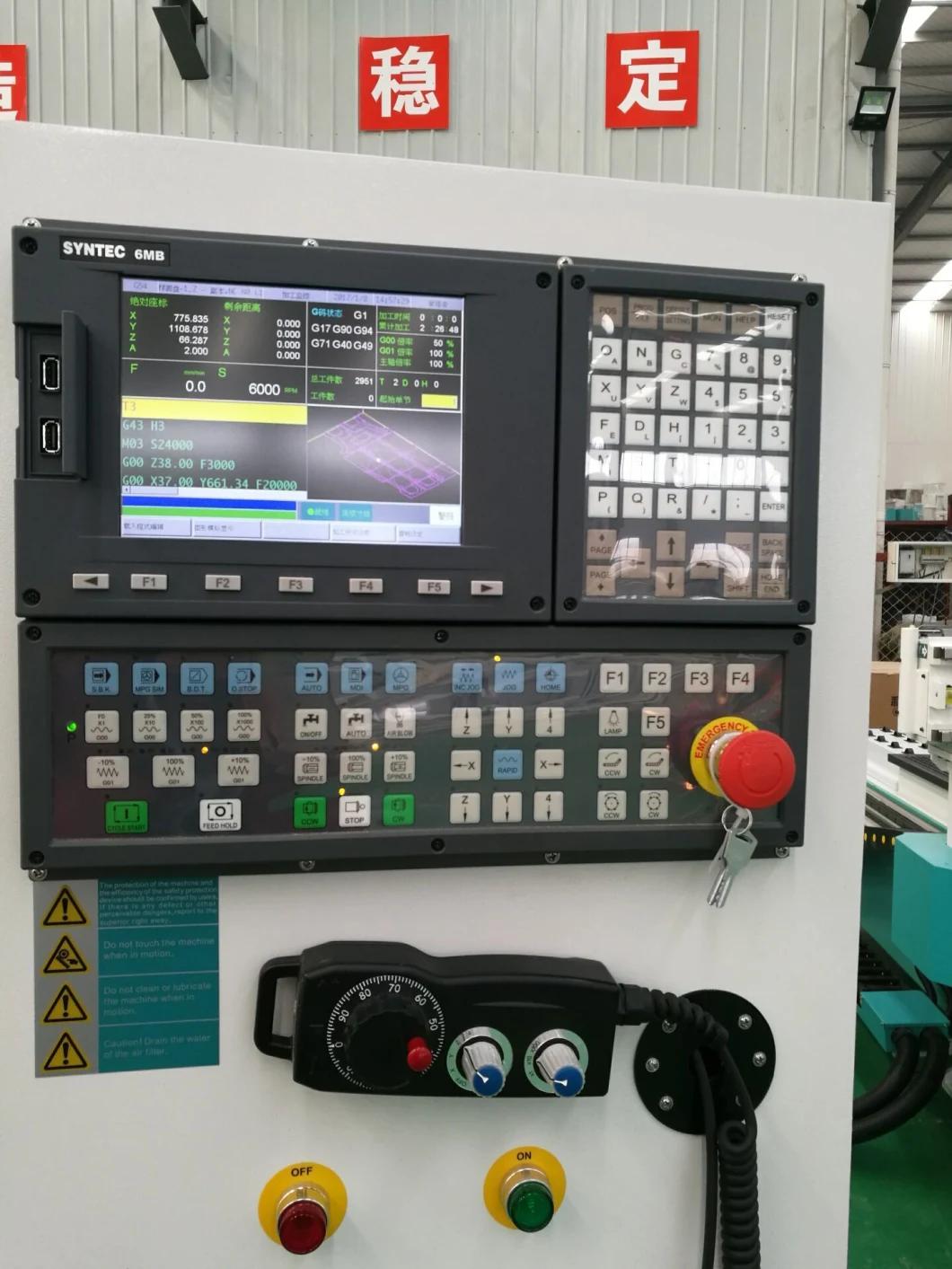

Taiwan Syntec Control System
Continous carving during power failure and break point,it can compatible with type 3,Artcam,Alphacam,ect.

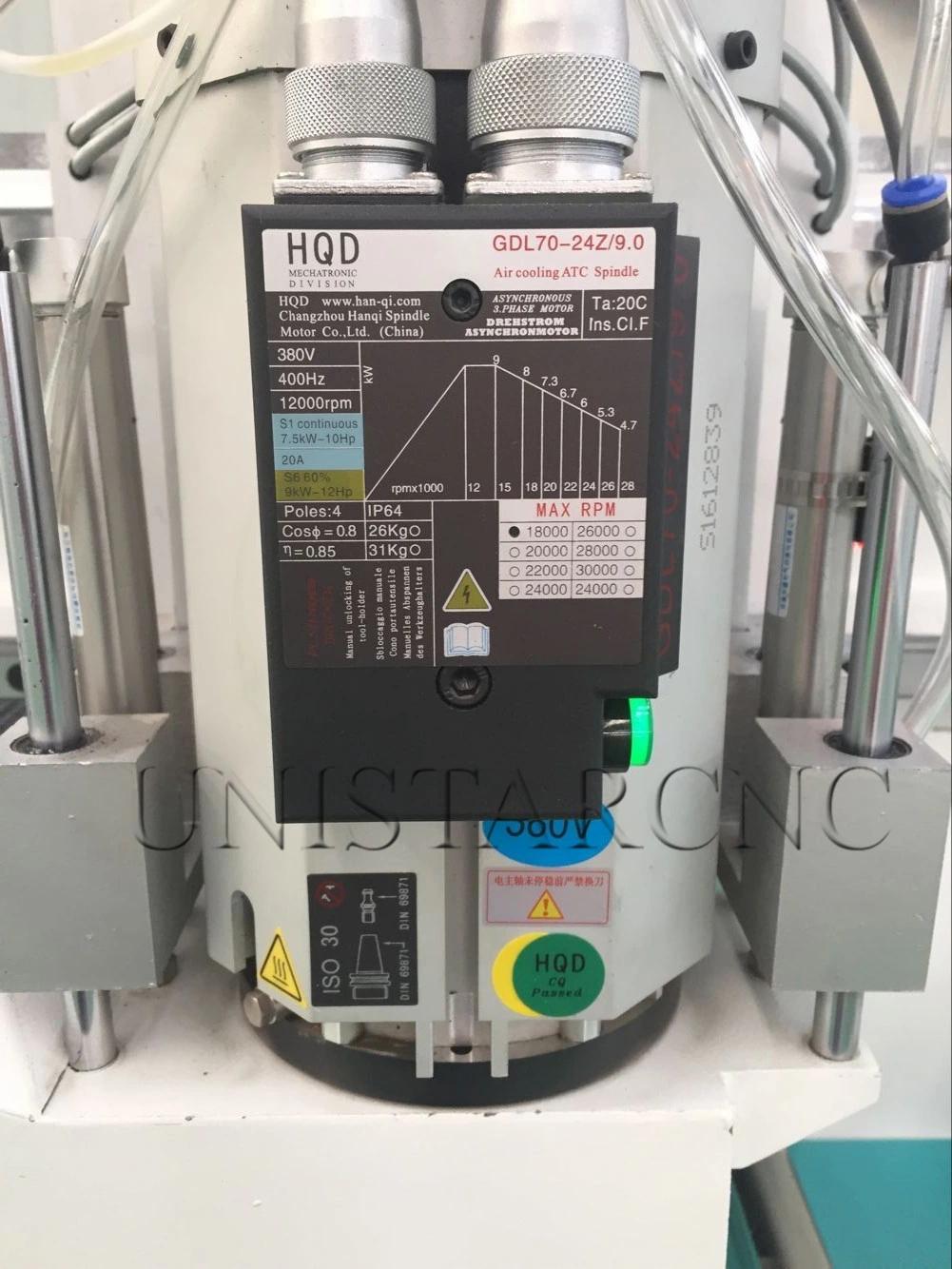

HQD 9KW Tool Changer Spindle
HQD 9KW tool changer spindle keep high quality standards.

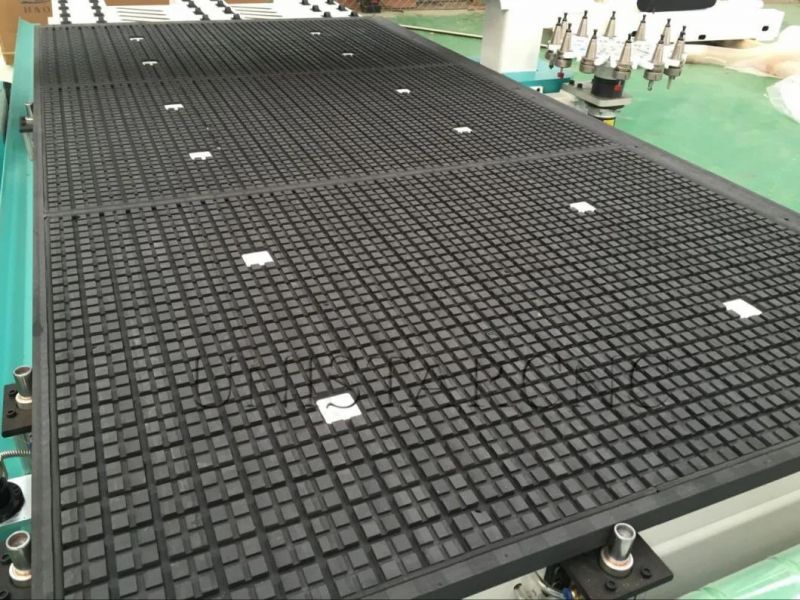

Vacuum suction table
Vacuum structure, strong adsorption capacity, improve work efficiency.

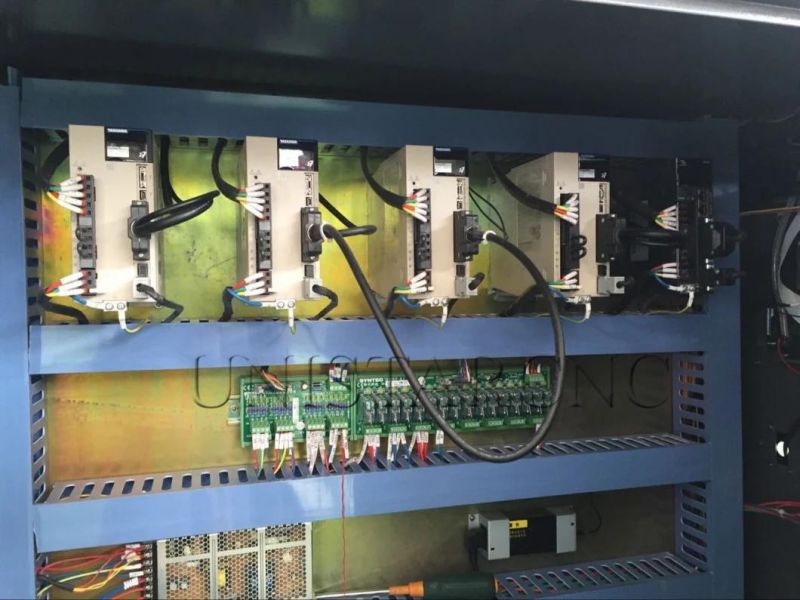

Drive System:
Japan YASKAWA servo drive system and famous brand with high quality.

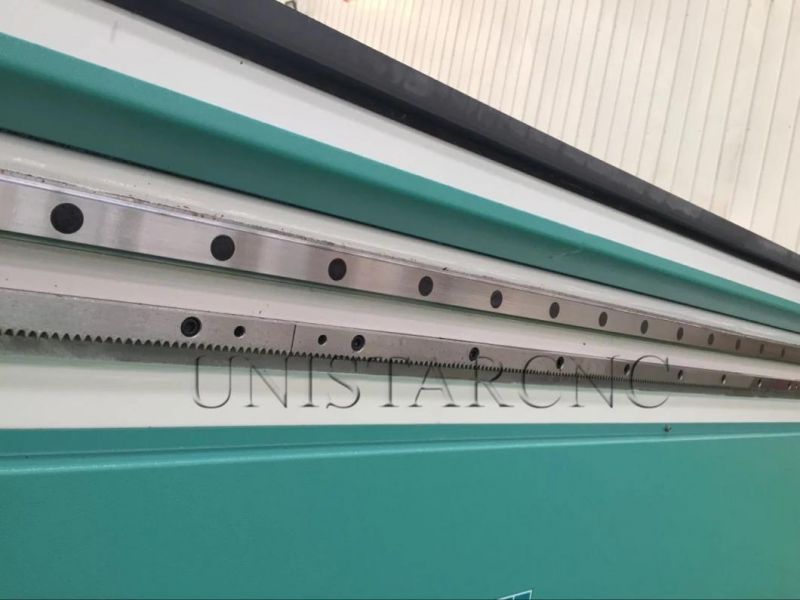

Taiwan HIWIN guide rail
The machine adopts famous Taiwan HIWIN  square linear guide,
with high precision, self-lubrication and long service life.

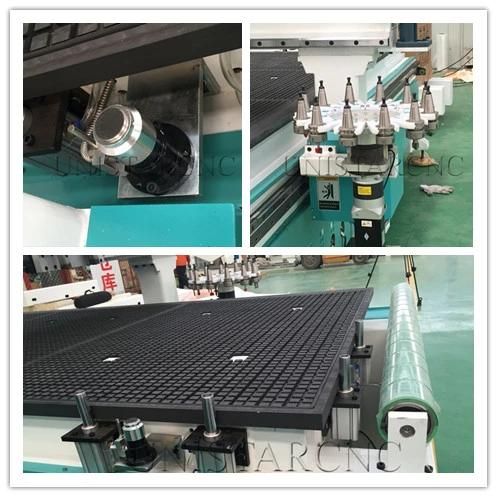

Product advantage
1.3+2 positioning cylinder can make the material more stable.
2.Servo disk tool changer magazine,can finish changing time 10 seconds,tool changer capacity
   is 8 pieces or 10 pieces or more.
3.The machine carries auxiliary feeding device for faster efficiency.



Sample pictures



Packing and shipping


Certificate

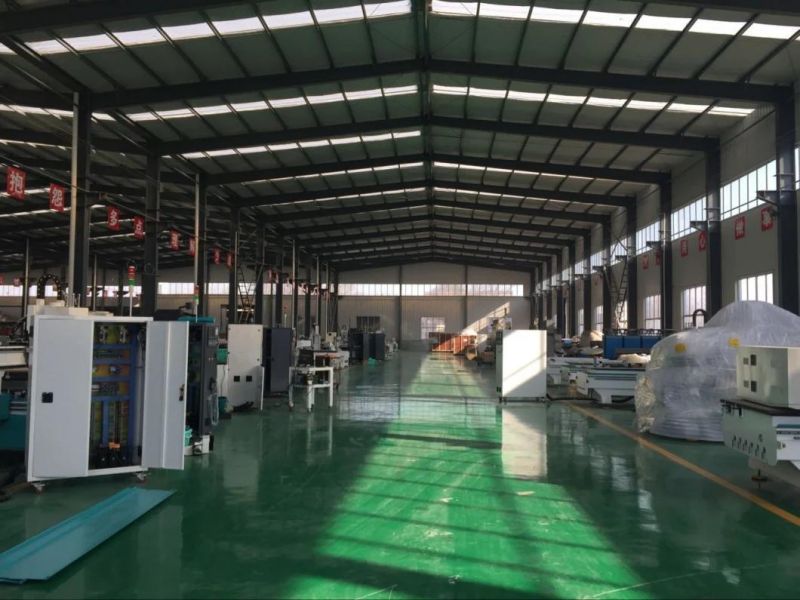

Factory picture






Our service

1. We provide 24 months warranty for the machine. Machine as normal using
    and maintenance condition, if get any problem, will provide spare parts for free.

2.We would deal with all the production and shipping affairs,
   after everything is ready, we would tell you everything goes well here.

3. Consumable parts will be replaced free during the warranty.

4. Our engineer could provide technology support and training for you in your country,
    If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.

5. Our engineer could service for you 24 hours online, by Whatsapp,Wechat,
    or by cellphone etc.we would pay their 100% time and energy to solve your problems!

FAQ

How long about the machine's guarantee?
2 years
How about your after-sales service?
Technical support by phone,Whatsapp,Skype,e-mail or QQ around the clock.
If i bought machine ,but i don't know how to operation,what i can do ?
Our engineer will teach you how to operation the machine through manual,video or email,i still also will help you
Does your company can processing my samples?
Yes,we can.
Do you arrange shipment for the machines?
Yes,for FOB or CIFprice,we will arrange shipment for you,for EXW price ,clients need to arrange shipment by themselves or thier agent.
