Plywood Wood Veneer Peeling Machine for Veneer Making Face Core Veneer
Linyi Jianye Shunda International Trade Co., Ltd.- Type：Spindleless Veneer Peeling Machine
- Automatic：Semi-Automatic
- Certification：CE, ISO
- Guaranty：for 12 Months
- After Service：Online and Door to Door
- Wood Diameter：Φ80-Φ550mm
Base Info
- Model NO.：YHHDP4
- Wood Length：900-1300mm
- Blade Length：1400mm
- Thickness of Veneer Peeler：1-3mm
- Linear Speed of Host Machine：52m,Min
- Double Roller Diameter：180mm
- Single Roller Diameter：150mm
- Double Roller Motor Power：7.5kw*2PCS
- Single Roller Motor Power：5.5kw*2PCS
- Cutting Knife Motor Power：2.2kw
- Feeding Motor Power：11kw(Servo Motor)
- Machine′s Weight：6200kg
- Overall Size：4500*1900*1450mm
- Transport Package：Shrinkage Film for Overall of Main Equipment
- Specification：integral steel plate welded
- Trademark：YIHE MACHINERY
- Origin：Linyi Shandong China
- Production Capacity：200 Pieces,Year
Description

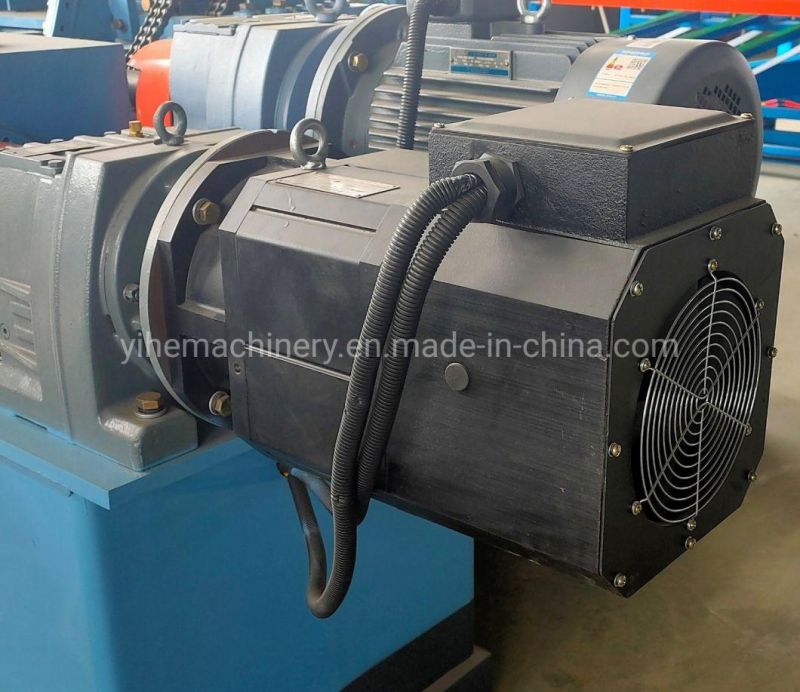

The feeding motor is 11kw servo motor. It can guarantee stable machine running, stable rotatory peeling speed and accurate veneer thickness. So the machine can produce high quality veneer.

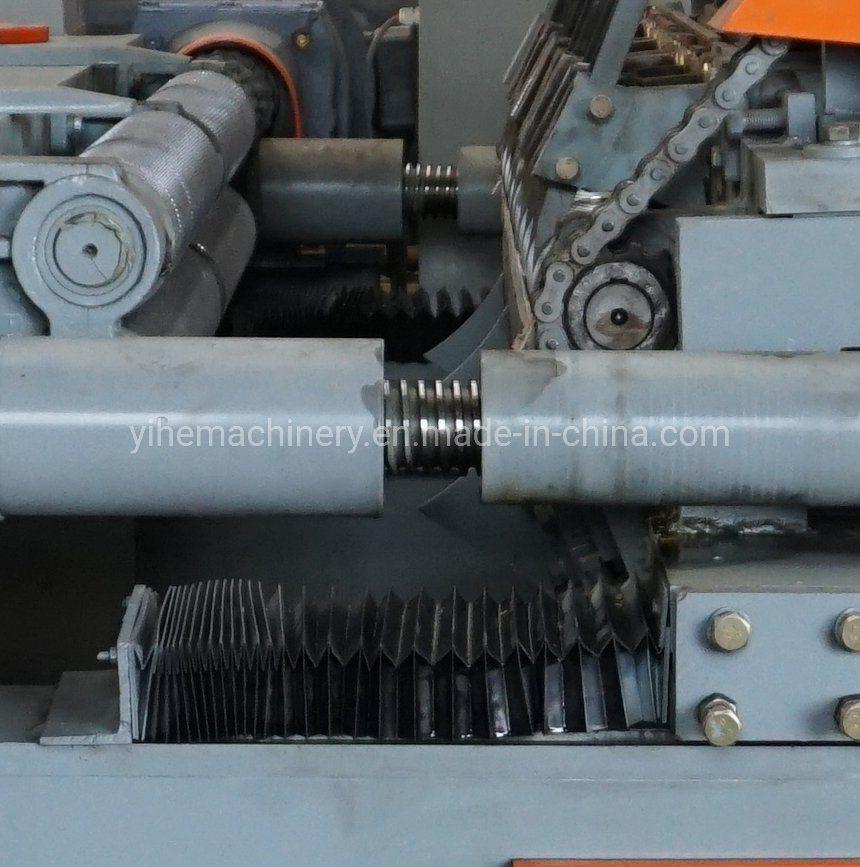

The machine uses mining equipment's feeding lead screw, which is made by TAIWAN technology. The feeding lead screw is made by special steel, the screw nut is made by copper. It has very high feeding accuracy and guarantee accurate veneer thickness. The standard feeding screw diameter is 70mm. Diameter can be 100mm according to client's requirement.

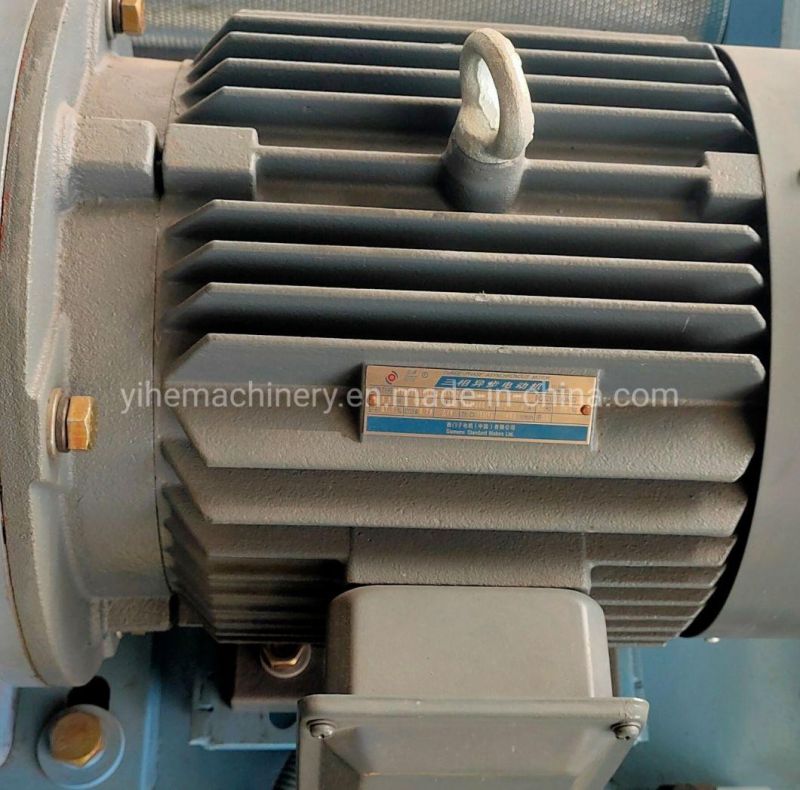

YIHE complete set of plywood equipment supporting Siemens motor or Shandong Huali motor, the power voltage and frequency can customized according to different countries and regions.

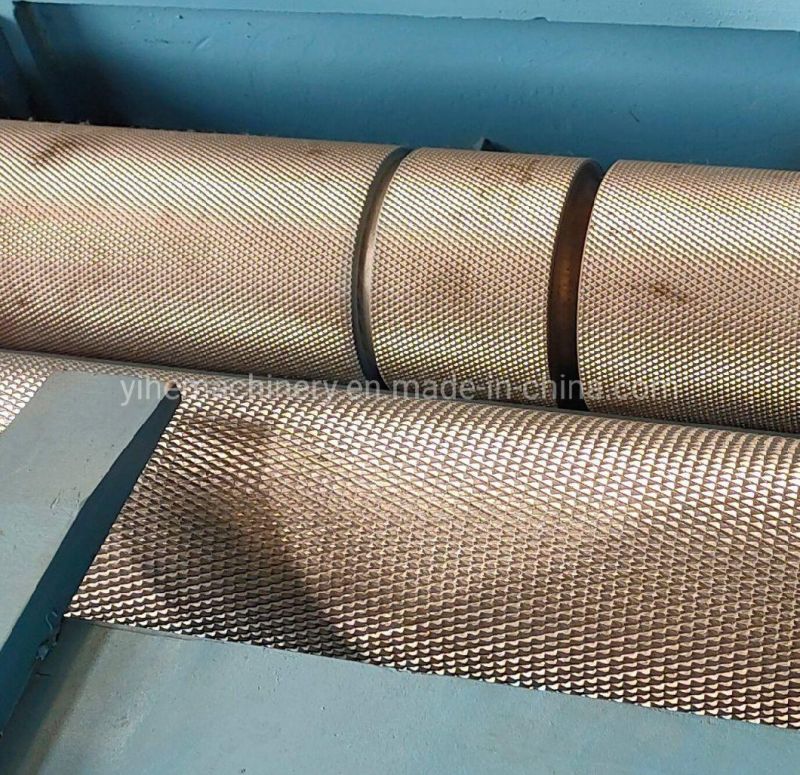

All peeling rollers of YIHE veneer peeling machine are quenched and electroplating process, the rigidity is better, we can choose the right roller patterns to meet your different wood species according to different kinds of veneer and wood.

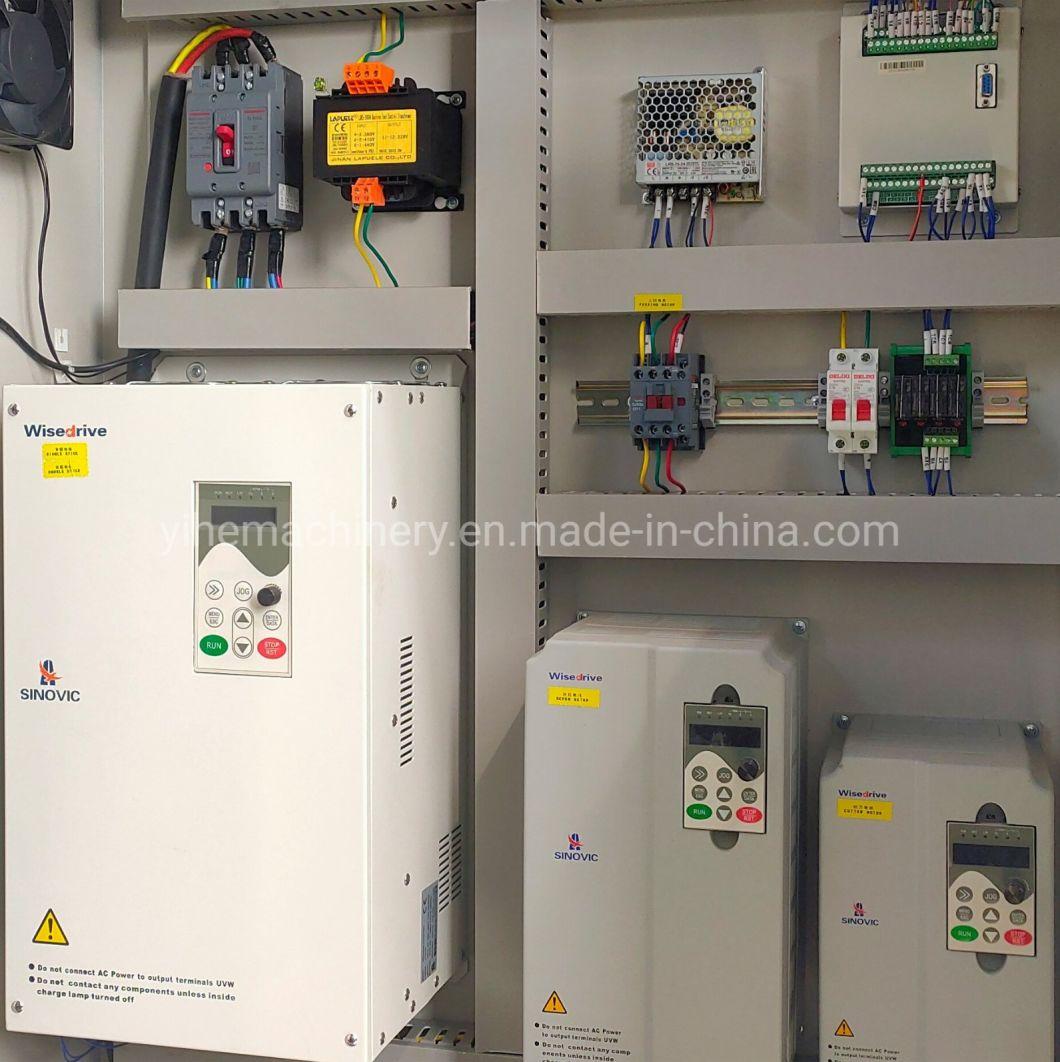

All YIHE veneer peeling machines use advanced PLC control system and France Schneider brand electrical parts. Operate easily and long service life.
Shandong Linyi Jianye Shunda Machinery Co., Ltd.(formerly Linyi Jianye Machinery Factory)founded in 1991, is a set of production, sales, service, reach and development as one of the multi-company and multi-category professional manufacturers of wood machinery, It is a modern management services company, under the construction industry Shunda Machinery Manufactur of Zhu Bao Branch, Jianye Rubber Products Factory and Jinze import and Export Co., Ltd.
After more than 20 years of continuous development and growth, under the sincere cultivation of the vast number of customers and the joint efforts of all the employees of the company, Now we have the brand of "Yihe" and six categories of series. Glue spreader machine series, drying machine series, hot press machine series, sawing machine series, in the patchwork (scraper) series and rubber products series. Become more than 40 kinds of products of large and medium-sized wood machinery professional manufacturers.
The company always adheres to the service aim of the brand, high efficiency, honesty and pragmatism, and sincerely expects to cooperate, develop and progress with domestic and foreign businessmen. With sophisticated equipment, advanced processing technology and perfect testing methods, the company continuously improves its technical level and strives to provide satisfactory professional and personalized wood-based panel machinery manufacturing and service for the vast majority of wood processing enterprises at home and abroad. Domestic and foreign businessmen are welcome to visit.
For more information, please visit our company website: yihemachinery.en.made-in-china.com
We can supply wood log cutting, wood log debarker, veneer peeling machine, veneer clipping machine, veneer stacking machine, veneer drying machine, veneer splicing machine, veneer glue spreader, veneer paving machine, plywood cold press machine, plywood hot press machine, plywood edge trimming saw machine, plywood sanding machine etc.
Meanwhile, we can customized all of the plywood machinery according to client's requirements.

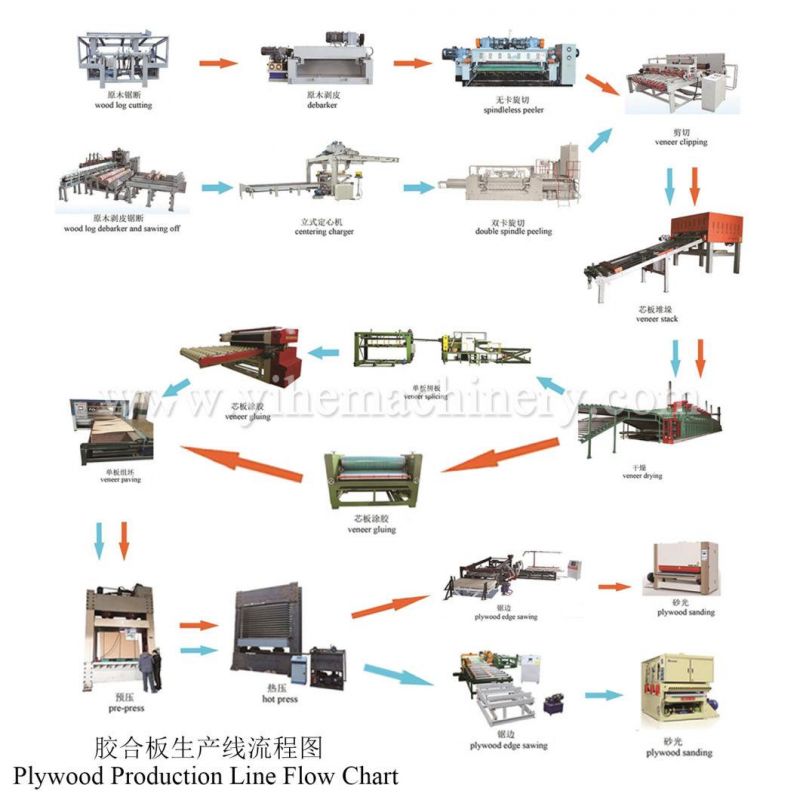

The plywood production line flow as follow:
