Automatic Biomass Briquette Extruder, Biofuel Wood Sawdust Briquette Press, Charcoal Briquette Making Machine
Zhengzhou AG Machinery & Equipment Co., Ltd.- Warranty：12 Months
- Work Forms：Screw
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Moulding Press
- Platen Surface Pressure：High Pressure
Base Info
- Model NO.：ZBJ-50
- Pressing Layer：Single Layer
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE
- After-sales Service：Online Service
- Model：Zbj-50
- Power：15kw
- Capacity：200kg,H Briquette Making
- Diameter of F Briquette：30,40,50mm
- Machine Dimension：1600*650*1400mm
- Machine Weight：700kgs
- Electrical Cabinet：Delixi Electrical Components
- Keyword 5：Charcoal Briquette Machine
- Keyword 6：Charcoal Briquette Making Machine
- Keyword 2：Wood Briquette Machine
- Keyword 1：Biomass Briquette Machine
- Keyword 3：Sawdust Briquette Machine
- Keyword 4：Briquette Extruder
- Transport Package：Wood Carton
- Specification：1780*750*1290 mm
- Trademark：AG Mach
- Origin：Zhengzhou, China
- Production Capacity：15 Sets,Month
Description
Product Description
Wood Briquette Machine can process wood wastes materials into charcoal efficiently, which is one kind of green biomass fuel. It is good substitute of good raw wood or excellent coal, smokelss, long burning time. Can be used for warming, heating, drying fuel, grilling, etc.
Briquette Press can be driven by electric motor or diesel engine, the raw materials is compressed under high tempreture and pressure by the screw extruding. With the intrinsic attributes of the wood materials, under high pressure, wood element in wood materials becomes plastic and makes the fine fiber combined, and then stick solid fuel is formed through the moulding tube.
The matural lignin content in the biomass liberated under high tempreture serves as glue in briquetting process, binding wood materials together, so no need any adhensive.
Product Parameters

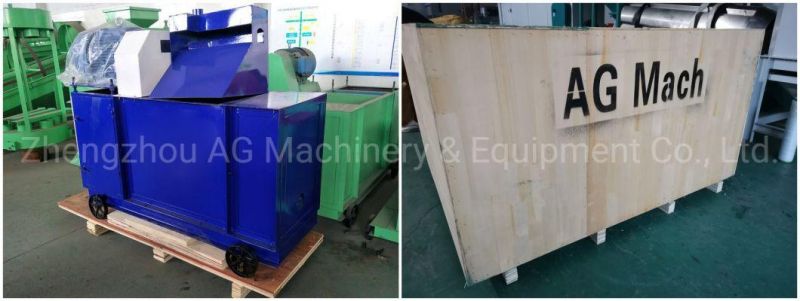

Packaging & Shipping

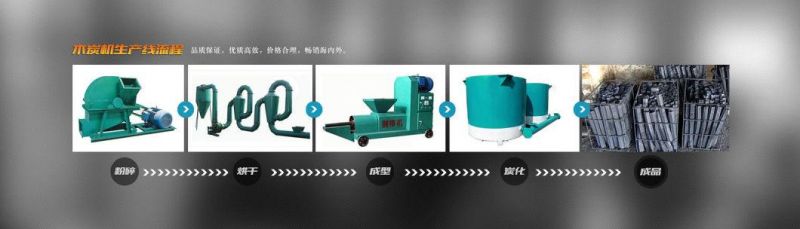

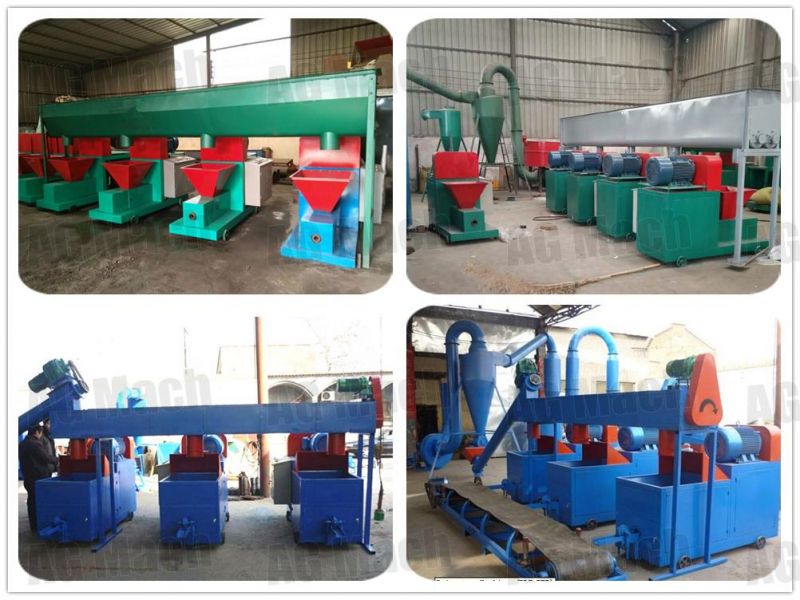

Complete Biomass Wood/Charcoal Briquette Making Line:
