• Model NO.：7TH XGJ850 rice husk pellet mill
• Warranty：1 Year
• Customized：Non-Customized
• Condition：New
• Color：Select
• Size：3300*1400*3100mm
• Weight：14500kg
• Pellets：4-12mm
• Output：2-3t,H
• Types：Vertical Ring Die
• Power Consumption：70-80%
• Pellet Forming Rate：More Than 95%
• Machine with：Fan Blower, Bag Dust Collector, Auto-Lubrication
• Transport Package：Container
• Specification：CE ISO9001 SGS
• Trademark：YULONG
• Origin：Shandong
• HS Code：84793000
• Production Capacity：100set,Month

Basic Info.

Model NO. 7TH XGJ850 rice husk pellet mill Warranty 1 Year Customized Non-Customized Condition New Color Select Size 3300*1400*3100mm Weight 14500kg Pellets 4-12mm Output 2-3t/H Types Vertical Ring Die Power Consumption 70-80% Pellet Forming Rate More Than 95% Machine with Fan Blower, Bag Dust Collector, Auto-Lubrication Transport Package Container Specification CE ISO9001 SGS Trademark YULONG Origin Shandong HS Code 84793000 Production Capacity 100set/Month

Product Description

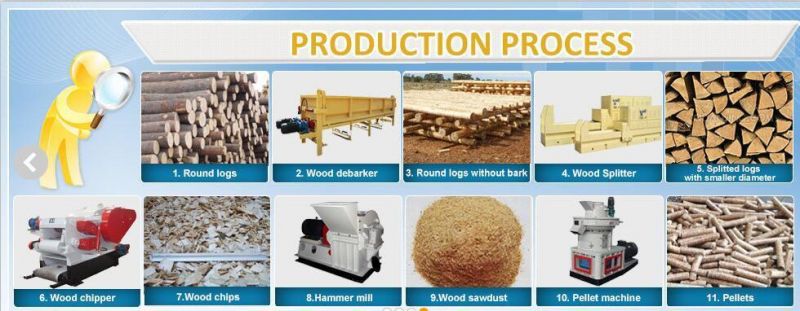

Produce biomass pellet prod0uction line machines such as wood debarking machine, wood logs splitter, wood chipper, hammer mill crusher, straw bale crusher, grass cutter, dryer and cooler, pellet machine and briquette machine, various mixer, screener, biomass pellet stove, pellet packing machines and all conveyors e. C. T, for wood pellet machine, introduction as below:

1. Wood pellet machine
Can press high crude fiber biomass and chemical fertilizer materials into 2-8MM diameter pellets. It is specially fit for biomass waste from wheat straw or rice straw, corn stalk, rice husk, palm fiber, palm shell or groundnut shell, very hard wood e. C. T, also can press fertilizer granules from animal manure, plant waste, chemical waste e. C. T, before pelletizing, raw materials should crush into fine powder, humidity should control between 15%-20%.

2. Wood pellet machine
Adopts both common ring die pellet machine and flat die pellet machine advantages, working principle is roller assemble rotary, the ring die keep stable, producing high pressure and press very low adhesive biomass waste into high density pellets --- 1.1-1.4ton/m3. Pellet length can be adjusted

3. Wood pellet machine contains hydraulic pump, which can adjust pressure between rollers and ring die to fit for different materials pressure ratio.
When adjusted to the fit pressure, pressure will keep stable automatically, but other supplier pellet press need to adjust pressure manually each time.

4. Sawdust pellet machine also contains automatical lubricate spare parts oil systems, which can lubricate spare parts oil automatically---- such as rollers, vertical shaft, gears, bearings, but other common supplier pellet machine needs to add oil each four working hours, very trouble to operate. This technology got national patent

5. Wood pellet machine adopts flat die pellet machine vertical feeding materials advantages, feed materials vertically and directly to pelletizing room, ring die and roller assemble works in horizontal type, but other supplier common ring die pellet machine only can feed materials from gear box side and its ring die works in vertical type, their feeding speed and working efficiency are both very low. Its spare parts can not produce large pressure, especially inner big shaft and bearings, if can not produce large pressure, after long continuous hours, will be easily broken

6. Wood pellet machine
Has one ring die with two--layers: The top layer and bottom layer. When pellet machine works, Roller assemble will rotary, toughing with ring die bottom layer,
The ring die keeps stable, once ring die bottom layer was broken,
Turn over it and make the top layer to bottom, then it will work secondly time.
So one ring die can use two times. Also the top and bottom layer hole dimension can be different, so one ring die can press into two different diameter pellets.
But other supplier pellet machine just have one layer and only can press one dimension pellets.

7. Wood pellet machine
Works with air fan and bags dust filter, on one hand, it will clean dust, very environmental protection. On the other hand, it can cool pellet machine inner spare parts heat temperature,
Making sure long continuous working hours.

8. Wood pellet machine
All spare parts are made by CNC systems, through high technical heat treatment. We sold out more than 5000 sets XGJ pellet machine per year, have big discount for old customer, greatly welcome to ask me for details.


Model	Power (kw)	Capacity (kg/h)	Weight (ton)
XGJ560	90	1.2-1.8	6.7
XGJ720	160	1.5-2.5	7
XGJ850	220	2-3	14.5
XGJ920	315	3-5	18
XGJ1050	450	5-6	29
XGJ1250	660	7-8	48
