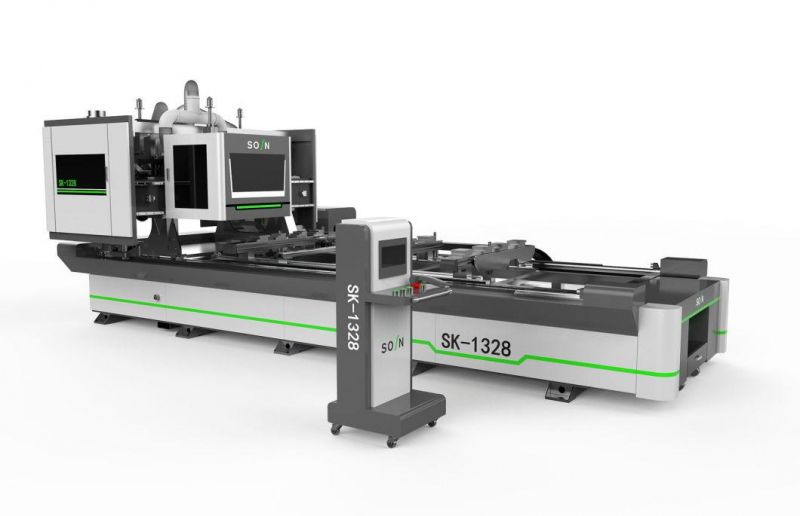

• Model NO.：SK1328A
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Model：Sk1328A
• Motor Power：5.5+1.1 Kw
• Max Cutting Length：2700mm
• Max Cutting Width：1200
• Max Cutting Thickness：65 mm
• Brand：Sosn
• Application：Wood Saw
• Original：Qingdao
• Warranty：2 Years
• Voltage：220V,380V
• Transport Package：Plywood Wooden Case Package
• Specification：5500*2300*2300MM
• Trademark：SOSN
• Origin：China
• HS Code：8464101000
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SK1328A Certification CE, ISO Customized Customized Condition New Color Customized Model Sk1328A Motor Power 5.5+1.1 Kw Max Cutting Length 2700mm Max Cutting Width 1200 Max Cutting Thickness 65 mm Brand Sosn Application Wood Saw Original Qingdao Warranty 2 Years Voltage 220V,380V Transport Package Plywood Wooden Case Package Specification 5500*2300*2300MM Trademark SOSN Origin China HS Code 8464101000 Production Capacity 500PCS/Month

Product Description

Main parameters

Travel size	1300*2800*150mm	Speed of main saw	4500-4600rpm
Work table size	1300*2800mm	Speed of scoring saw	7000-9000 rpm
Max cutting length	2700mm	Max working speed	25m/min
Max cutting width	1200mm	Diameter of scoring saw blade	120mm
Max cutting thickness	65mm	Diameter of main saw blade	300mm
Table structure	Moveable gantry	Driving system	Servo motor
Drive type	Rack and pinion	Weight	4500kg
Motor power	5.5kw*3+1.1kw*3	Control system	Taiwan Fatek
Packing size of loading robot arm	1320*1000*30mm 2750*43*35mm	Overall size	5500*2300*2300mm

FAQ

List some questions below we think you may want to know, if you have more doubts, we are right here to help you.
1, What size of sliding table panel saw is right for me?
---Standard length of the saw is 3200mm, 3000mm, 2800mm.
Considering your own usage, you can know which size saw you need. Or we will recommend to you.
 2, After knowing the size, then which model is right for me?
---There are three main matters you need to consider, then we can know which model for you.
---Firstly, the cutting angle, do you need tiliting 0-45 degree(0 degree is just 90 degree), or fixed 90 degree?
If tilting, you prefer electric tilting or manual tilting?
3, After knowing the right model saw, then what's your price?
---Price depends on the components is imported or Made-In-China, usually we recommend imported world famous components, because once they are broken, you can buy in your side easily.
4, What's your warranty?
---In 24 months.
5, What's youe lead time?
---In 25 working days.
6, What's your delivery term?
---FOB Qingdao China usually
7, What's your payment term?
---30% T/T deposit, balance T/T payable before delivery after inspection.
8, What's  the HS code of sliding table panel saw?
---In China it is 8465910000.

If any question , please feel free to contact with us
