• Operator Quantity：1person
• Usage：Logs Peeling to Veneer
• Motor Power：41.4kw
• Max Wood Diameter：600mm
• Thickness of Veneer：0.5-4mm
• Weight：6000kgs
• Machine Speed：80m,Min
• Wood Length：1300mm
• Function：Plywood Machine
• Transport Package：Standard Waterproof Export Package
• Specification：4500*1600*1400mm
• Trademark：GeeLong brand
• Origin：China
• HS Code：8465960000
• Production Capacity：600sets,Year

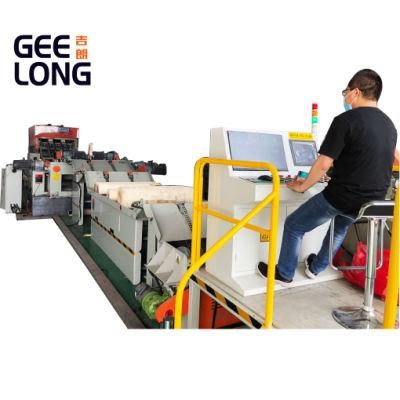

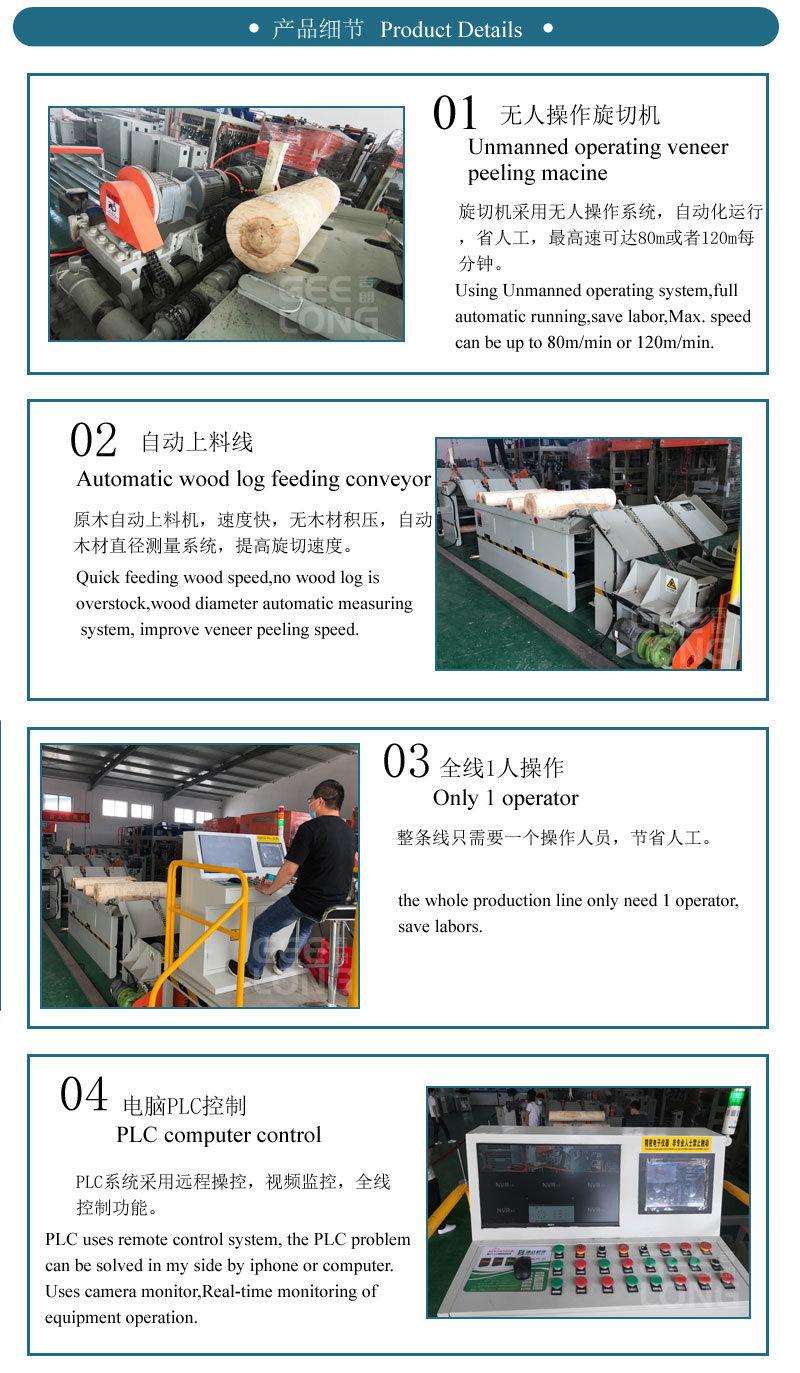

this is plywood machine 5ft full automatic veneer machine peeling line.the whole line includes log feeding conveyor,wood debarking machine,veneer peeling machine and veneer stacking machine.the whole line is controlled by the computer. the whole line only need 1 operator.
from starts to the end, the whole producton process is automatic.


4ft automatic veneer peeling machine line machine list
No.	item	Quantity
1	wood log loading machine for debarking machine	1set
2	4ft wood log debarking machine	1set
3	rounding wood log loading machine for veneer peeling machine	1set
4	4ft veneer peeling machine	1set
5	automatic vacuum sorveneer stacking machine	1set
6	full automatic running PLC system	1set

model no.:GLNDP4wood length:900-1300mmknife blade lengh:1500mmwood diameter:∅80-500mmthickness of veneer peeler:0.8-4mmlinear speed of host machine80m/mindouble roller diameter118mmsingle roller diameter:118mmfeeding  motor power:11kw servo motormotor brandsiemens brandtotal power: 42.9kwtotal weight:6000kgsmachine dimesion:4500*1900*1450mm
