• Model NO.：V6
• Model Number：V6
• Price：Competitive
• Quality：High Quality
• Export Markets：Global
• Spindle Speed：24000rpm
• Spindle Mode：Italy Air Cooling
• Rail：Imported Linear Guide Rail
• Power Supply：3pH 380V,220V

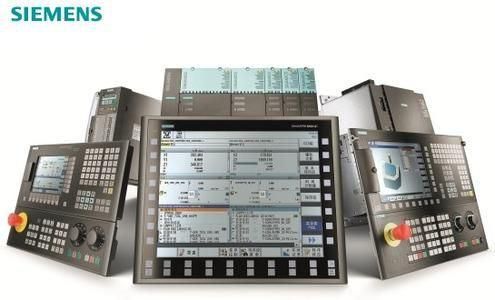

• Operation System：Weihong ,Siemens
• Type：Engraving Router
• Controlling Mode：CNC
• Feed Mode：Mechanical
• Spindle Number：Single-Spindle
• Spindle Layout：Spindle Over
• Transport Package：Wood Packaging
• Specification：Horizontal
• Trademark：Mintech
• Origin：China Guangdong Province
• HS Code：8548900090
• Production Capacity：200unit , Month

Basic Info.

Model NO. V6 Model Number V6 Price Competitive Quality High Quality Export Markets Global Spindle Speed 24000rpm Spindle Mode Italy Air Cooling Rail Imported Linear Guide Rail Power Supply 3pH 380V/220V Operation System Weihong /Siemens Type Engraving Router Controlling Mode CNC Feed Mode Mechanical Spindle Number Single-Spindle Spindle Layout Spindle Over Transport Package Wood Packaging Specification Horizontal Trademark Mintech Origin China Guangdong Province HS Code 8548900090 Production Capacity 200unit / Month

Product Description

Mintech V series is a kind of X, Y, Z axis adopts screw drive CNC machining center. Ensure the effective operating speed and the precision of the machine;

1. The mechanical structure, The Longmen high rigid structure, The machine adopts a rectangular pipe welding, annealing to stress after heat treatment, fine machining
Using the table to move, Longmen frame does not move
2. Drive system
X, Y, Z axis adopts imported screw drive, both speed and accuracy, stable performance, reasonable structure
, Three axises adopts imported linear guide rail
3. Automatic tool setting gauge
Automatic detection of tool length, quick setting material Zero plane
4. Spindle drive
The spindle driven imported by frequency control, Imported Italy HSD and the series of frequency conversion spindle, 3000-24000RPM, Optional buy from domestic water-cooled spindle
5. The cutter bar and chuck
Taiwan imported cutter bar and chuck; High rigidity, high hardness materials;
The precise dynamic balance: G2.5 30000rpm/50000rpm
6. Vacuum table
Vacuum table greatly improve the work efficiency; And each partition can be controlled separately
7. Kinetic control system
Weihong WEIHONG

Application


Sample

Applicable industry:

Advertising production

LED luminous characters

LED light guide plate

Exhibition, Display

Wood furniture

Decoration

Copper and aluminum processing

Engineering plastic

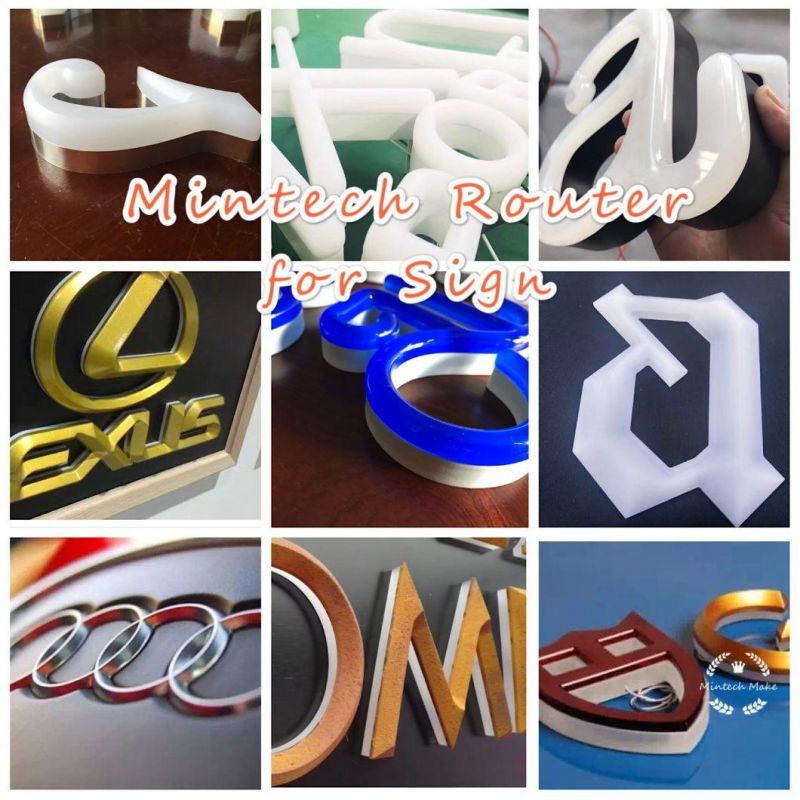

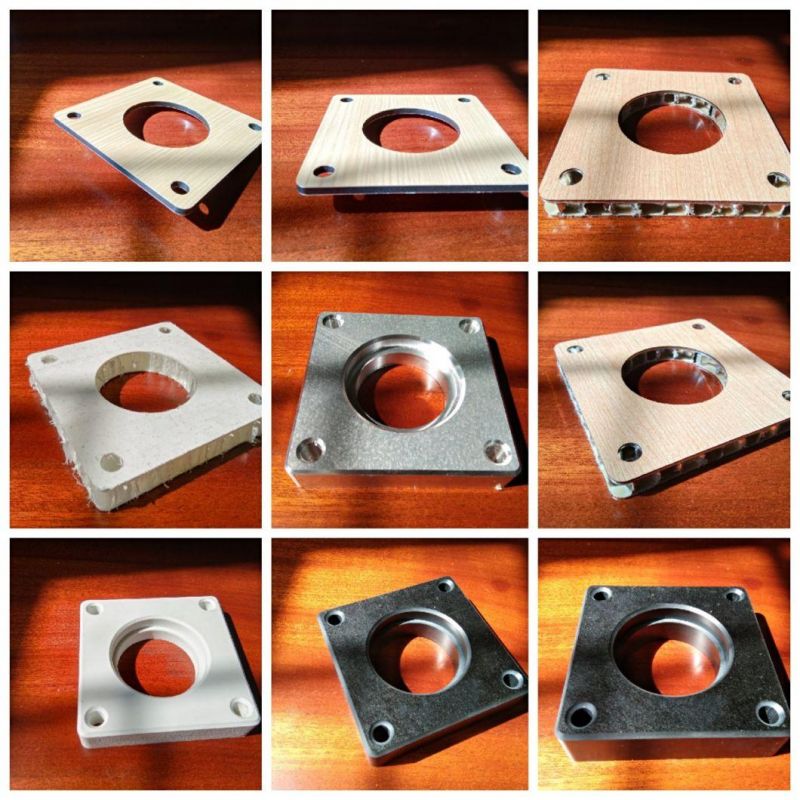

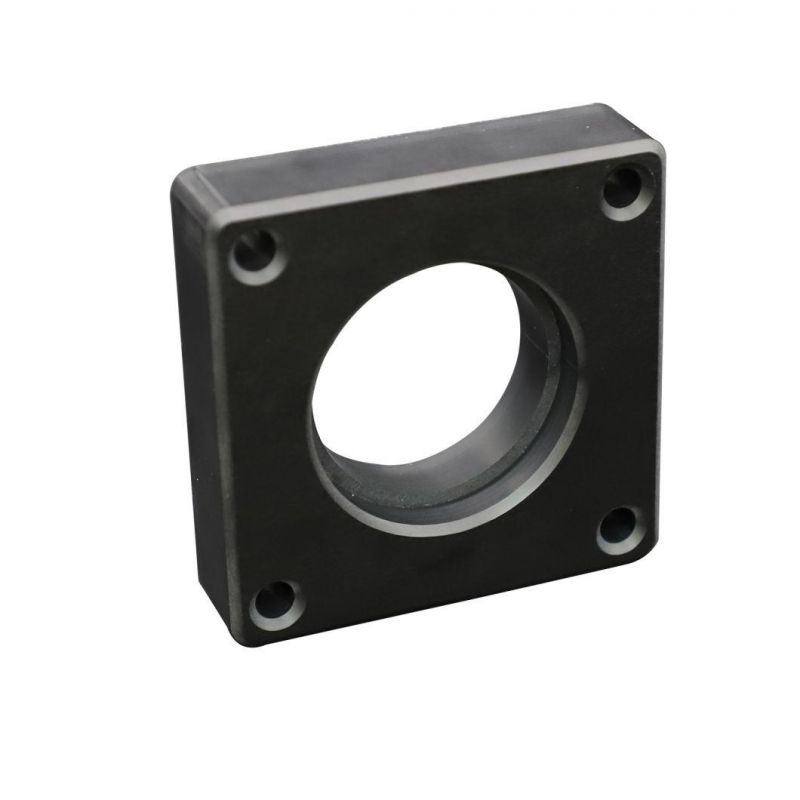

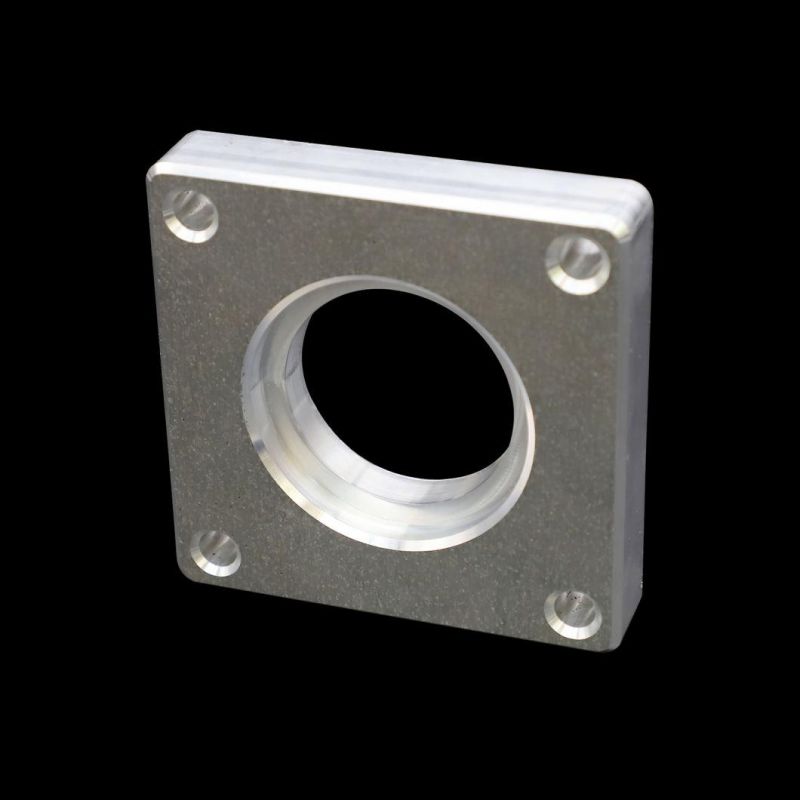

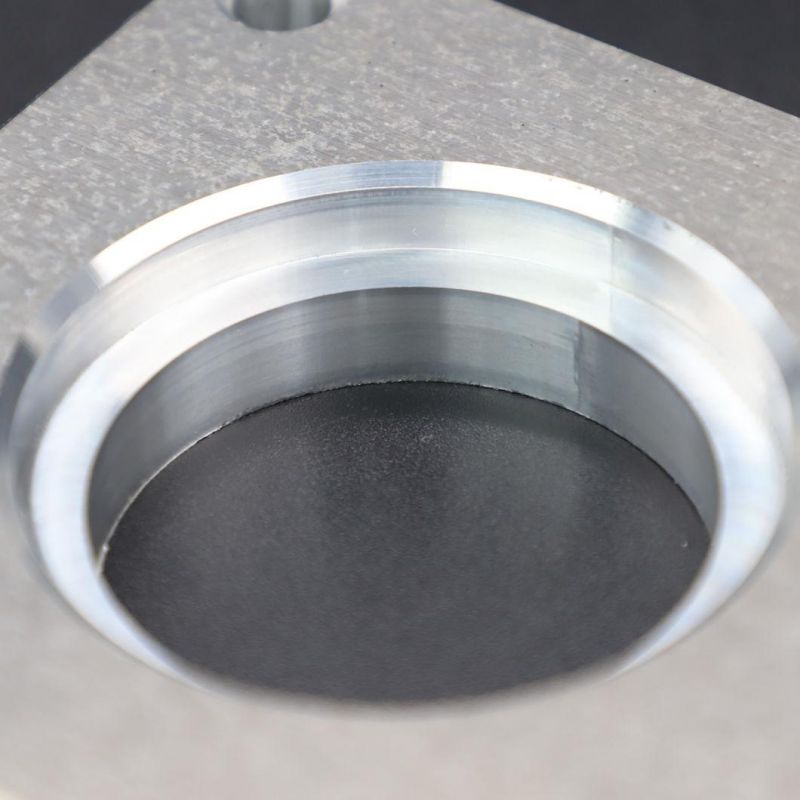

CNC Router processing samples show:

Repeatability:	+/- 0.05mm
Cutting Speed:	25.4 m/min
Rapid Traverse:	43.2 m/min
Z-axis Clearance:	200mm
ZZ-axis Travel:	305mm
Machine Size:	2370mm×2000mm×2000mm
Working Area(mm×mm)	1220mm×1220mm
Power Supply	Three phase 380V/220V

Workshop
