• Model NO.：8-10tons,hr
• Warranty：1 Year Except Spare Parts
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Lifetime After-Sales
• Capacity：3-4ton,Hr
• Power：500kw
• Pellets Diameter：6-10mm
• Weight：30ton
• Suitable Materials：Wood, Sawdust, Rice Husk, Biomass Waste and So on
• Lubrication System：Automatic
• Power Consumption：75%
• Spare Part：Ring Die and Roller Group
• Transmission：Reducer
• Pellet Mill Type：Ring Die Pellet Mill
• Application：Making Biomass Pellet
• Bearing：Hrb Brand
• Material of Die and Roller：High Alloy Steel
• Installation：Manual,Video Chat,Engineer Guide
• Transport Package：Container
• Specification：4000*1825*2700mm
• Trademark：TONY
• Origin：China
• HS Code：8479300000
• Production Capacity：500unit,Year

Introduction and application of  biomass energy wood pellet line

The pellet line through our research and design is manufactured for produce the wood pellets, Main equipments within it include Wood Crusher, Dryer, Storage bin, Screw Conveyor , pellet mill, Hoisting machine, Cooling and dusting machine and Packing machine. It has advantages such as compact structure, good appearance, high yield, less consumption, convenient and reliable performance etc.

: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree),
bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass,
bagrass, palm fiber, waste paper, non-physical material
Size:2-4mm (All the raw materials must be crushed into sawdust before going
to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet

The  biomass energy pellet line mainly processes includes:
Crushing- Grinding-drying - pelleting - cooling - packing

Step

Product name

Technical Parameter

Main machines for choosing

1

Raw material

*If you need to bare a tree of its bark, from 2 step;

*If logs or other large size materials, from 3 step, be splited into wood chips

*If small pieces, directly from 5 to reduce the size suitable for pelleting

/

2

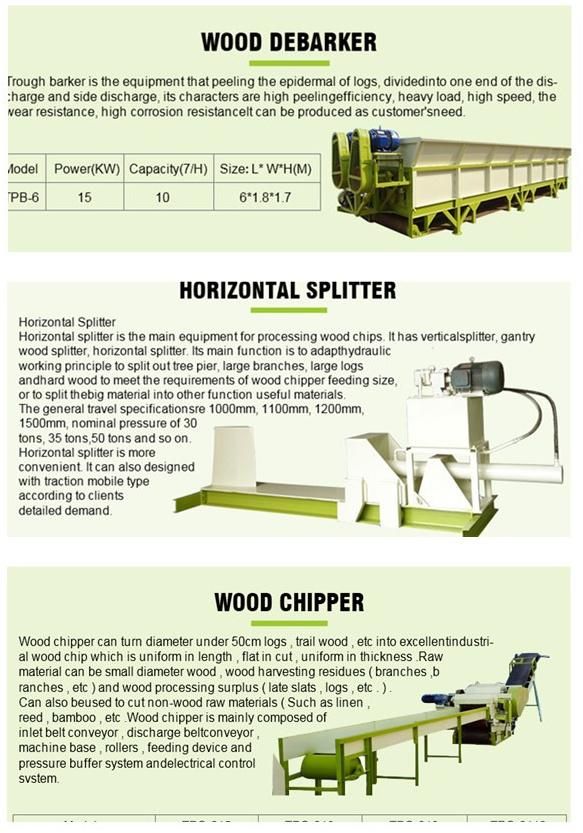

Barking process

For making high quality pellets(optional)

Debarker machine

3

Crushing process

Raw materials (size: thickness >10mm and L * W >50 * 50mm), are crushed or shreddered into chips or small size.

1.Log splitter

2.Sawdust Chipper

3. Drum Chipper

4.Mobile Branches Grinder

5.Chaffer Cutter

6.Palm Fiber Making Machine

4

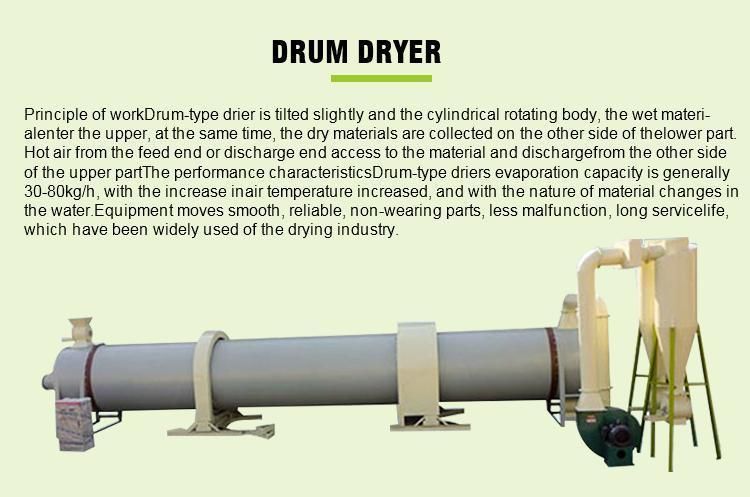

Dryer

(with hot stove)

Rotary Dryer includes Stove and Main Rotary Dryer, which can reduce the moisture from 50% to 10%. Our stove is fueled by coal and biomass fuel, saving electrical energy largely.

(client can build the hot stove by self, and we provide its drawing)

The moisture content of raw materials must be controlled :10%-15%.

1.Rotary Drum Dryer

2. Air Flow Dryer

5

Grinding process

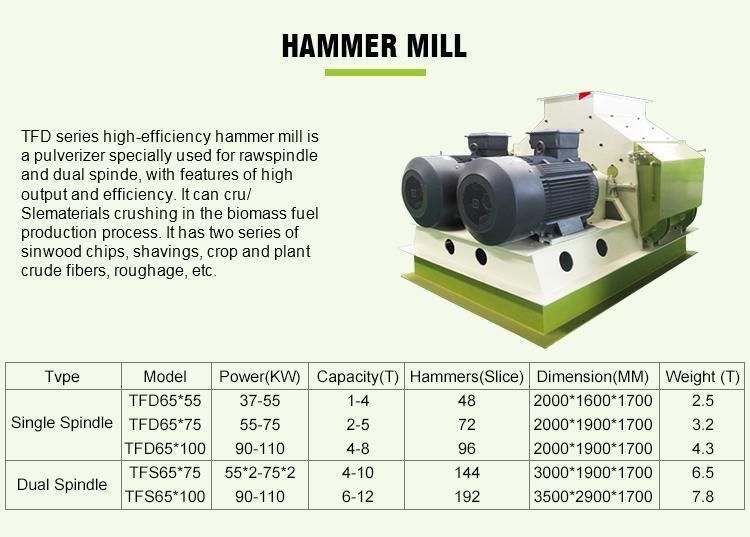

The chips or small size raw material are ground by hammer mill to particle size less than 5mm suitable for pelleting.

1.High efficiency Hammer mills

2.Multifunctional hammer mills

3.Wood Crusher

4.Straw Hammer Mill

5.Straw Rotary Chopper

6

 Pelleting process

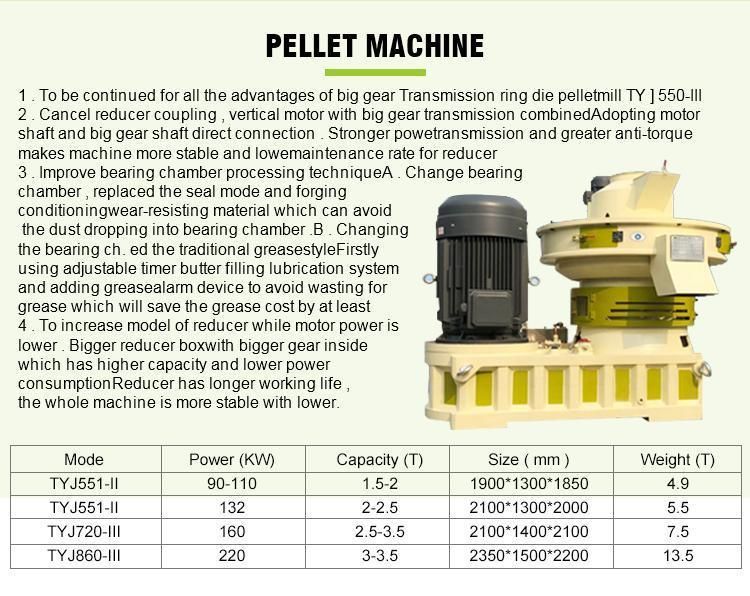

Pellet mill machine is the most important equipment : Press raw material into pellet.

1.TYJ series Ring Die pellet mills

2.Skj series Flat Die pellet Milll

7

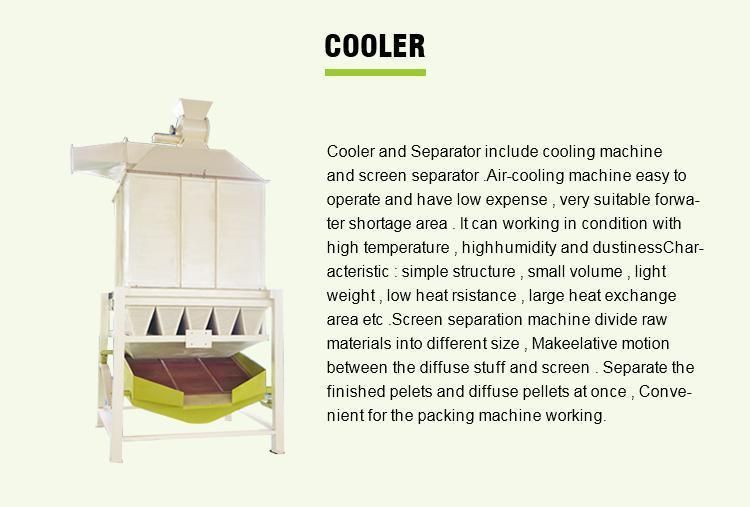

Cooler Separator

Complete closed structure, stainless sieve,

low noise and stable operating

Cooler Separator

8

Transport modules between the components

Elevating Conveyor,  belt conveyor,  screw conveyer

9

Pulsed dust

collector

collecting dust, clean the pellet.

Pulsed dust

collector

10

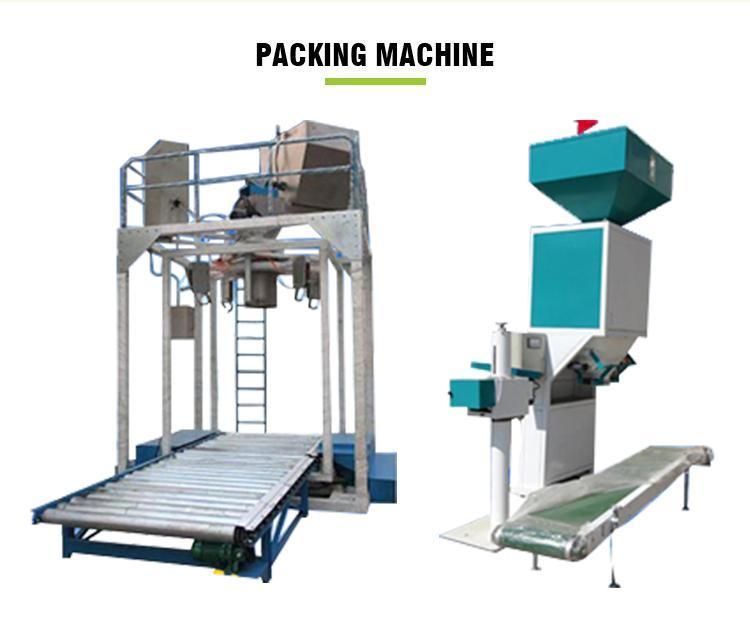

Packing Machine

In this process, we suggest our Semi-Auto Packing Machine to you.

The weighting scope of this machine is 15kg-50kg

per bag.

1.Ton Packing Machine

2.Automatic Packing Machine

3.wood Shavings Bales

1.Crushing Process:

2.Grinding Process:

3.Drying Process:

4. Pelleting Process:
5. Cooling Process:

6. Packing Process:

After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic Semi-Auto Packing Machine to you.

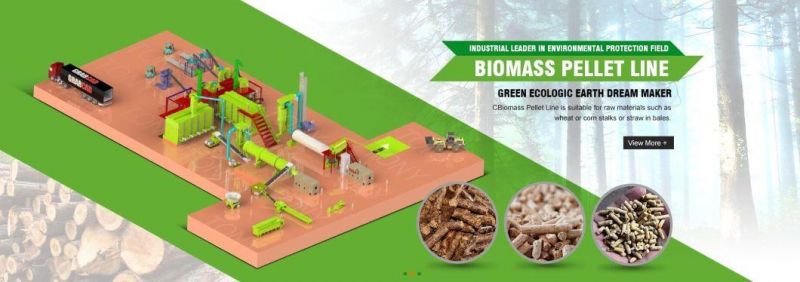

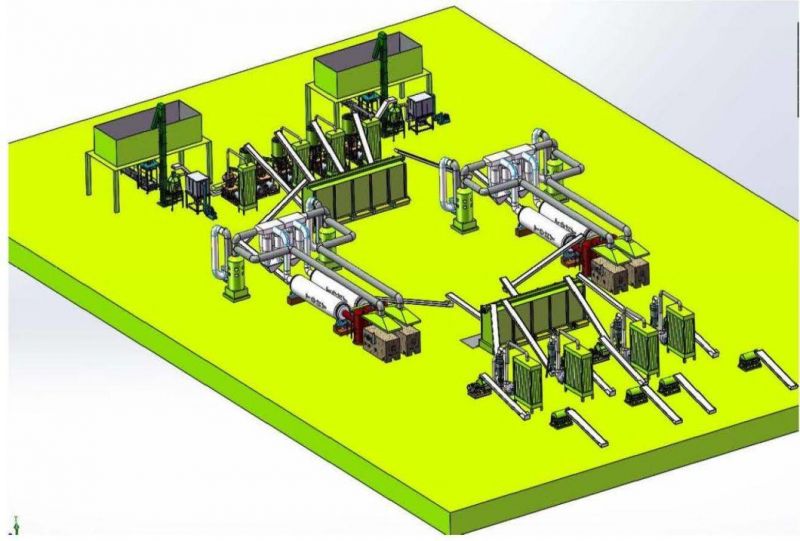

Design Drawings for Complete Wood Pellet Line

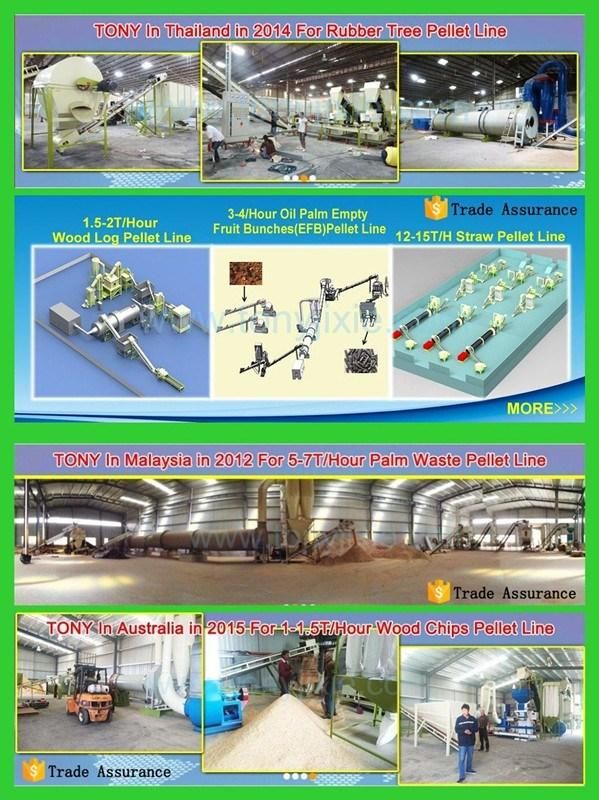

Successful cases for Complete wood Pellet line
TONY  is an integrated enterprise specializing in development, production and sales, which is a professional pelleting equipment manufacturer for many years. Located in Zhangqiu,Jinan,North China, we enjoy convenient water, land, railway and air transportation.

We are a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill(flat die low temperature pellet mill, vertical ring die pellet ,),feed pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
