Woodworking Machinery

High Speed 5 Spindle Wood Automatic 4 Side Planer Moulder for Sale

Qingdao High-Class Service Import & Export Co., Ltd.
  • Type:Four-Side Planer
  • Working Depth:8-160mm
  • Working Width:20-230mm
  • Drivetrain:Worktable Elevating Drivetrain
  • Enter Method:Pushing
  • Motor Power:38.25kw

Base Info

  • Model NO.:HC523
  • Cutter Shaft:5
  • Spindle Speed:6800r,Min
  • Process Type:Heavy Processing
  • Certification:CE, ISO
  • Name:Four Side Planer
  • Working Thickness:8-160mm
  • Feeding Speed:6-36m,Min
  • Spindle Diameter:40mm
  • Total Power:38.25kw
  • Weight:4600kg
  • Dust Port Diameter:150mm*5PC
  • Dimension:4280*1780*1750mm
  • Transport Package:Standard Packing or Packing According to Customer
  • Specification:4280*1780*1750mm
  • Trademark:HICAS
  • Origin:Qingdao
  • HS Code:84659500
  • Production Capacity:50

Description

380v 50hz 3phaseDust collection port 150mm*5pc150mm*6pcMachine size4280*1780*1750mm4960*1780*1750mmMachine weight4600KG5600KG

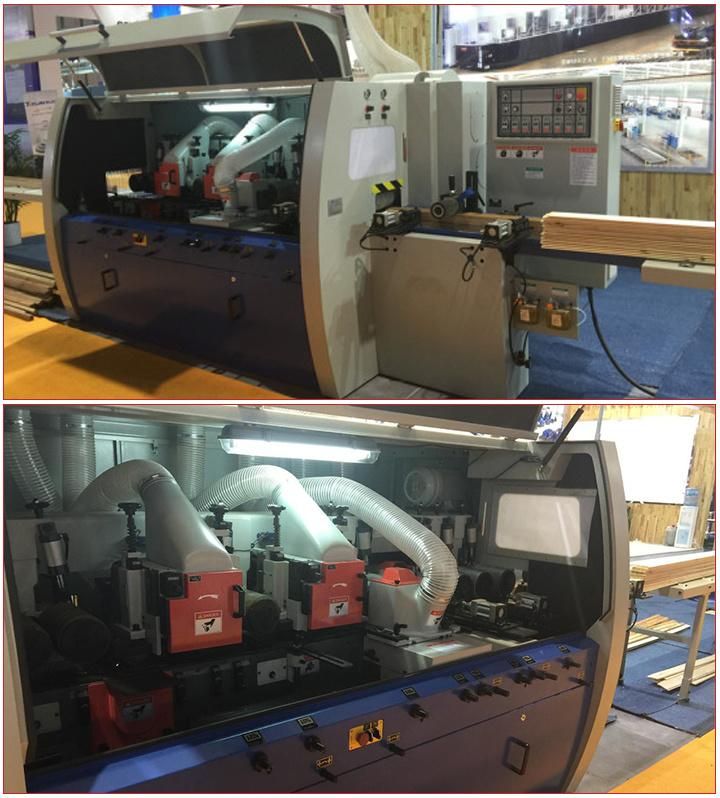

High Speed 5 Spindle Wood Automatic 4 Side Planer Moulder for Sale

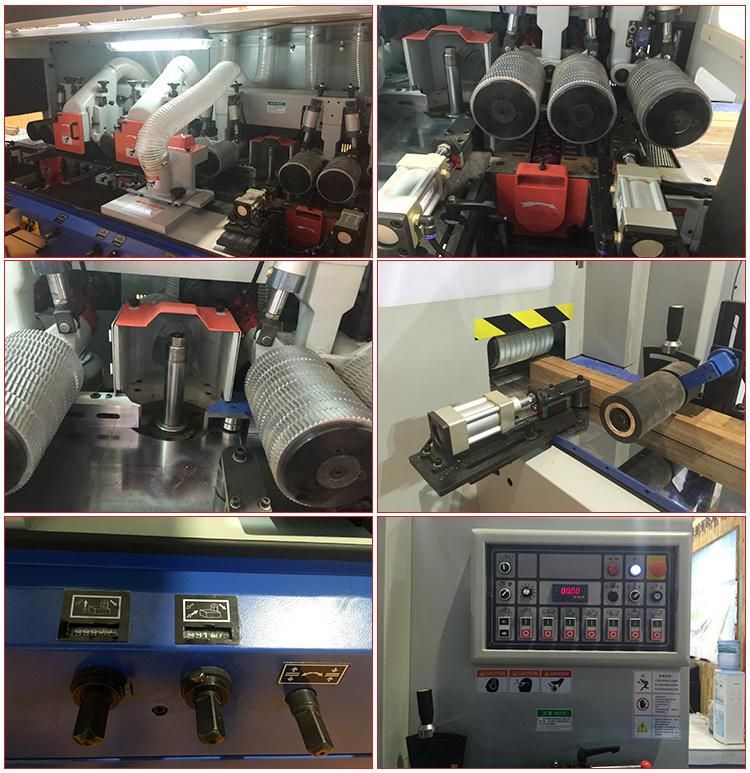

Machine Specification:
1. This machine adopts an overall casting body, which has stable performance and high rigidity.
2. Fully-enclosed safety cover and door opening protection, low noise, safety and environmental protection.
3. The main shaft is precision-machined, balanced, and assembled accurately, and its operation is stable and precision is good.
4. The working table surface adopts special materials and special heat treatment, hard chrome plating, wear-resistance.
5. Feeding system front and middle and rear use three cylinder press, stable pressure, easy adjustment.
6. All the cutter shafts are driven individually, cutting strong and powerful.
7. Feeding belt adopts stepless transmission and universal joint transmission, stable and reliable, easy to operate.
8. All electrical components and transmission components adopt imported components from international brands, and their performance is stable.

High Speed 5 Spindle Wood Automatic 4 Side Planer Moulder for Sale

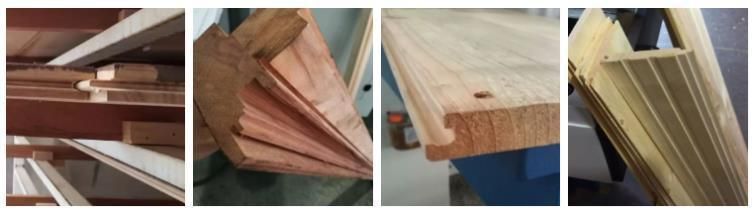

Final Product:
High Speed 5 Spindle Wood Automatic 4 Side Planer Moulder for Sale


About Us:
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
High Speed 5 Spindle Wood Automatic 4 Side Planer Moulder for Sale
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
   a. 12 months warranty for the whole machine
   b. Technical support by phone, email or WhatsApp/Skype around the clock.
   c. Friendly English version manual and operation video CD disk
   d. Engineer available to service machinery overseas.

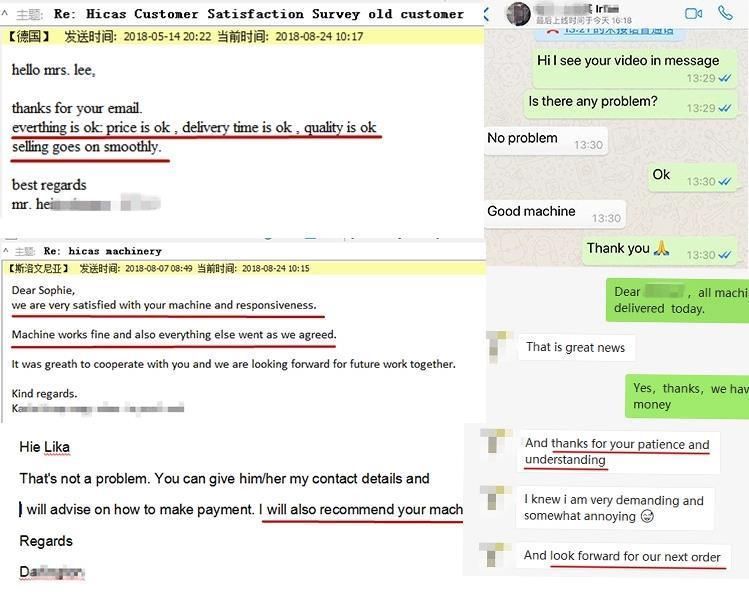

7. Customer feedbacks
High Speed 5 Spindle Wood Automatic 4 Side Planer Moulder for Sale
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
