CNC Rotary Die Cutting Machine with Cheap Price Rotary Die Cutting

WORTHY TALL INDUSTRY CO., LIMITED
  • Type：Wooden Mold Router
  • Spindle Layout：Vertical
  • Spindle Number：Double-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC
  • Certification：CE

Base Info

  • Model NO.：WT-RC
  • Customized：Customized
  • Condition：New
  • Color：Blue White
  • Weight：1700kg
  • Support File：Dxf Dwg CDR Plt
  • Power：3kw 220V Single Phase
  • Working Length：3000mm
  • Working Diameter：170-800mm
  • Material Thickness：13mm, 16mm
  • Working Material：Beech, Plywood
  • Cutting Speed：600-1000mm,Minute
  • Cutting Accuracy：+,-0.1mm
  • Motor：3kw Dorna Server Motor
  • CNC or Not：Yes
  • After-Sales Service：on Line
  • Air Supply：0.6 MPa
  • Usage：Rotary Wood Sawing
  • Recommend Spare Parts：Saw Blade
  • Transport Package：Sea-Worthy Wooden Packing
  • Specification：4200*1200*2200
  • Trademark：WT
  • Origin：Dongguan City China Prc
  • HS Code：8441100000
  • Production Capacity：200PCS,Year

Description

 8441100000
WT-RC  Auto CNC Cutting  Machine Features:
    1. Features :
Specially developed software can import your CAD designs of corrugated box, computer controls cutting drill on servo motors to do cutting job on rotary die board, exactly same as your design.
    1. Cutting Unit:
It cuts with special drill. (one drill can cut several even more than 10 sets of dies)It is not laser.
    1. Advantages:
Compared to Hand Cutting: higher accuracy, higher efficiency and perfect cutting
Compared to Laser Cutting: low power consumption, low running cost, milling cutter consumption only, no need expensive air, no carbonization which results in better steel rule holding ability. More Environmental protection.
    1. Fully automatically drilling cut the installation hole, one-time to complete the rotary die cutting process

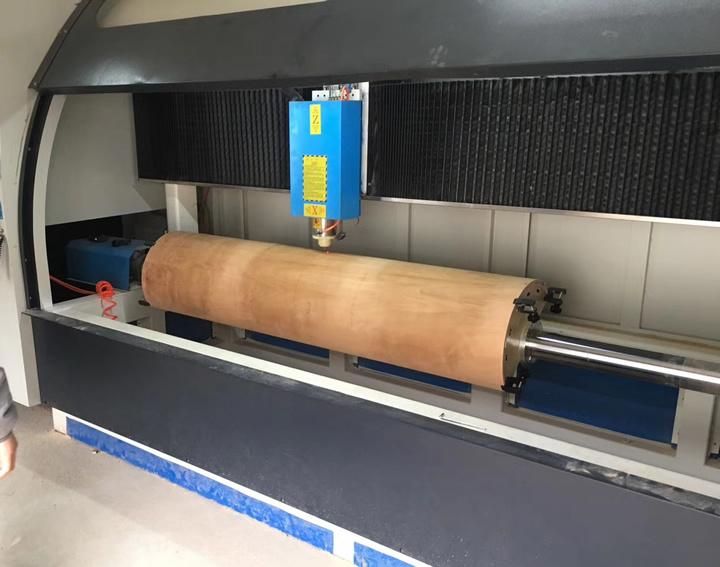

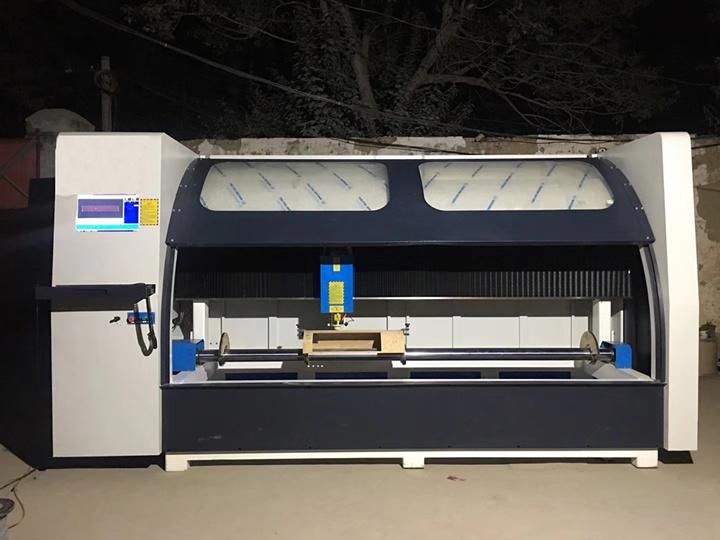

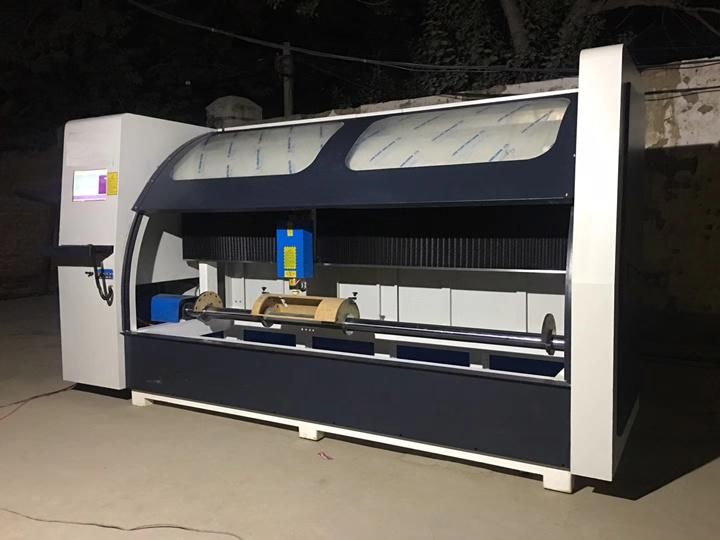

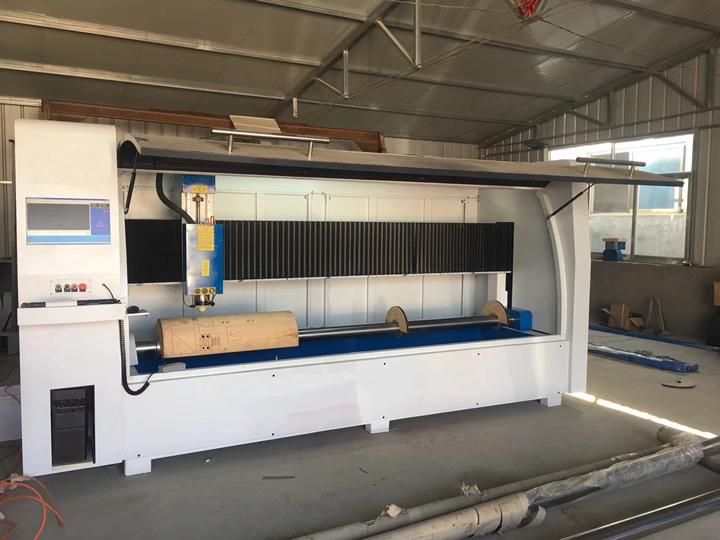

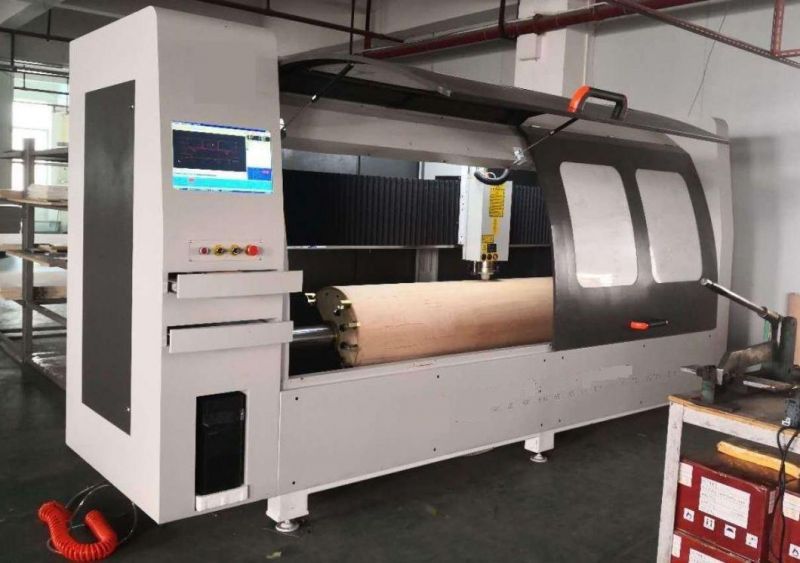

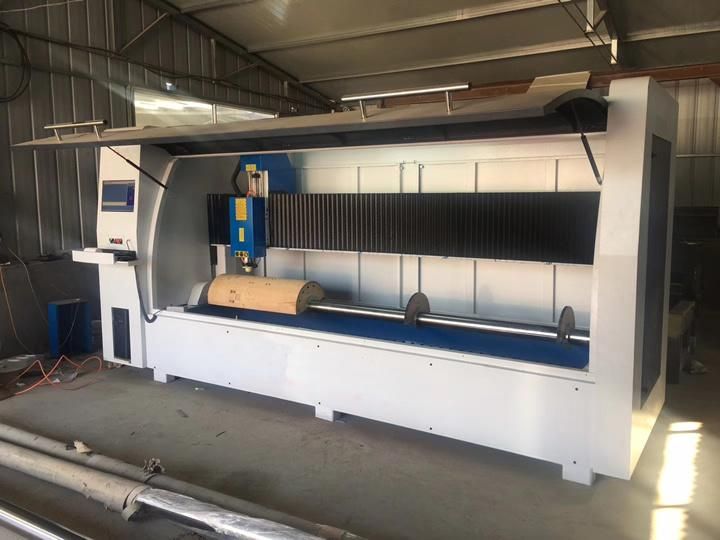

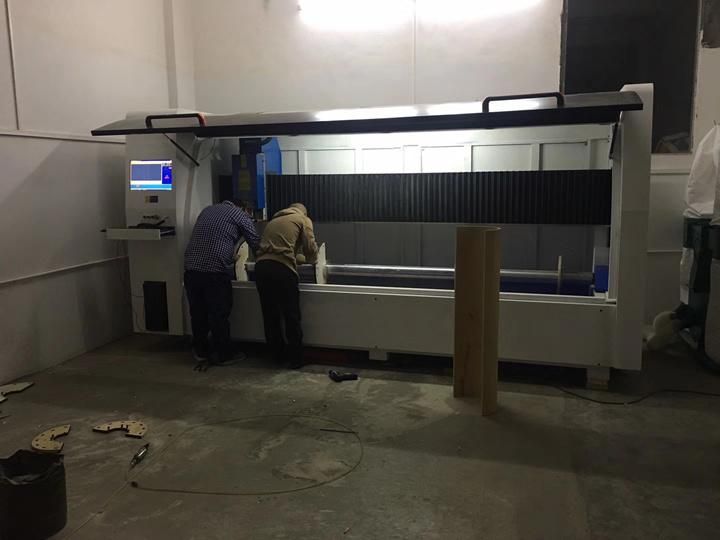

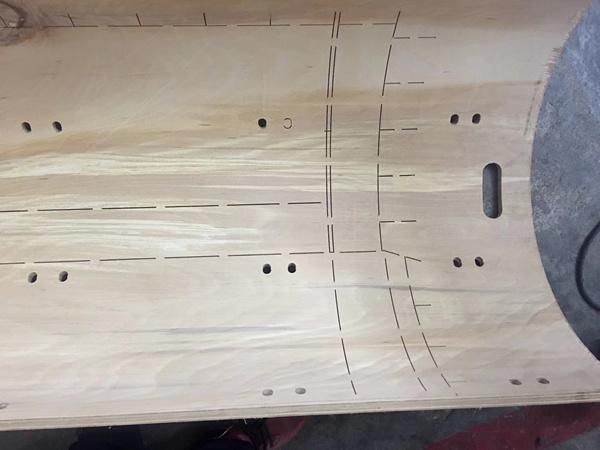

WT-RC Auto CNC Cutting Machine Pictures:
