• Spindle Height：200mm
• 200mm：Vacuum Table
• Max. Power Consumption：2.0kw
• Max. Working Speed：25000mm,Min
• Spindle Power：9.0kw Hqd
• Spindle Speed：0-24000rpm
• Drive Motors：Yaskawa Servo Motor
• Control System：Syntec 6MB
• Transport Package：Wooden Package
• Specification：13 cubic meter package
• Trademark：SIGN-CNC
• Origin：China
• HS Code：8465990000
• Production Capacity：1000set,Year

Basic Info.

Spindle Height 200mm 200mm Vacuum Table Max. Power Consumption 2.0kw Max. Working Speed 25000mm/Min Spindle Power 9.0kw Hqd Spindle Speed 0-24000rpm Drive Motors Yaskawa Servo Motor Control System Syntec 6MB Transport Package Wooden Package Specification 13 cubic meter package Trademark SIGN-CNC Origin China HS Code 8465990000 Production Capacity 1000set/Year

Product Description

Specification

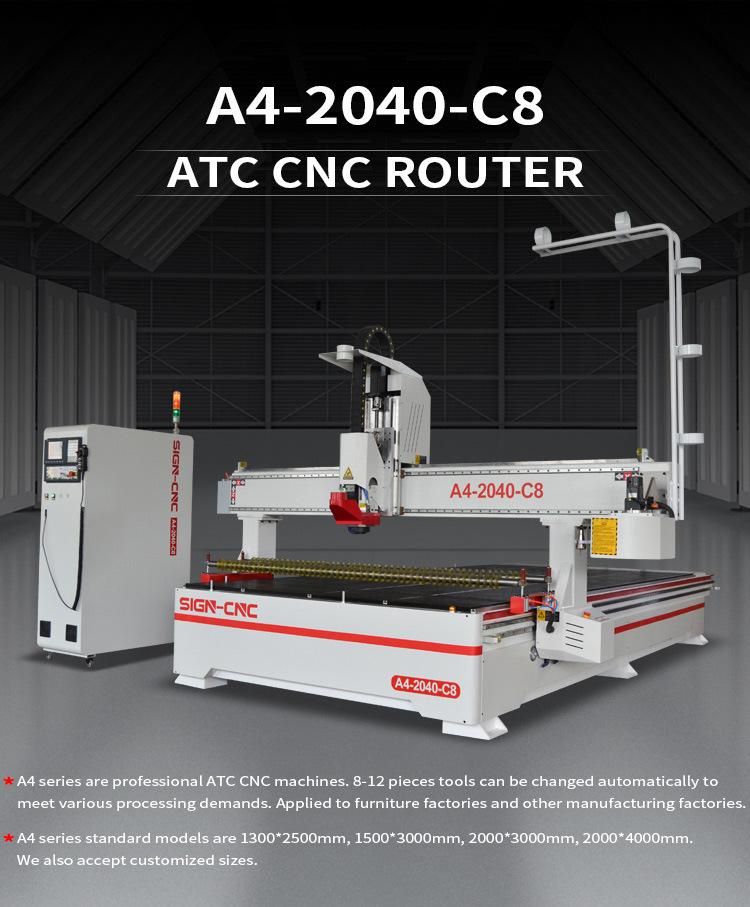

Model	SIGN-2040
X, Y Working size	2000*4000mm
Z feed Height	300mm
Table Surface	Vacuum table
X, Y Structure	Rack and Pinion Drive, TBI Linear Square Guide Rail
Z Structure	TBI Linear Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Spindle Power	9.0KW HQD ATC spindle
Spindle Speed	0-24000RPM
Drive Motors	Yaskawa servo motor and driver
Working Voltage:	AC220V/50/60Hz
Command Language	G code

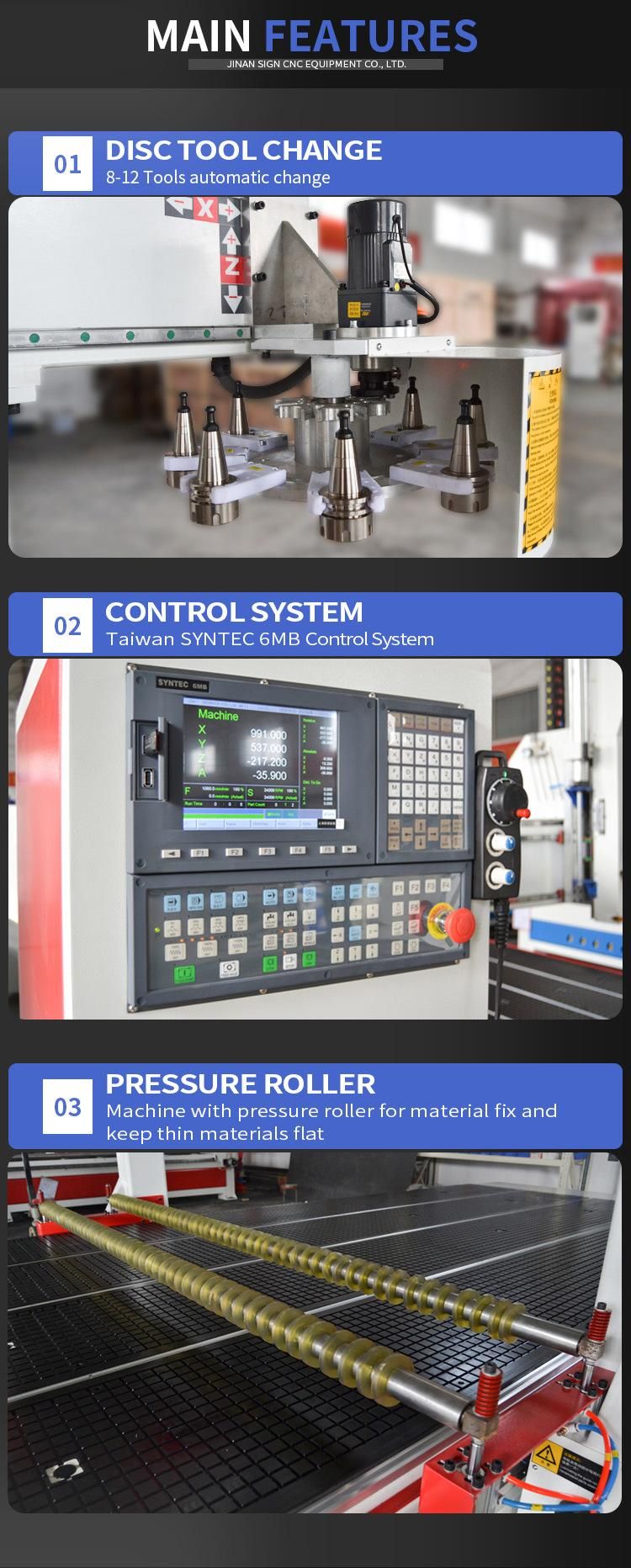

Control System	SYNTEC 6MB
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%
Optional Parts	Rotary system, Panasonic Servo motors
