• Model NO.：H9830
• Precision：High Precision
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Black
• After-sales Service：Video Technical Support
• Specification：1630x1060x1040mm
• Origin：China

Basic Info.

Model NO. H9830 Precision High Precision Certification CE Customized Customized Condition New Color Black After-sales Service Video Technical Support Specification 1630x1060x1040mm Origin China

Product Description

Model	H9930	H9950
Motor Power	3000W	3000W
Material of main working table	Cast iron	Cast iron
Main working table size	1020x686mm	1020x686mm
Extension table size	305x686mm (Without wooden extension wing)	813x686mm (Without wooden extension wing)
Standard saw blade	254x15.875x2.8mm 40 teeth	254x15.875x2.8mm 40 teeth
DADO blade(optional)	203x15.875mm	203x15.875mm
Max DADO slot	20.6mm	20.6mm
Blade speed	3550RPM	3550RPM
Blade tilt	Left 45°	Left 45°
Max cutting thickness90°/45°	80/55mm	80/55mm
Suspension lifting structure	dovetailed	dovetailed
Max.rip cutting right of blade	762mm	1270mm
Max.rip cutting left of blade	305mm	305mm
Table height	875mm	875mm
Inlet diameter	100mm	100mm
Machine size	1630x1060x1040mm	2138x1060x1040mm
N.W/G.W.	Main body:189/237KG Rail:17/23KG	Main body:196/244KG Rail:27/36KG
Packing size	Main body:950x855x1100mm Rail:1680x140x150mm	Main body:950x855x1100mm Rail:2230x170x160mm

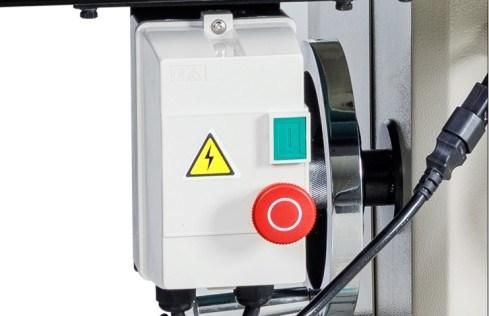

NHD Safety electromagnetic switch	Taiwan NHD safety electromagnetic switch, with thermal overload protection, to prevent the motor from overheating and burning out.

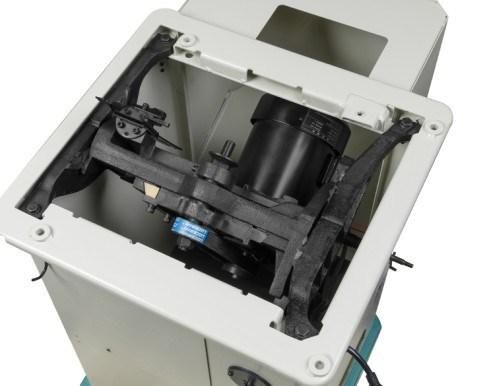

Suspension system	The suspension system is hung on the box body, which is convenient for maintenance, and the worktable is not deformed after long-term use.

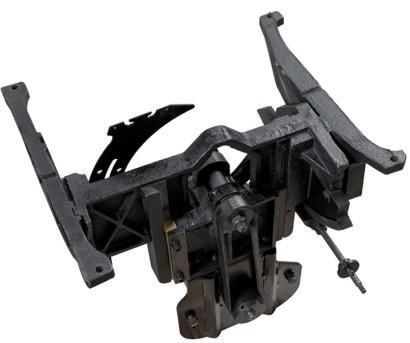

Dovetail lifting structure	Compared with the traditional worm lifting structure, the dovetail lifting structure is more solid, more precise and more stable.

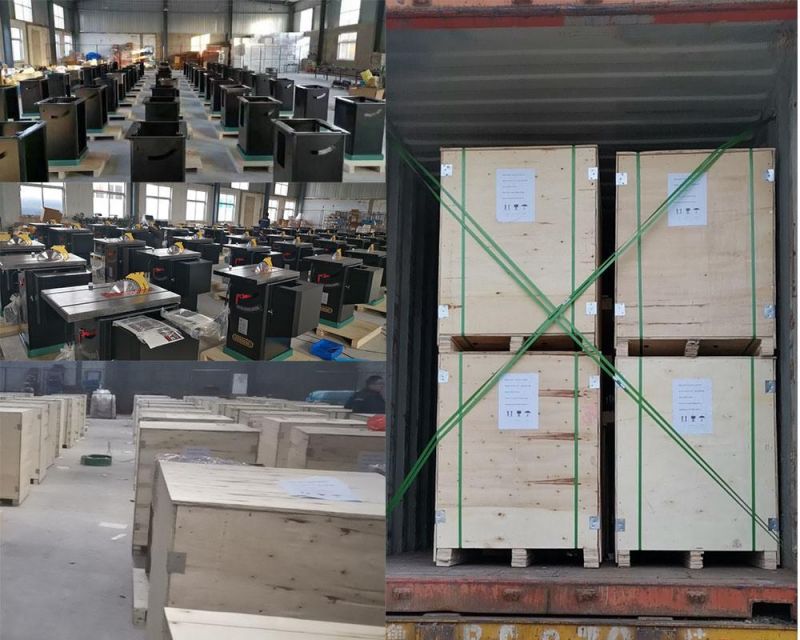

Packaging and loading

Company introduction
1) 16 years experience in Chinese woodworking machinery market, we know the developing history, main manufacturers in each city, and international demands for Chinese machinery.
2)10 years exportation experience, have customers in more than 70 countries.
3) Our engineer with +20 years experience, familiar with woodworking machinery production, installation, operation, maintenance.
4) To service our customer, we have a team not only a sales person, we have purchase department, engineer department, operation department, and aftersales service team (consist with our factory engineers).
5) And we are Gold Plus & Verified supplier in Alibaba.
6) We can realize Multi Products (machinery and spare parts) Purchase, Factory Testing, Products Testing, Batch Delivery and Aftersales Service etc., to save your time and money.
