• Model NO.：ZSF-60DL
• Panel Thinkness：10-60mm
• Min.length panel：150mm
• Min.width panel：60mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• Panel Thickness：10-60mm
• Enging Thickness：0.4-3mm
• Min.Width of Panel：≥60mm   ≥150mm
• Max.Size of Tape Higher Than Panel：2mm
• Transport Package：Wooden Case, as Customers′ Request
• Specification：2450kgs
• Trademark：Mars
• Origin：China
• HS Code：84659100
• Production Capacity：300sets,Month

Basic Info.

Model NO. ZSF-60DL Panel Thinkness 10-60mm Min.length panel 150mm Min.width panel 60mm Manufacturing Principles Glue Tank Underneath Customized Customized Panel Thickness 10-60mm Enging Thickness 0.4-3mm Min.Width of Panel ≥60mm   ≥150mm Max.Size of Tape Higher Than Panel 2mm Transport Package Wooden Case/ as Customers′ Request Specification 2450kgs Trademark Mars Origin China HS Code 84659100 Production Capacity 300sets/Month

Product Description

Automatic Wood Edge Banding Machine/Automatic Glue Bonding Machine

Keywords: 15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                 Three Brands: Mars, Golden Eagle, Boiro
                 Technicist who go abroad to offer after-sale service




Technical Parameters:


Panel thickness	10-60mm
Enging thickness	0.4-3mm
Min.Width of panel	≥60mm   ≥150mm
Min. Length of panel	≥300mm  ≥150mm
Max.size of tape higher than panel(each side )	2mm
Panel feeding speed	15-23 M/min(variable speed)
Pneumatic power	0.6 Mpa
Power	380V 50Hz Can be customzied
Panel Thinkness	10-60mm
Voltage	380V/50Hz 3phase Can Be Customized
Total Power	12.5kw
Overall dimensions	4480*910*1540 mm
Weight	1600kg

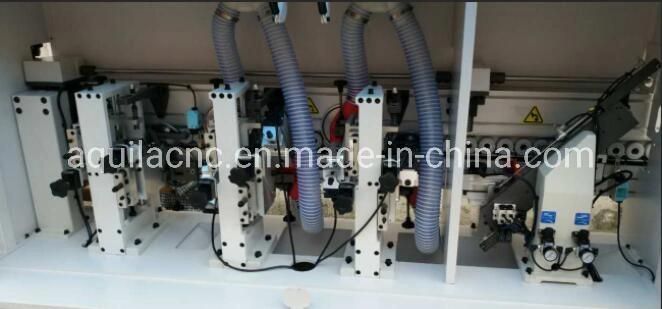

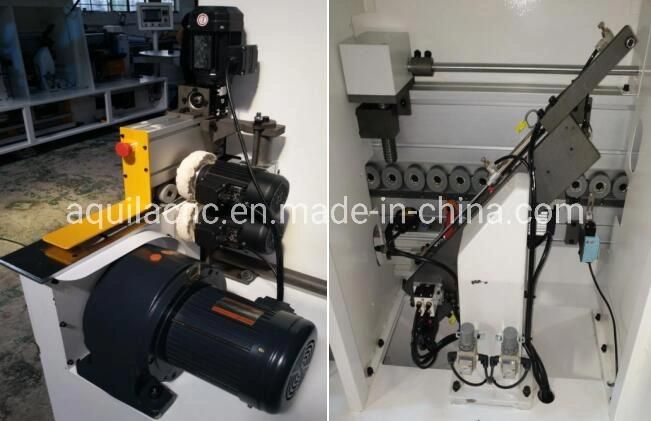

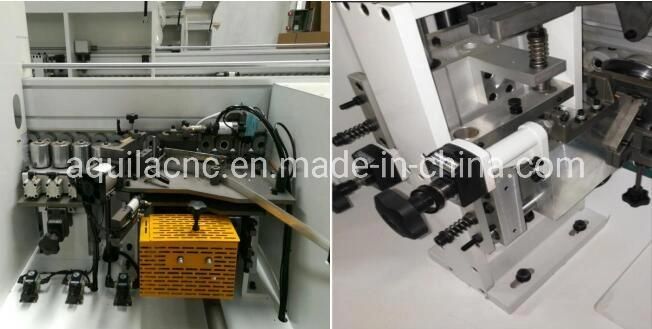

Main Parts





Application Scope

Widely used in panel furniture,chest cabinet,office furniture,customized furniture,wooden door, decoration, etc.
