• Model NO.：M200
• Specification：1300*2500*300mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

BasicX/Y/Z Axis Working Area1230*2450*230mmWorking TableWhole line frame structure, firm and not deformation, vacuum adsorption table plus automatic positioningTable StructureDouble vacuum chamber absorption tableBody StructureHeavy-duty thicken steel structure w/ temperingMainControl SystemTaiwan Syntec 6MB control systemDrive SystemXYZ Japan Yaskawa servo motor drive, Z-axis with brakeSpindle Motor Power9KW air cooling spindle; 0 ~ 24000 rpm/min






OthersTool MagazineCarousel, 8pcsLubrication SystemAutomaticTransmissionXY and Z axis are all ball screwGuide RailTaiwan PMI/Hiwin 25mm rectangular linear railPositioning cylinder6pcsLimit switchJapan OmronBeamReinforced steel beamWorking Accuracy±0.02mmRe-positioning Accuracy±0.05mmDictate FormatG-Code / HPGLWorking VoltageAC380V/ 3PH/ 50HZSupport SoftwareProfessional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense)

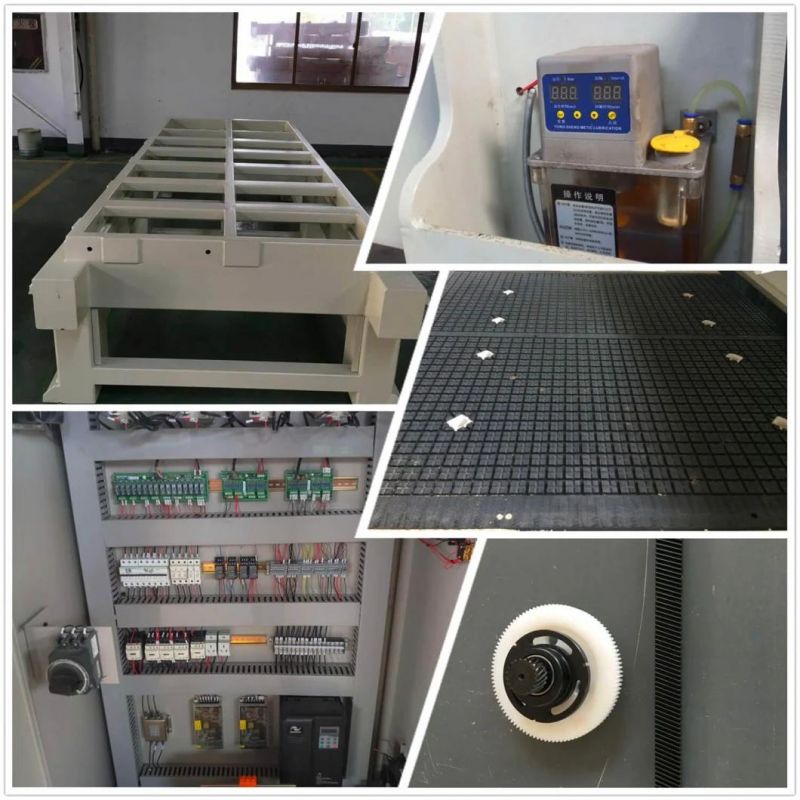

Accessories:


Performance Features:

1	Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver
2	Carousel type tool magazines support automatic tool changer, improve processing efficiency
3	9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics
4	Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation
5	Taiwan Syntec control system, easy to operation,fully support automatic production
6	Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area
7	All 3 axis ball screw drive can achieve much higher precision.

Samples:

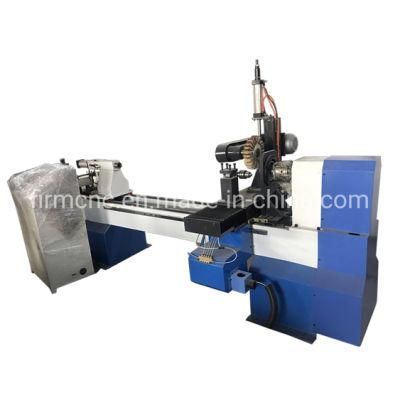

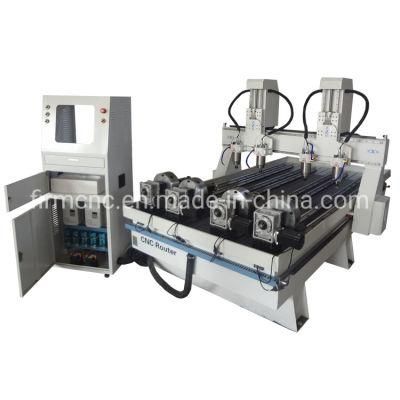

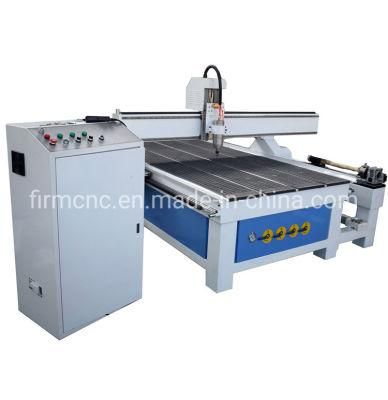

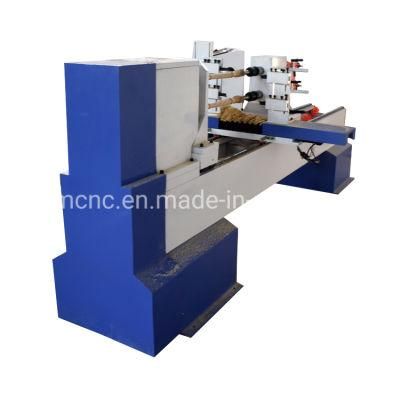

Similar Products:
