• Model NO.：WZLH680
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Provided
• Capacity(T/H)：2-3
• Main Power(Kw)：185
• Pellet Size(mm)：6-12
• Transport Package：Iron Pallet and Soft Guard
• Specification：CE, ISO9001, SGS
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：8 Sets,Month

Basic Info.

Model NO. WZLH680 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity(T/H) 2-3 Main Power(Kw) 185 Pellet Size(mm) 6-12 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 8 Sets/Month

Product Description

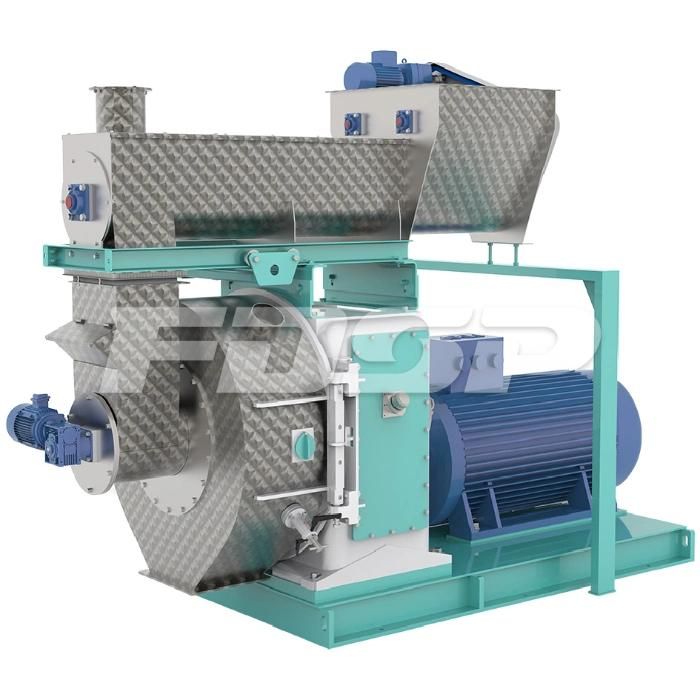

Sawdust Making Pellet Machine for Fuel ApplicationFeatures:
1. The main drive adopts high-precision gear rotation, the efficiency is increased by about 15% compared with the belt drive type, and the ring die adopts the quick release hoop type;

2. The high-quality imported bearings and oil seals are used in the transmission part of the whole machine to ensure high efficiency, stability and low noise.

3. The international advanced level compensation type serpentine spring coupling has the characteristics of novel structure, compactness, safety and low failure.

4. Strengthen the working strength of the main working parts from the materials, heat treatment and other processes to achieve the granulation requirements of biomass particles;

5. There are a number of innovative designs on the ring die, which mainly improve the problems of ring mold anti-cracking, increased production output, and increased total output;

6. Add non-stop refueling system, add air-cooling system, high efficiency, low energy consumption, stable operation, stable and reliable granulation quality;

7. Configure overload protection device to improve equipment life;

8. The door cover is made of stainless steel for durability.

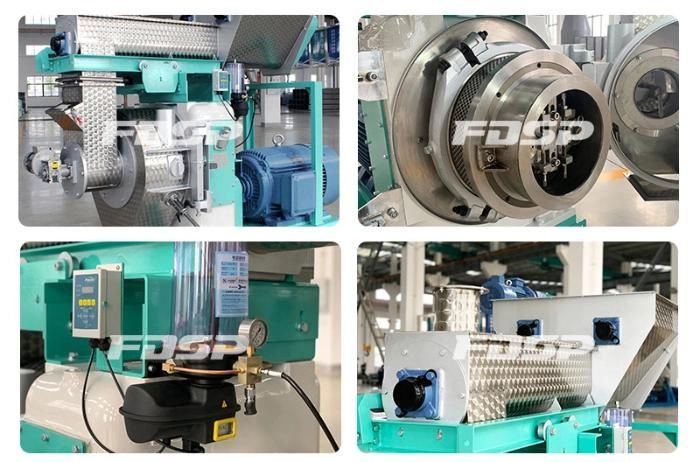

Product Show





Performance Parameter

Model	WZLH420	WZLH508	WZLH680
Ring die inner diameter (mm)	420	500	688
Ring die working width(mm)	90	100	110
Ring die linear speed (m/s)	3.16	3.78	3.54
Number of clamp	3 pcs	3 pcs	8 pcs
Number of roller	2 pcs	2 pcs	2 pcs
Number of cutter	1 pcs	1 pcs	1 pcs
Motor power	90+2.2+0.75	90+2.2+1.5	185+3.0+1.5
Motor rotation speed	750	750	595
Ring die hole   diameter(mm)	6/8/10	6/8/10	6/8/10

On basis of absorbed advanced technology for biomass pelleting from abroad, we are leading company to develop independently turn-key equipment for biomass pelleting for agricultural crops in China. Meanwhile it can be pelleted for waste of forestry, too. We can customize and design turn-key project for all kinds of materials for customers according to their various request, materials, and site.

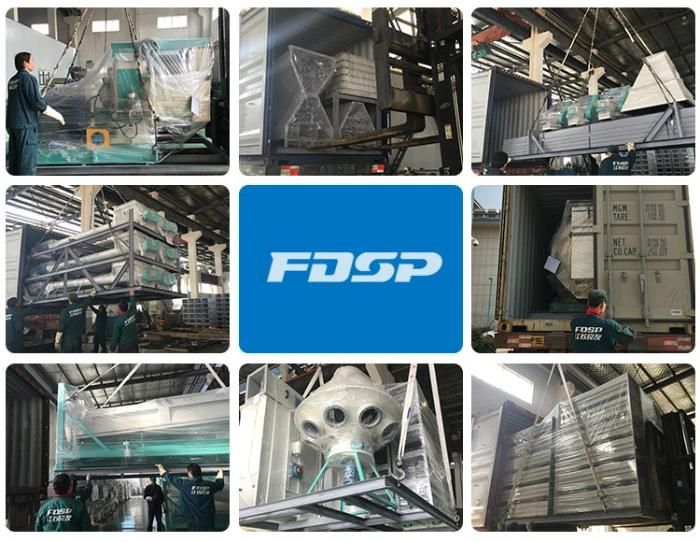

Packing & Shipping

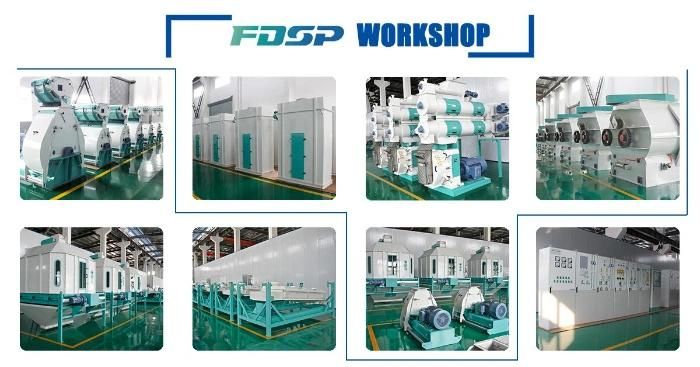

FDSP Workshop

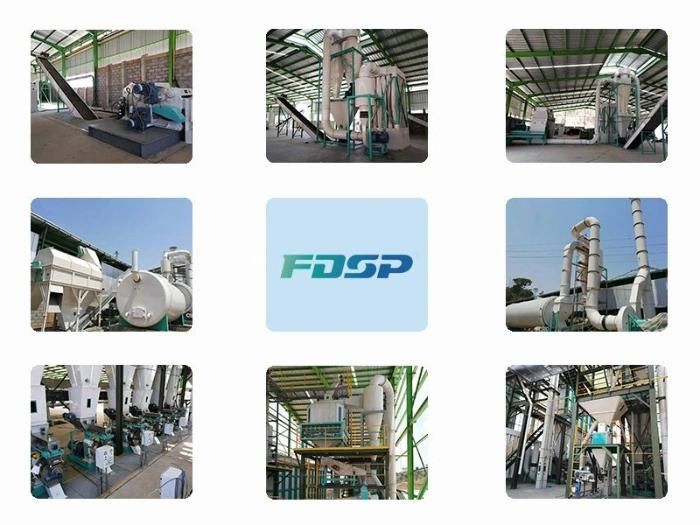

Worldwide Project

FAQ
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!
