• Model NO.：FDSP series
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：24hours
• Main Motor：Siemens China
• Bearing：Famous Brand
• Transport Package：Pallet
• Specification：CE, ISO, SGS
• Trademark：Liangyou
• Origin：China
• HS Code：8436100000
• Production Capacity：8-65,5-35

Model

MZLH420

MZLH680

Capacity(t/h)

1-1.5

2-2.5

Main Motor Power(kw)

75/90

160/185

Feeder Power(kw)

2.2

4

Inner Diameter of Ring Die(mm)

420

680

Pellet Diameter(mm)

6-10

6-10

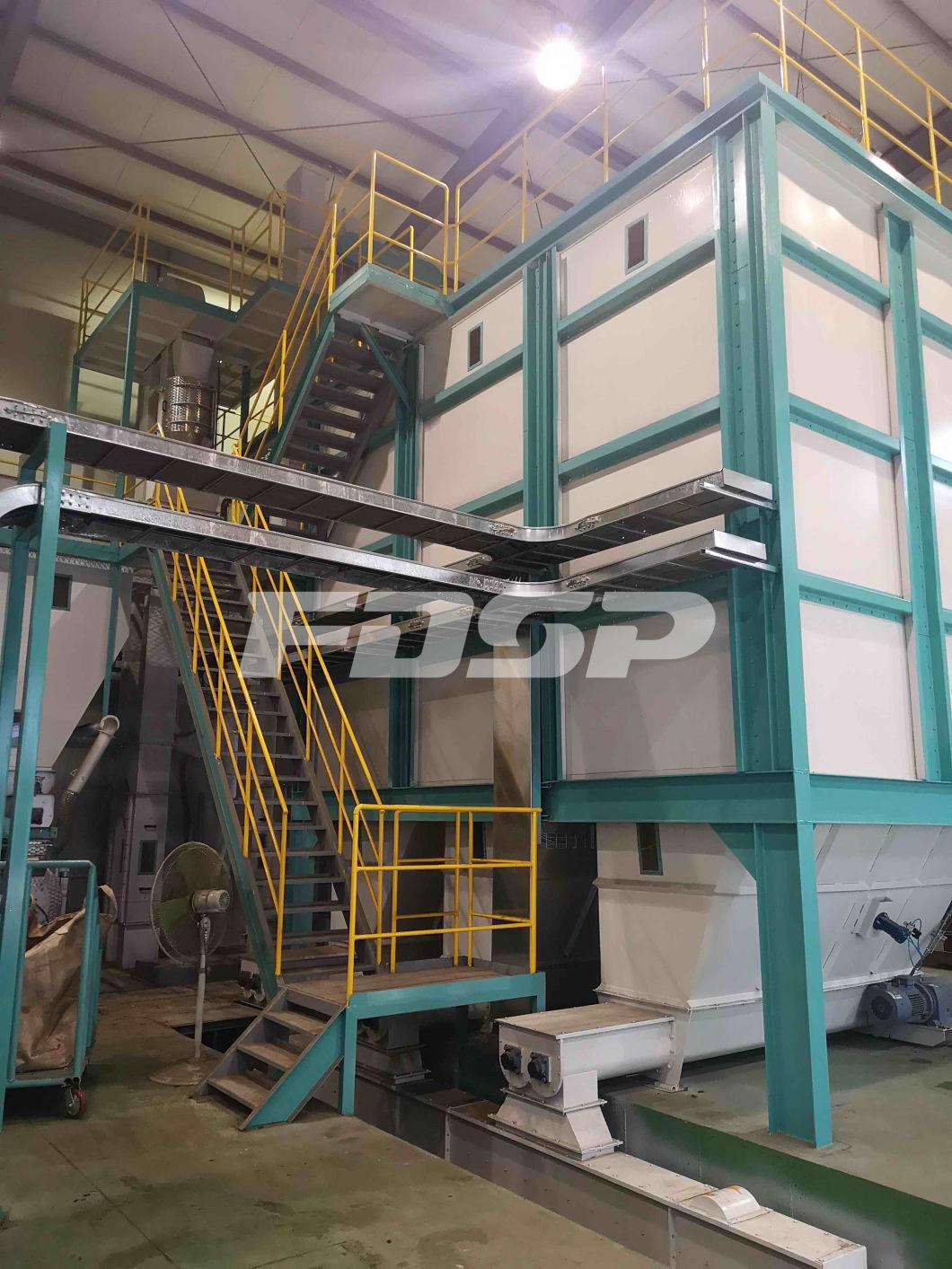

Project case: Complete South Korea 12 t/h sludge wood sawdust pellet production line show

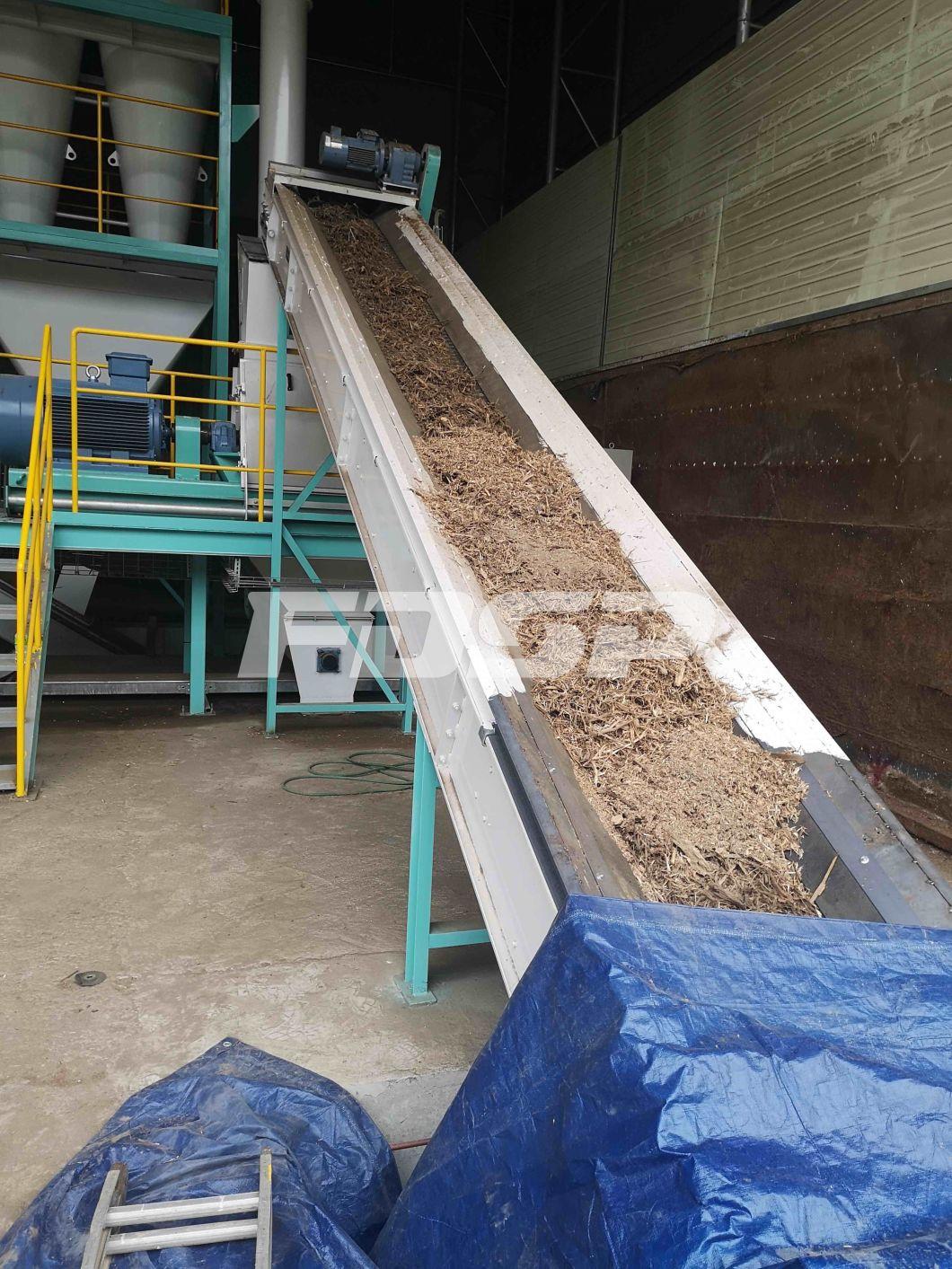

1.Grinding process

The pulverized raw material is wood chips and the hammer mill is used to pulverize the wood chips into sawdust with the auxiliary equipment such as fan, cyclone as well as pulse dust collector .The output is 6-8 TPH .The wind net dust removal system can effectively control the workshop dust pollution.

2.Storage process

The customer stores the municipal sludge mixed with sawdust in the buffer tank which can effectively reduce pollution and improve the automation of the production line.

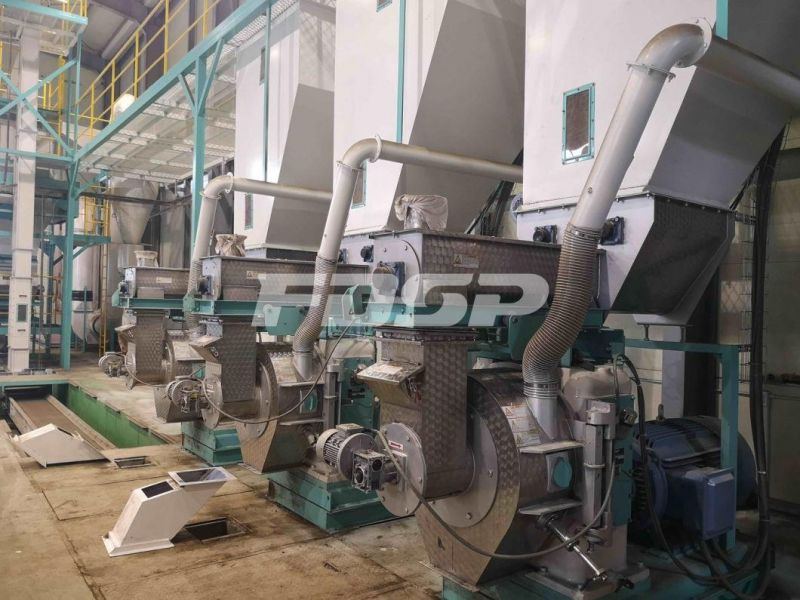

3.Granulation process

The customer's raw material is a mixture of municipal sludge and wood chips. At present, there are 3 granulators production line, 3 granulators are reserved.The total output is 12tph and the output of single pellet mill is 2tph.The output is high. The granulation workshop is designed as the clean room. All conveying equipment and its import and export are closed structures, which effectively reduce the dust pollution in the workshop.

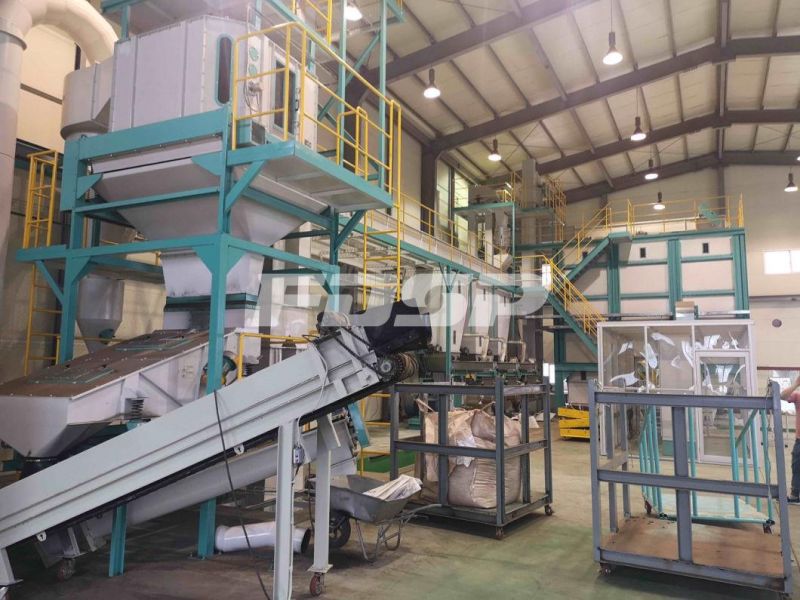

4.Cooling  and screening process

The granulator discharge temperature is about 80-90 ° C, and the cooler can effectively reduce the particle temperature to 5 ° C not higher than room temperature. The vibrating screen can effectively clean the powder and scrap in the finished granules so that the finished granules are more beautiful.

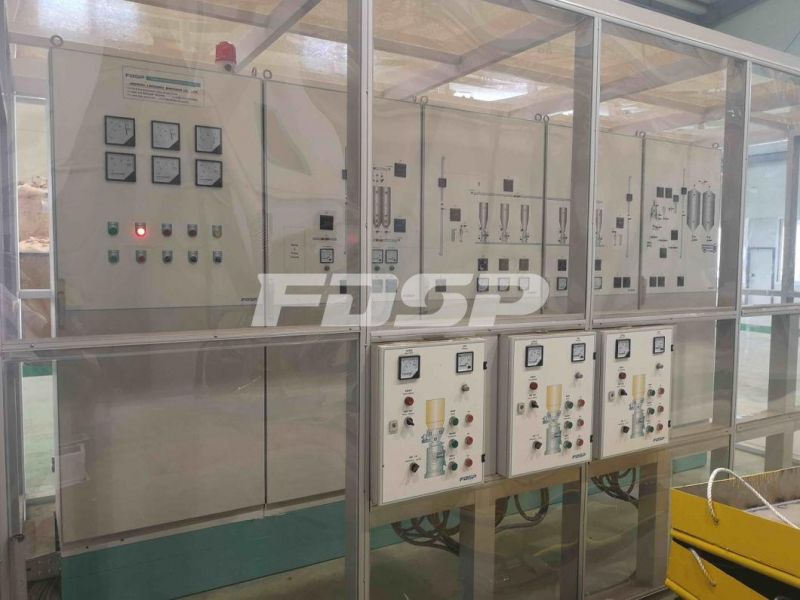

5. Electric control system

Company View

FDSP has been devoting to feed machinery industry since its establishment in 2003. It covers an area of 30000 square meters, locating in the zhongguancun science&technology industrial park in Liyang City, Jiangu Province, PRC.

FDSP is focusing on profession, keeping innovation and exploration. The core concept in FDSP Company can be generalized into five words: Quality, Sincerity, Perfection, Exploration & Innovation.

Customer visits

FDSP has exported Feed machinery to 30 countries such as Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, etc. We welcome customers from all around the world visiting and communication.
