• Model NO.：ZBJ
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Power：15kw Electric Motor
• Capacity：200kg,H Briquette Making
• Diameter of F Briquette：30,40,50mm
• Machine Weight：700kgs
• Electrical Cabinet：Delixi Electrical Components
• Keyword 5：Briquette Making Machine
• Keyword 1：Biomass Briquette Machine
• Keyword 2：Wood Briquette Machine
• Keyword 3：Sawdust Briquette Machine
• Keyword 4：Screw Briquette Machine
• Transport Package：Wood Carton
• Specification：1780*750*1290 mm
• Trademark：AG
• Origin：Zhengzhou, China
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. ZBJ Warranty 1 Year Customized Customized Condition New Color Multi Color Power 15kw Electric Motor Capacity 200kg/H Briquette Making Diameter of F Briquette 30,40,50mm Machine Weight 700kgs Electrical Cabinet Delixi Electrical Components Keyword 5 Briquette Making Machine Keyword 1 Biomass Briquette Machine Keyword 2 Wood Briquette Machine Keyword 3 Sawdust Briquette Machine Keyword 4 Screw Briquette Machine Transport Package Wood Carton Specification 1780*750*1290 mm Trademark AG Origin Zhengzhou, China Production Capacity 50 Sets/Month

Product Description

Screw Biomass Briquette Machine for Wood Sawdust, Rice Husk...

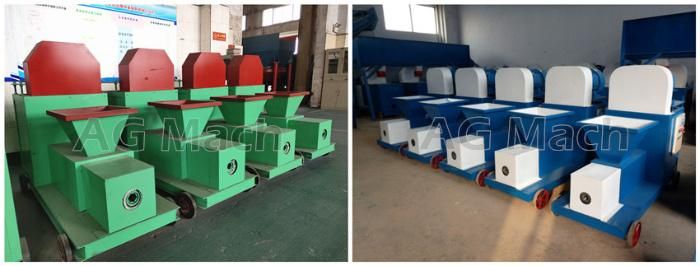

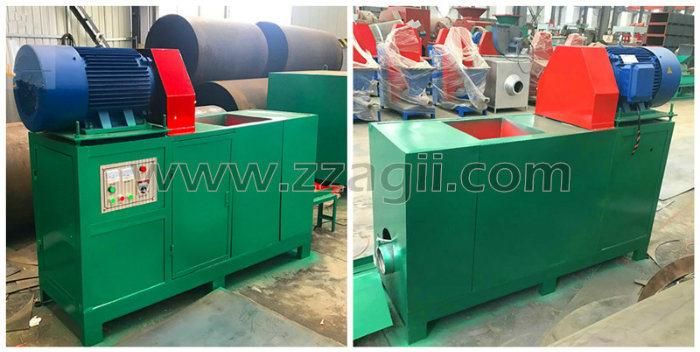

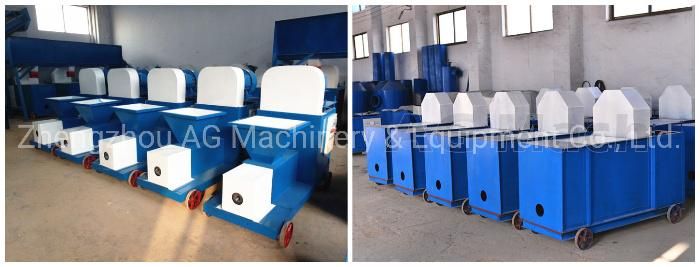

Introduction of Wood Briquette Press:

Wood Briquette Machine can process wood wastes materials into charcoal efficiently, which is one kind of green biomass fuel. It is good substitute of good raw wood or excellent coal, smokelss, long burning time.

The briquettes can be used for warming, heating, drying fuel, grilling, etc.
Biomass Briquette Press can be driven by electric motor or diesel engine.

Specification of Biomass Briquette Machine:

Model	Capacity (kg/h)	Motor (kw)	Diameter of Briquettes (mm)	Dimension (m)	Weight (kg)
ZBJ-50 (A)	250~300	15	Ø 30,40,50	1.6*0.65*1.4	800
ZBJ-50 (B)	300~320	18.5	Ø 30,40,50	1.7*0.65*1.4	900
ZBJ-50 (C)	320~350	22	Ø 30,40,50	1.9*0.7*1.45	950

Working Principle:

The raw materials is compressed under high tempreture and pressure by the screw extruding. With the intrinsic attributes of the wood materials, under high pressure, wood element in wood materials becomes plastic and makes the fine fiber combined, and then stick solid fuel is formed through the moulding tube. The matural lignin content in the biomass liberated under high tempreture serves as glue in briquetting process, binding wood materials together, so no need any adhensive.

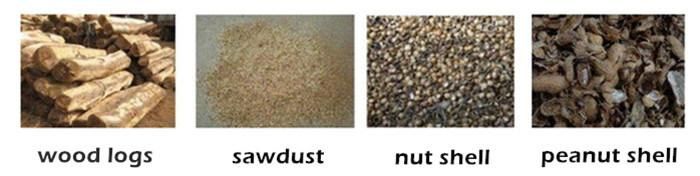

Raw material for making briquettes:

Any types of Agro-forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood chips, rice husk, coffee husk, coir pith, jute sticks, groundnut shells, Bamboo, wood, straw dust, Mustard stalk and cotton stalks ,nutshell, coconut shell, etc

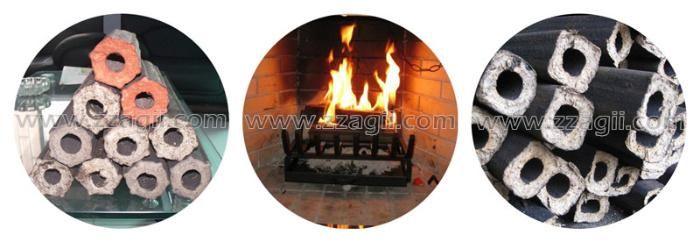

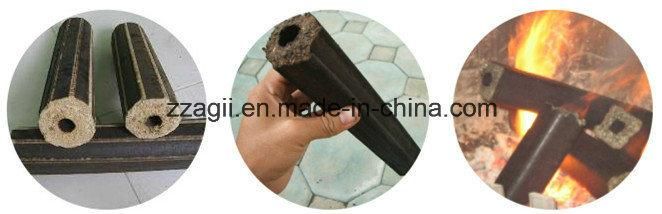

Wood Briquettes:

1)    Biofuel briquette is 50mm,80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm inner-hole.
2)    The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge
3)    The available diameter could be: 50mm,55mm.60mm,65mm,70mm,80mm and so on
4)    The available length could be: 20cm,30cm, 40cm, 50cm
5)    Final Briquette : Specific gravity: 1300-1900kg/m   Calorific value: 4500-5000kcal/kg



Application:

As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used as a substitute of any fuel in following fields :

Boilers:
It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries, Vanaspati units, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries..

Furnace & Foundries:
It can be used for metal heating & melting (where melting point is less than 1000d/cel.)

Brick Kilns:
It is the total, substitute of steam coal.

Residential & Commercial Heating:
For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.

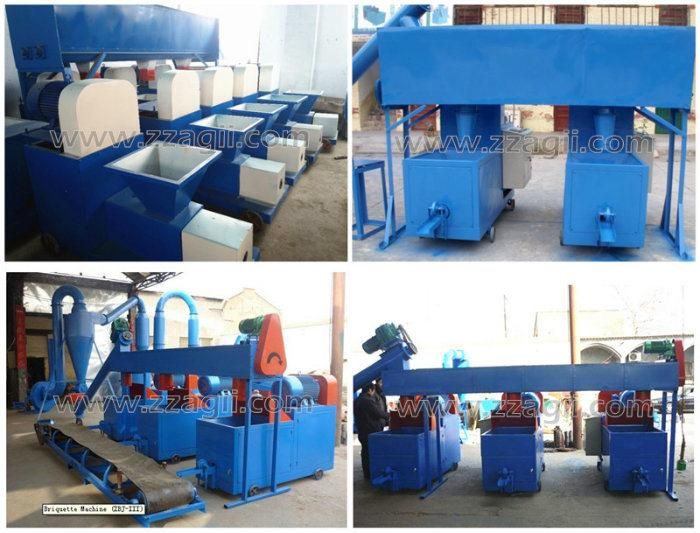

Biomass Wood Sawdust Briquette Making Line:
