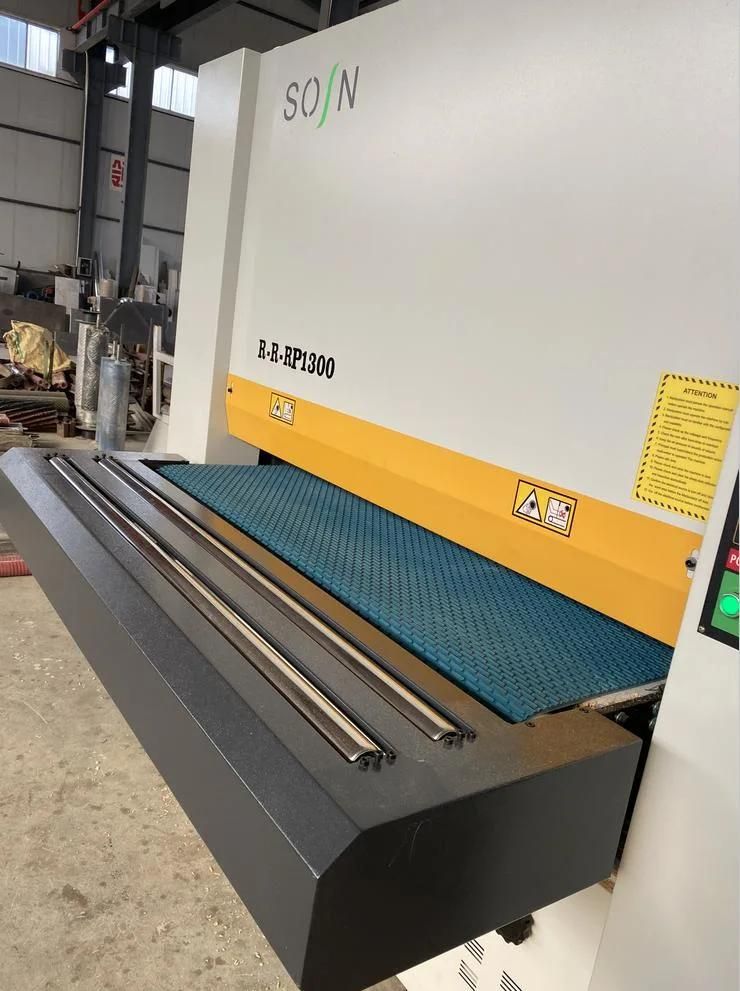

Heavy Duty Woodworking Wide Belt Sander Segmented Pad Sanding Machine
QINGDAO SOSN MACHINERY CO., LTD.- Warranty:12months
- Type:Belt Wood Sander
- Automatic Grade:Automatic
- Variable Speed:Variable Speed
- Certification:CE, ISO
- Customized:Customized
Base Info
- Model NO.:R-RP1300
- Condition:New
- Color:Customized
- After-sales Service:24 Hours on The Line
- Name:Heavy Duty Wide Belt Sanding Machine
- Max. Working Width:1300mm
- Min. Working Length:500 mm
- Working Thickness:2.5-80 mm
- Belt Size:1330*2200 mm
- Total Power:57kw
- Products:Plywood,MDF ,Door
- Weight:3500kg
- Transport Package:Stretch Film
- Specification:2100*2600*2150
- Trademark:SOSN
- Origin:China
- Production Capacity:200 Sets,Month
Description
Model
R-RP1000
Max working width
1000mm
min working length
500mm
working thickness
3-110mm
Feeding speed
6-30m/min
Total power
35.37kw
First sand roller motor power
18.5kw
Second sand roller motor power
15kw
Conveyor motor power
1.5kw
Lifting motor power
0.37kw
First steel sand roller diameter
190mm
Second sand roller diameter
190mm
Abrasive belt size
1020x2000mm
Working pressure
0.6Mpa
Dust collection
8000m³/h
Outline dimension
1900x1600x2100mm
Weight
2000kg
3. Product feature and application :
Application :
Wide belt sander machine or calibrating machine is used for sanding the surface of fine wood, multi-layer board, chipboard, particleboard, panel furniture, bamboo floor, wood door and window, handcraft, glass steel, wpc products and solid wood, fine sanding of panel surface or sanding after paint.
Feature:
1. Pre and fine sanding in one working process of the wide belt sander machine
2. Control Panel of our wide belt sander machine can adjust the aggregates, and the feed speed and sanding depth can be carried out quickly, simply and accurately all from the control panel.
A particular highlight is the digital grain compensation which does not require the machine to be opened.
The sanding belt grid and sand thickness of the wide belt sander machine can be set on the control panel.
3.Wide belt sander Powerful motors ensure perfect sanding results.
The constant power transmission makes sure the high precision of the sanding effect.
4. Product details :

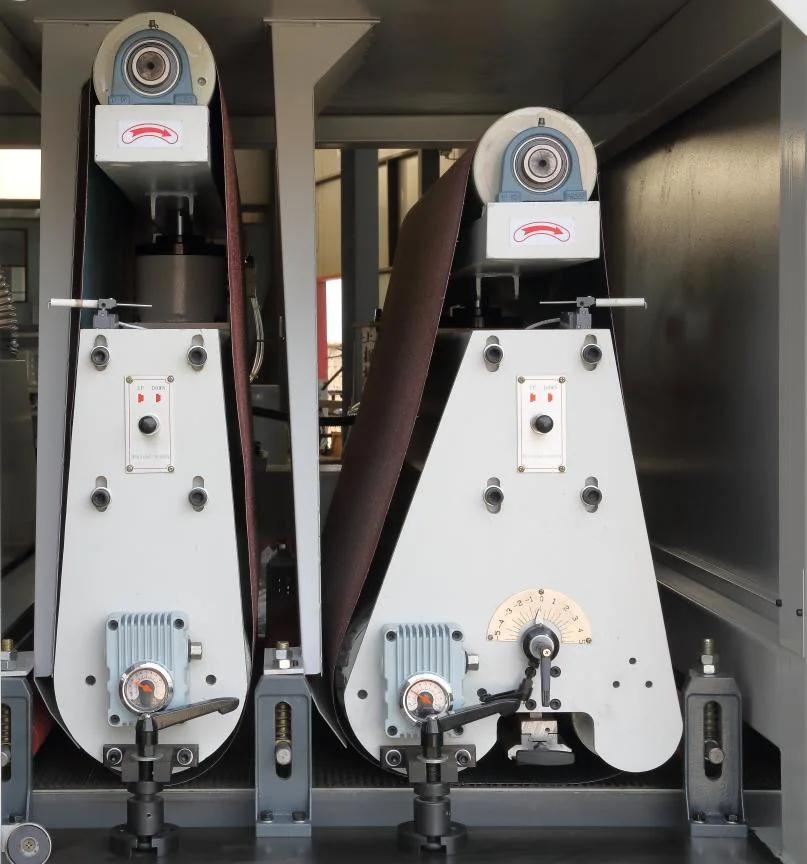

1.R-RP sanding unit:
1st roller is steel sanding roller is used to calibrating thickness, removing amount up to 1mm.
2nd roller is combined with rubber or steel roller which based on customer work need, and with sanding pad for fine finishing.
This sanding unit can not be adjusted the height.
2.Electric device of wide belt sander machine
It is safe and stability to operate with the stable inner circuit, and the clear electrical wires.
3.Control panel
With clear button for different function, the machine is easy to operate.
4.Conveyor belt of wide belt sander machine
The five-layer laminated material conveyor belt is resistant to high temperatures and has a long service life(vacuum table optional).
5. Product qualification:
Laser cutting process

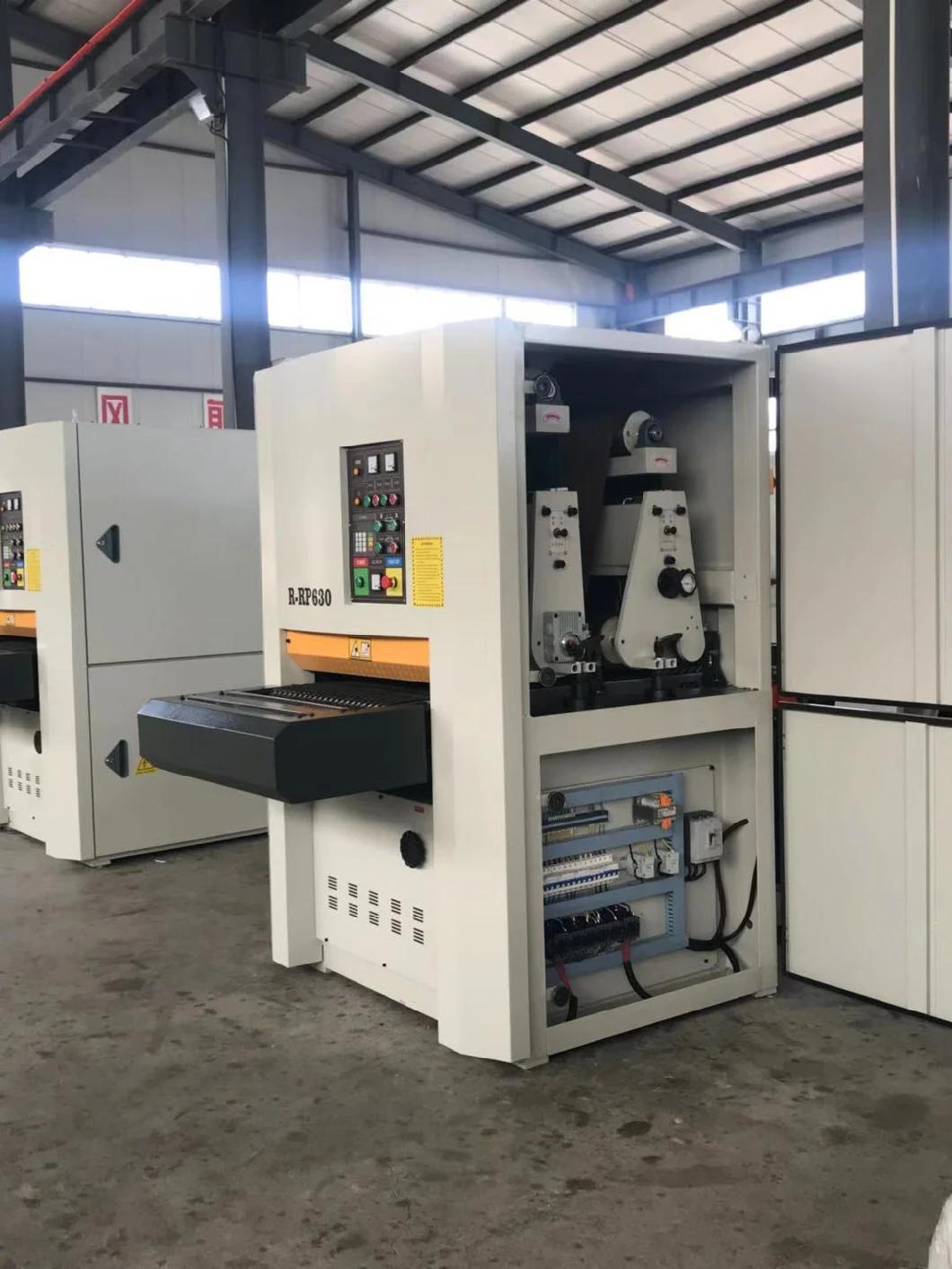

Machine testing

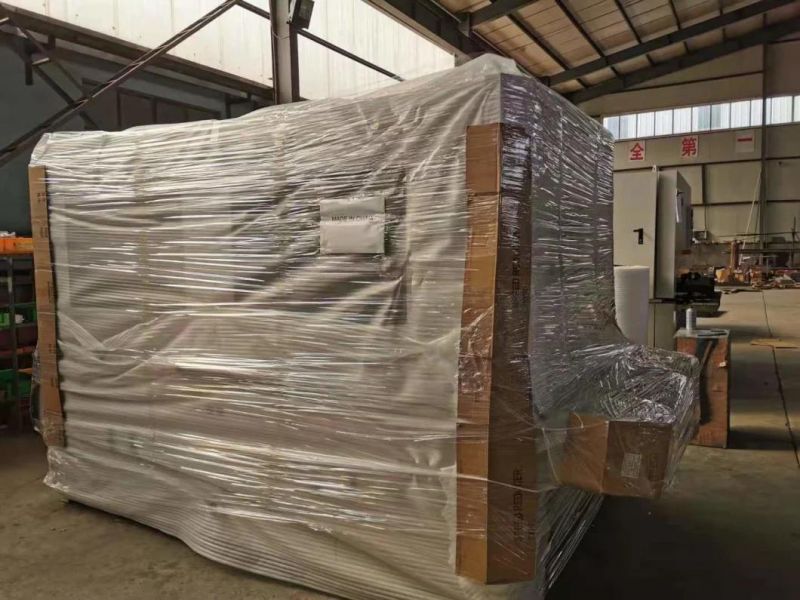

6.Strong export packing
Shipping
Our service:
machine guarantees warranty for one year
24 hours technical service by video or calling or email
Engineer is available to serve overseas, also welcome to our factory for learning machines.
Expanding your production or upgrade machines in future, professional solution will be provided.

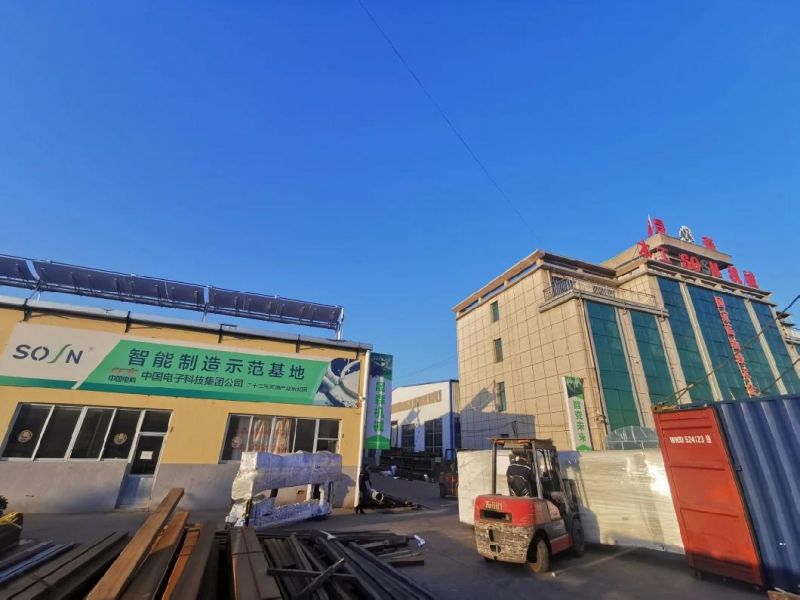

Welcome to our factory for checking our wide belt sander machine
