• Model NO.：MC1100
• Controlling Mode：Artificial
• Power Source：Electric
• Processing Accessory：Chuck CNC Lathe
• Certification：CE, ISO
• Dscription：14"X43" Wood Lathe
• Motor(W)：550,750
• No of Speed：Variable
• Spinde Speed(Rpm) 50 Hz：500~2000
• Spinde Speed(Rpm) 60 Hz：600~2400
• Transport Package：Carton
• Specification：CE ISO
• Trademark：G&G
• Origin：China
• HS Code：84659600
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. MC1100 Controlling Mode Artificial Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE, ISO Dscription 14"X43" Wood Lathe Motor(W) 550/750 No of Speed Variable Spinde Speed(Rpm) 50 Hz 500~2000 Spinde Speed(Rpm) 60 Hz 600~2400 Transport Package Carton Specification CE ISO Trademark G&G Origin China HS Code 84659600 Production Capacity 1000 Sets/Month

Product Description

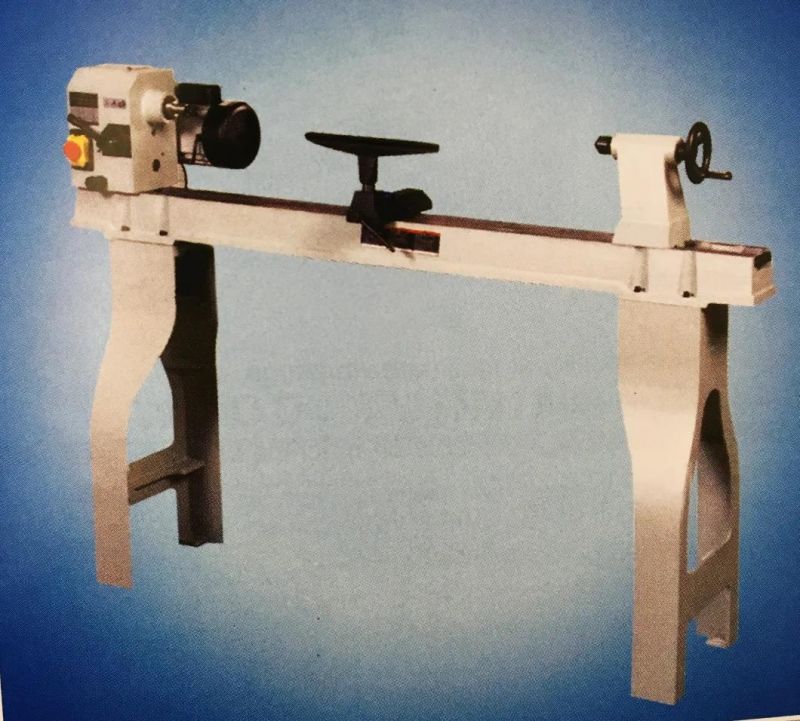

Wood lathe carving machine MC1100

Model	MC1100
Dscription	14"x43" wood lathe
Motor(W)	550/750
No of speed	Variable
Spinde speed(rpm) 50 Hz	500~2000
Spinde speed(rpm) 60 Hz	600~2400
Swing over bed	14"
Distance between centers	43"
Drive spindle	1"8RH thread or other
Head and tailstock taper	#2 Morse or other
Face plate	6"
Tool rest	12"
N.G.weight(kgs)	92/97
Packing size(mm)	1620x340x430
Units/20' comtaier	110

The lathe MC 1100 can be fitted with two cast iron stand, which will appeal more to the professional or commiated hobody turner,who is loooking for a more rugged and powerfulmachine. This cast iron stand also can be fitted to our model MC900 turning lathe. Notable features of this excellent lathe are:
1)The solid cast iron head which can both slide to and from along the bed lathe most convenient position and rotate to allow best assess for bowl turning.

2)Mechanical variable speed which provides a choice of ten speeds

3)Heavy duty tool rest support.

4)300 mm cast iron tool height adjustable tool rest with bowl turning extension

5)Comes complete with four prong drive center, revolving tailstock center. 150mm face plate,center knock-out bar. face plate spanner.

Pcking size-1630x360x430mm(body)
                     810x380x250mm(stand)

N.G.weight --83/88kg(body)
                     45/48kg(stand)
Units/20'      container-80pcs
