• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Provided
• Capacity：0.8-1.2 T,H
• Main Power：75,90kw
• Pellet Size：6-10mm
• Ring Die Inner Diameter：420mm
• Ring Die Working Width：90mm
• Ring Die Linear Speed：3.16m,S
• Transport Package：Iron Pallet and Soft Guard
• Specification：1000 KG
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：13 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity 0.8-1.2 T/H Main Power 75/90kw Pellet Size 6-10mm Ring Die Inner Diameter 420mm Ring Die Working Width 90mm Ring Die Linear Speed 3.16m/S Transport Package Iron Pallet and Soft Guard Specification 1000 KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 13 Sets/Month

Product Description

CE Certificated Factory Supply Low Price Wood Waste Pellet Mill Machine
Features:

1.It is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, Chrysanthemum, palm leaf and so on;

2. The feeder's especial structure
Makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;

3. Feeder, conditioner and chute
Are made of stainless steel with long service life;

4. It is with magnet and over load protection system, which protects the machine during production;

5. Feeder
Has a variable speed controller to meet different outputs requirements;

6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 15% when compared to a machine with a belt conveyer;

7. The bearing and oil seal in the main drive
Are imported from Japan to ensure highly-efficient, stability and high quality;

8. The alloy steel die
Is with international advanced equipment and techniques, and has long service life, and can make slippery pellets of the highest quality.

9. The Lubrication System
Is made up of the tracing and inspecting system controlled by the microcomputer, auto-lubricating system on time and compelled lubricating system by hand.


Performance Parameter:

Model	WZLH420	WZLH508	WZLH680
Ring die inner diameter (mm)	420	500	688
Ring die working width(mm)	90	100	110
Ring die linear speed (m/s)	3.16	3.78	3.54
Number of clamp	3 pcs	3 pcs	8 pcs
Number of roller	2 pcs	2 pcs	2 pcs
Number of cutter	1 pcs	1 pcs	1 pcs
Motor power	90+2.2+0.75	90+2.2+1.5	185+3.0+1.5
Motor rotation speed	750	750	595
Ring die hole   diameter(mm)	6/8/10	6/8/10	6/8/10

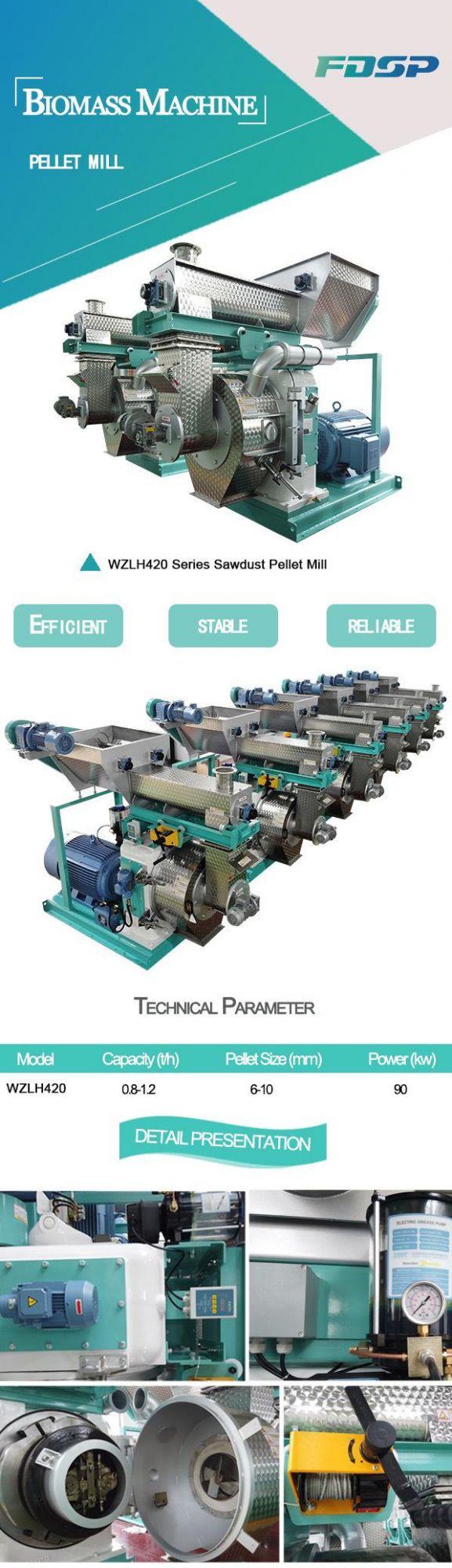

Pictures:


About us:



FAQ:

1.Q:Are you a factory or trading company?
A:We are a factory .

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!
