China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Wood Pellet Mill
  • Voltage:380V
  • Automatic Grade:Automatic
  • Controlling Mode:Artificial
  • Energy Saving:Energy Saving
  • Certification:CE, ISO, SGS

Base Info

  • Model NO.:WZLH420
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Multi Color
  • After-sales Service:Provided
  • Capacity(T/H):0.8-1.2
  • Ring Die Linear Speed (M/S):3.16
  • Main Motor Power(Kw):75,90
  • Pellet Diameter(mm):6-10
  • Number of Cutter:1PCS
  • Feeder Power(Kw):2.2
  • Number of Roller:2PCS
  • Ring Die Working Width(mm):90
  • Number of Clamp:3PCS
  • Ring Die Diameter(mm):420
  • Motor:Siemens (China) Motor or Wannan Motor
  • Transport Package:Iron Pallet and Soft Guard
  • Specification:1500KG
  • Trademark:FDSP
  • Origin:Jiangsu, China (Mainland)
  • HS Code:8479300000
  • Production Capacity:5 Sets,Month

Description

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity(T/H) 0.8-1.2 Ring Die Linear Speed (M/S) 3.16 Main Motor Power(Kw) 75/90 Pellet Diameter(mm) 6-10 Number of Cutter 1PCS Feeder Power(Kw) 2.2 Number of Roller 2PCS Ring Die Working Width(mm) 90 Number of Clamp 3PCS Ring Die Diameter(mm) 420 Motor Siemens (China) Motor or Wannan Motor Transport Package Iron Pallet and Soft Guard Specification 1500KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine
Features:
1. It is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, Chrysanthemum, palm leaf and so on;

2. The feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of  light substances with the density of 0.15-0.65g/cm3;

3. Feeder,conditioner and chute are made of stainless steel with long service life;

4. It is with magnet and over load protection system, which protects the machine during production;

5. It makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;

6. The bearings and oil seals in the main drivers are imported from Japan to ensure highly-efficient,stability and credibility.


Performance Parameter:
ModelWZLH420WZLH508WZLH680
Ring die inner diameter (mm)420500688
Ring die working width(mm)90100110
Ring die linear speed (m/s)3.163.783.54
Number of clamp3 pcs3 pcs8 pcs
Number of roller2 pcs2 pcs2 pcs
Number of cutter1 pcs1 pcs1 pcs
Motor power90+2.2+0.7590+2.2+1.5185+3.0+1.5
Motor rotation speed750750595
Ring die hole   diameter(mm)6/8/106/8/106/8/10

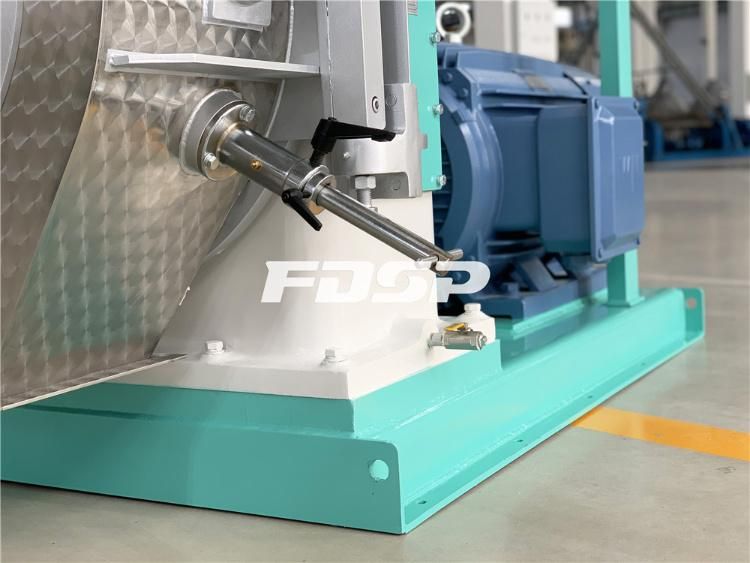

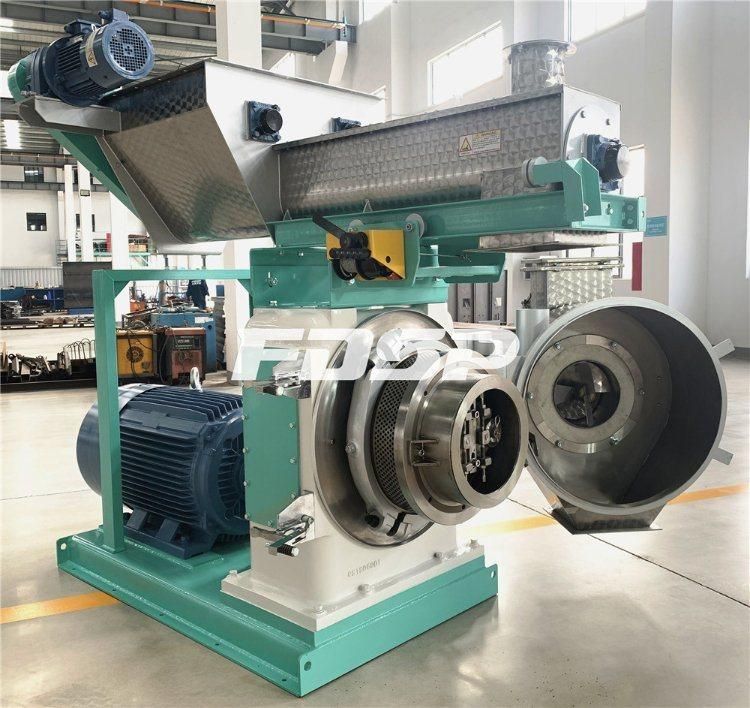

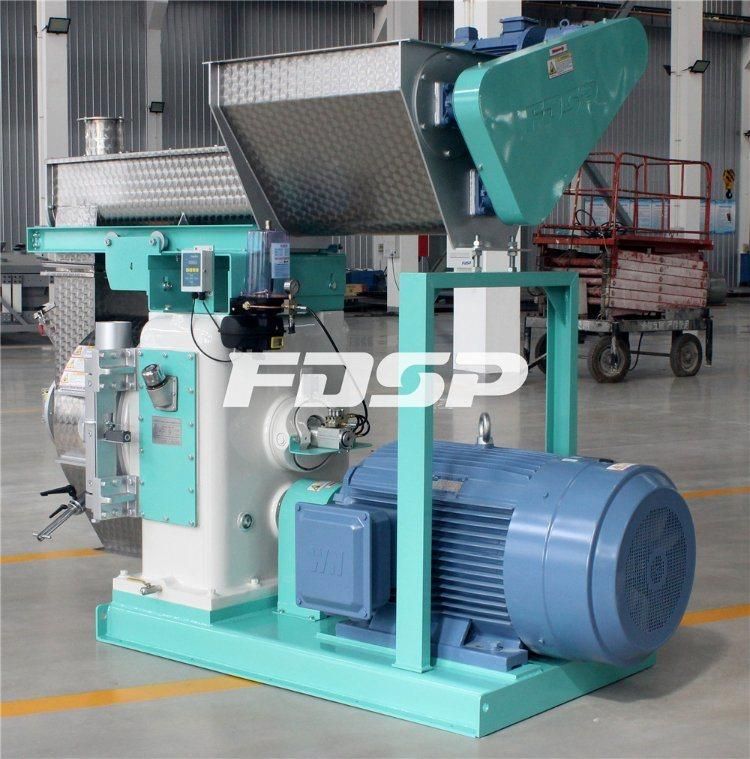

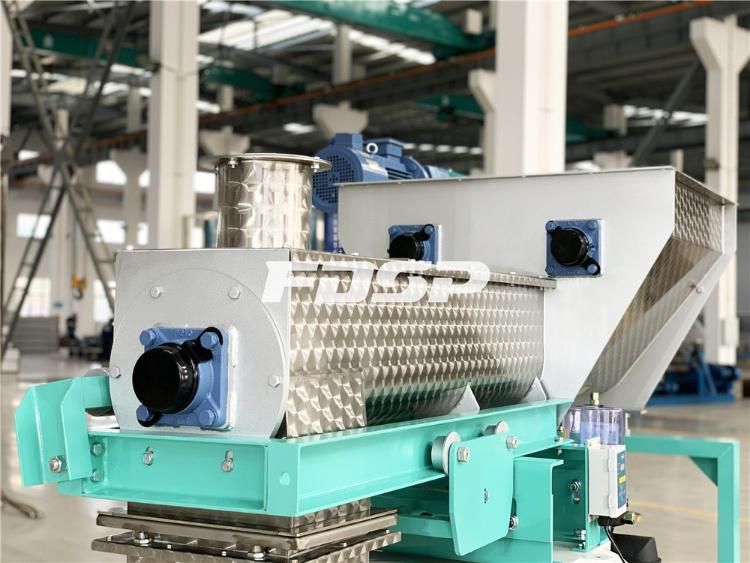

Pictures:
China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine

China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine
China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine
China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine
China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine
China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine


About us:
China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine
China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine
China Factory Light Substance Forced Feeder Ring Die Wood Pellet Machine

FAQ:
1.Q:Are you a factory or trading company?
 A:We are a manufacturing and trading company.


2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.Our company is located in Nanjing City,Jiangsu Province,China.You can fly to Shanghai
airport directly.All our clients, from home or abroad, are warmly welcome to visit us!


3.Q:How does your factory do regarding quality control?
 A:"Quality is our soul. We always attach great importance to quality controlling from the beginning to the end. We have many engineers to R&D our products.


4.why choose our products?
A:Good products! Good reputation! Good service! Good price!
